Gallagher

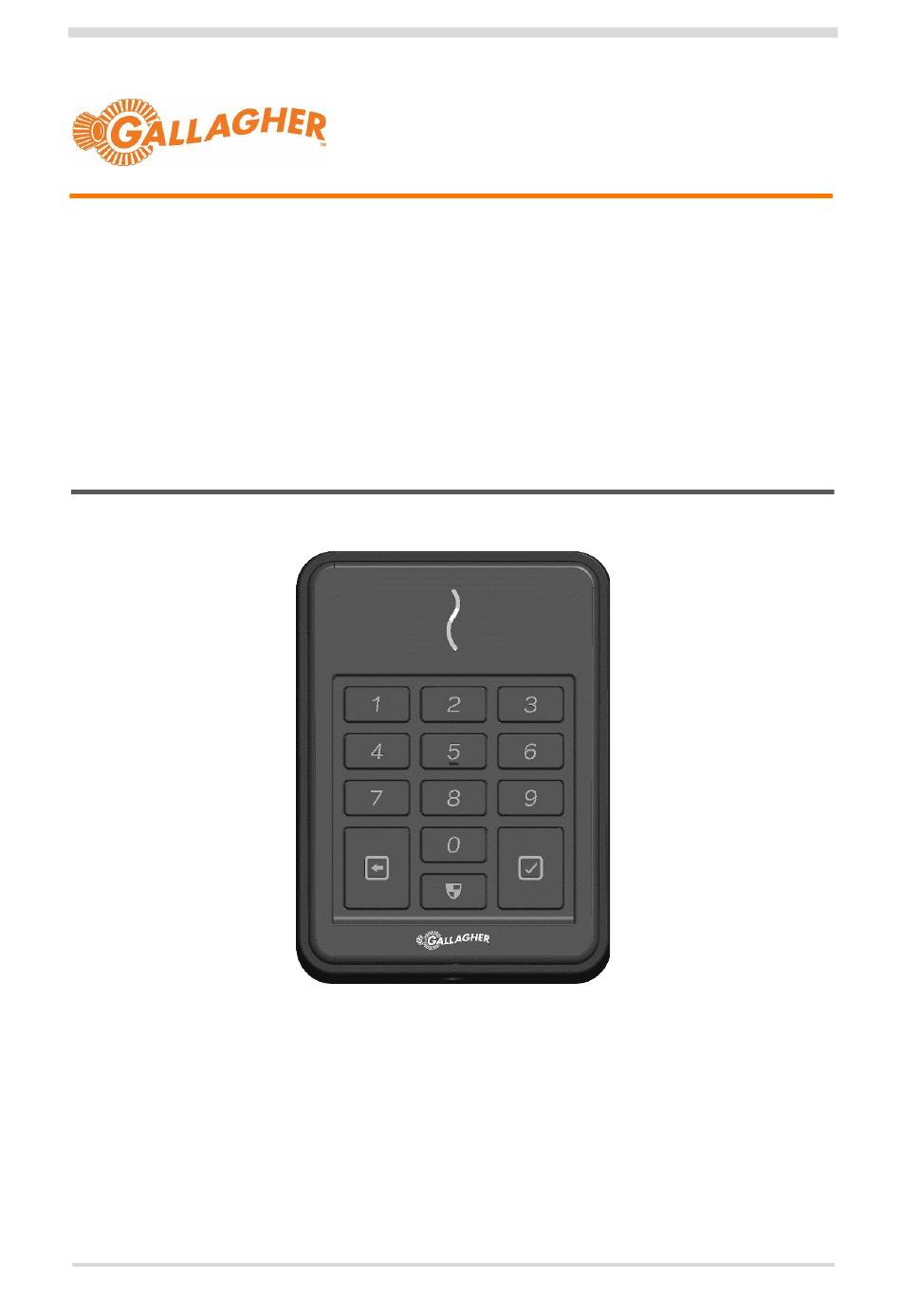

T30 Keypad Reader
Installation Note
T30 Multi Tech Keypad Reader, Black: C300490
T30 Multi Tech Keypad Reader, White: C300491
T30 MIFARE® Keypad Reader, Black: C300495
T30 MIFARE® Keypad Reader, White: C300496
3E5199 Gallagher T30 Reader Installation Note| Edition 7 | May 2023
Copyright © Gallagher Group Limited
Page 1
Advertisement
Table of Contents
Related Manuals for Gallagher T30
Summary of Contents for Gallagher T30
- Page 1 T30 Multi Tech Keypad Reader, Black: C300490 T30 Multi Tech Keypad Reader, White: C300491 T30 MIFARE® Keypad Reader, Black: C300495 T30 MIFARE® Keypad Reader, White: C300496 3E5199 Gallagher T30 Reader Installation Note| Edition 7 | May 2023 Copyright © Gallagher Group Limited Page 1...
-
Page 2: Table Of Contents
Although every commercially reasonable effort has been taken to ensure the quality and accuracy of the information, Gallagher Group makes no representation as to its accuracy or completeness and it should not be relied on as such. To the extent permitted by law, all express or implied, or other representations or warranties in relation to the information are expressly excluded. -
Page 3: Introduction
1 Introduction The Gallagher T30 Keypad Reader supports HBUS and is available in two variants. The variant you have purchased determines the available functionality and supported technologies for the reader. Variants C300490 and C300491 support Gallagher mobile credentials, using Bluetooth® low energy technology. - Page 4 Gallagher Controller 6000, connect the supplied on-board termination jumpers to the Controller. To terminate the Gallagher T30 Keypad Reader, connect the orange (termination) wire to the green (HBUS A) wire. Termination is already included at the HBUS Module, (i.e. each HBUS port is permanently terminated at the module).
-
Page 5: Distance Between Readers
If other cable types are used, operating distances and performance may be reduced depending on the cable quality. • The recommendation for optimal performance is up to 20 T30 Keypad Readers can be connected to one Controller 6000. 3 Distance between readers The distance separating any two proximity readers must not be less than 200 mm (8 in) in all directions. -
Page 6: Installation
When securing the bezel to a vertical, rectangular flush box, use the 6-32 UNC screws provided. When securing the bezel to a BS 4662 British Standard square flush box, use the M3.5 screws provided. 3E5199 Gallagher T30 Reader Installation Note| Edition 7 | May 2023 Copyright © Gallagher Group Limited Page 6... - Page 7 5. Connect the reader tail extending from the facia assembly to the building cable. Connect the wires for the HBUS device to interface. An HBUS device connects to a Gallagher Controller 6000, Gallagher 4H/8H Module, a Gallagher HBUS Door Module, or a Gallagher HBUS 8 Port Hub.
- Page 8 9. Configure the reader in Command Centre. Refer to the topic "Configuring an HBUS Keypad Reader" in the Command Centre Configuration Client Online Help. 3E5199 Gallagher T30 Reader Installation Note| Edition 7 | May 2023 Copyright © Gallagher Group Limited...
-
Page 9: Led Indications
T30 Bezel, Silver, Pk 5 C300397 T30 Bezel, Gold, Pk 5 C300398 T30 Spacer, Black, Pk 5 C300318 T30 Spacer, White, Pk 5 C300319 3E5199 Gallagher T30 Reader Installation Note| Edition 7 | May 2023 Copyright © Gallagher Group Limited Page 9... -
Page 10: Technical Specifications
Reader currents verifWoried by UL are provided in the document "3E2793 Gallagher Command Centre UL Configuration Requirements". Gallagher T Series readers are UL humidity tested and certified to 85% and have been independently verified to 95%. Environmental protection and impact ratings are independently verified. - Page 11 UL Installations Please refer to the document "3E2793 Gallagher Command Centre UL Configuration Requirements" for a guide to configuring the Gallagher system to the appropriate UL Standard. Installers must ensure these instructions are followed to ensure the installed system is UL compliant.
-
Page 12: Mounting Dimensions
9 Mounting Dimensions IMPORTANT This picture is not to scale, therefore use the measurements provided. 3E5199 Gallagher T30 Reader Installation Note| Edition 7 | May 2023 Copyright © Gallagher Group Limited Page 12...
