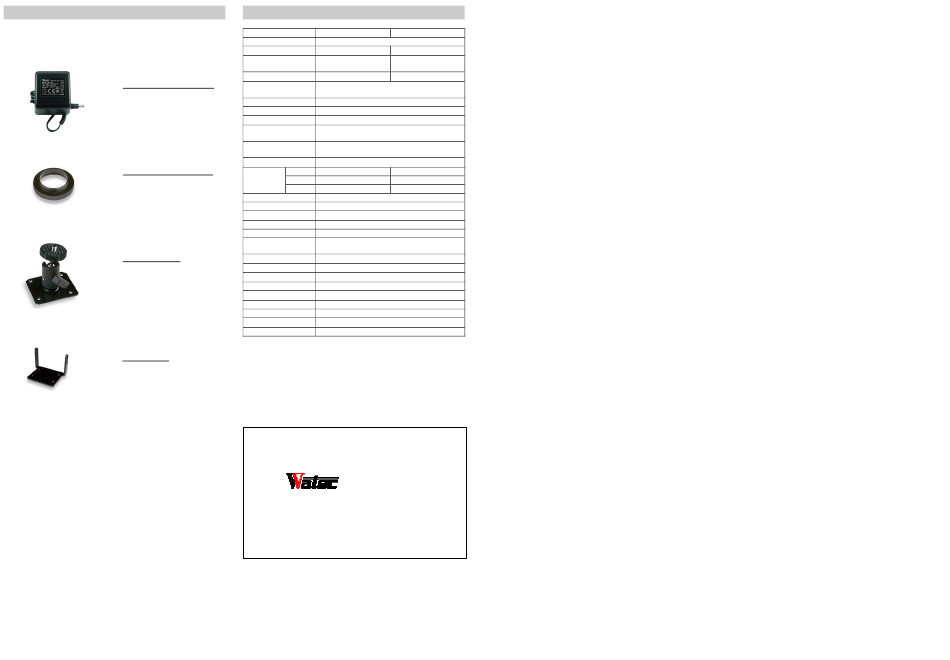

Options
To purchase these options, please contact the distributor or dealer from
which you purchased the WAT-232
AC Adaptor (AD 901-120/230)
The recommended AC adaptor for
the WAT-232 for a constant and
stable power supply.
C-mount Adaptor (34CMA-R)
This lens mount adaptor is used
to convert a CS-mount to a C-
mount.
Mini Stand (MS50)
A convenient stand for the
WAT-232. With this stand, the
camera can be adjusted to any
desired angle.
Bracket (B003)
This bracket is effective for a
stable installation of the WAT-
232.
Specifications
Model
WAT-232 (NTSC)
WAT-232 (PAL)
Pick-up Element
1/3 inch interline transfer CCD image sensor
Number of Total Pixels
811(H)×508(V)
795(H)×596(V)
Number of
768(H)×494(V)
752(H)×582(V)
Effective Pixels
Unit Cell Size
6.35μm(H)×7.4μm(V) 6.5μm(H)×6.25μm(V)
Ye, Cy, Mg, and G complementary
Imaging system
color mosaic filters on chip
Sync. System
Internal
Scanning System
2:1 interlace
Video Output
Composite, Y/C: 1.0 V(p-p) 75Ω (Unbalanced)
Composite : More than 450TVL (Center)
Resolution (H)
iY/C : More than 480TVL (Center)
Color : 0.1 lx.
F1.2
Minimum Illumination
Monochrome : 0.006 lx. F1.2
More than 50dB (AGC=8dB, γ=1.0)
S/N
OFF
1/60 sec.
1/50 sec.
AE Mode
FL
1/100 sec.
1/120 sec.
EI
1/60-1/100000 sec.
1/50-1/100000 sec.
White Balance
ATW, PWB
AGC
8-36dB
γ≒0.45
Gamma Characteristics
Video Level
100IRE / 75IRE
Lens-iris
Video / DC (EIAJ arrangement, Auto-select)
Back Light
ON/OFF
Compensation
Power Supply
DC+12V±10%
Electric Power
1.86W (155mA)
Operating Temperature
-10 - +40℃ (Without condensation)
Operating Humidity
Less than 95% RH
-30 - +70℃ (Without condensation)
Storage Temperature
Storage Humidity
Less than 95% RH
Lens Mount
CS-mount
Size
43.5(W)×44(H)×67(D) mm
Weight
Approx. 145g
Design and specifications are subject to change without notice.
•
Watec is not responsible for any inconvenience or the attendant damages
•
to the video and monitoring recording equipment caused by misuse, mis-
operation or improper wiring of our equipment.
If for any reason the WAT-232 does not work properly, or if you have any
•
questions regarding installation or operation, please contact the
distributor or dealer from which it was purchased.
Contact information
Watec Co., Ltd.
Watec Co., Ltd.
Watec Co., Ltd.
Watec Co., Ltd.
Add.:
254-2 Nihonkoku, Daihoji, Tsuruoka- Shi,
Yamagata-Ken, 997-0017 Japan
TEL:
+81-235-23-4400 FAX: +81-235-23-4409
Email: info-o@watec.co.jp
URL:
http://www.watec.net
1243Z00-Y2000005
