Summary of Contents for Ezviz RE7P

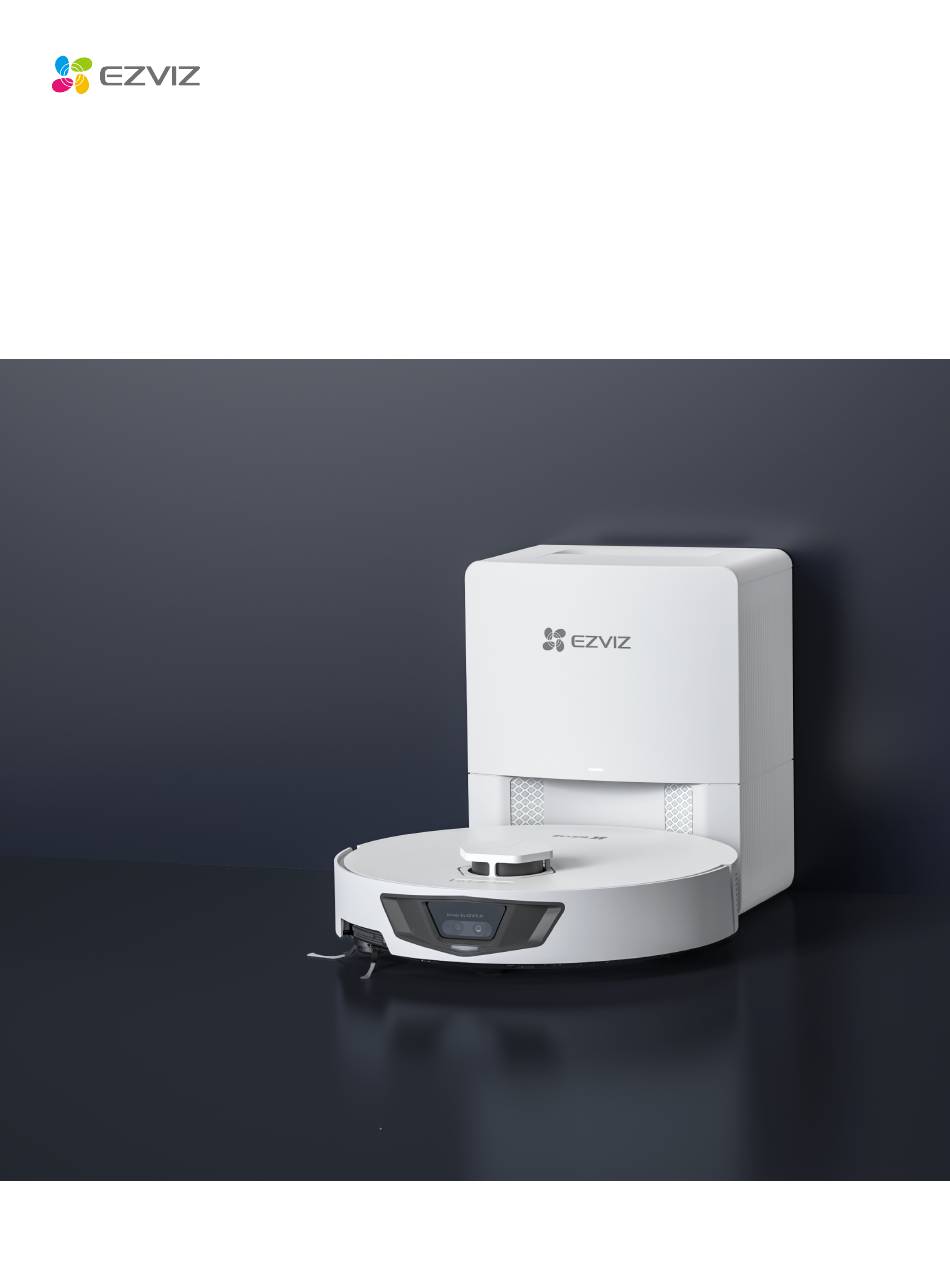

  • Page 1 RE7P Robot Vacuum Cleaner...
  • Page 2 OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
  • Page 3: Table Of Contents

    4� Install Mop Cloth ������������������������������������������������������������������������������������������������������������������������������������������ 6 5� Add Clean Water ������������������������������������������������������������������������������������������������������������������������������������������� 7 6� Charging������������������������������������������������������������������������������������������������������������������������������������������������������� 7 7� Get the EZVIZ App ���������������������������������������������������������������������������������������������������������������������������������������� 8 8� Add the Robot to EZVIZ App �������������������������������������������������������������������������������������������������������������������������� 8 9� Use the Camera Sticker(optional) ����������������������������������������������������������������������������������������������������������������� 9 Basic Operations ������������������������������������������������������������������������������������10 1� Mapping ����������������������������������������������������������������������������������������������������������������������������������������������������� 10 2�...
  • Page 4: Overview

    Overview 1� Package Contents Robot Vacuum Cleaner ×1 Base Station ×1 (Hereinafter referred as to “Robot”) High-efficiency Filter ×1 Mop Cloth ×1 * Cleaning Tool ×1 Camera Sticker ×1 Quick Start Guide ×2 Regulatory Information ×1 (Fixed inside the Base Station) •...
  • Page 5: 2� Basics

    2� Basics Robot LED Indicator/ LiDAR Button * Edge Sensor Front Bumper Structured Light RGB Camera Button • Press once: Start/finish spot cleaning Spot Cleaning • Press twice: Enable/disable Child Lock Button • Press and hold for 3s: Robot ready for network configuration •...
  • Page 6 Cliff Sensor ×4 Universal Wheel Side Brush Driving Wheel ×2 Roller Brush Roller Brush Cover Mop Assembly (Mop Bracket and Mop Cloth) Exhaust Air Outlet Filter Box Speaker Charging Contact ×2 Suction Outlet Metal Contacts Dustbin and Water Tank Assembly...
  • Page 7 Dustbin and Water Tank Assembly High-efficiency Filter Rubber Plug Water Tank Suction Inlet Base Station Cleaning Tool Top Cover Dust Bag Compartment Dust Bag Handle Auto-empty Base LED Indicator * Dust Bag Reflective Marker Charging Contacts Vacuum Inlet Name Description Base Station LED White light stays on: Collecting dust Indicator...
  • Page 8: Quick Start Guide

    Quick Start Guide 1� Preparation • Do not use the Robot in an environment with stairs (if unavoidable, use a guardrail). • Remove any obstacles on the floor before use. 2� Connect the Power Supply to the Base Station • It is recommended to place the Base Station on a flat, light colored tile floor instead of a carpet or wooden floor to avoid wetting them.
  • Page 9: 3� Remove Shields

    3� Remove Shields Before use, remove the shields on both sides of the Front Bumper and all protective films on both of the Robot and the Base Station. 4� Install Mop Cloth 1. Flip the Robot over, insert the Mop Cloth into the rail of the Mop Bracket and slide it into place.
  • Page 10: 5� Add Clean Water

    5� Add Clean Water 1. Take out the Dustbin and water tank assembly. 2. Open the rubber plug and add clean water to the water tank. 3. Put the Dustbin and water tank assembly back into the Robot. • Do not add disinfecting water, otherwise the device may be damaged. •...
  • Page 11: 7� Get The Ezviz App

    7� Get the EZVIZ App 1. Connect your mobile phone to Wi-Fi (only 2.4 GHz WiFi is supported). 2. Download and install the EZVIZ App by searching for “EZVIZ” in the App Store or Google Play 3. Launch the App and register an EZVIZ user account.
  • Page 12: 9� Use The Camera Sticker(Optional)

    3. The sticker can be washed and reused. The visual obstacle avoidance is realized through the RGB camera. Covering the lens will affect some of the obstacle avoidance effect. The image processing is done locally and will not be uploaded to EZVIZ Cloud Platform.
  • Page 13: Basic Operations

    The Robot will leave the Base Station to clean the area along the wall, and then clean in a zigzagging way. After cleaning, the Robot will return to the Base Station automatically. • After adding the Robot to your EZVIZ App, select the cleaning mode on the home page of the Robot on your App, and click •...
  • Page 14: Operations On The Ezviz App

    The App interface may be different due to version update, and the interface of the App you installed on your phone shall prevail. Remote Control Cleaning Manual remotely-controlled cleaning is available in EZVIZ App to make the Robot go to the area to be cleaned. Map for Cleaning Map editing (area dividing, area merging, area building, room naming, no-go area, invisible wall), map zoning, carpet display, real-time cleaning route display, and multi-map saving.
  • Page 15: 1� Clean The Dustbin And Water Tank Assembly

    1� Clean the Dustbin and Water Tank Assembly 1. Take out the Dustbin and Water Tank Assembly. 2. Open the top cover of the Dustbin and Water Tank Assembly, remove the Filter out of the Dustbin and pour out the garbage. 3.
  • Page 16: 2� Clean/Replace Mop Cloth

    2� Clean/Replace Mop Cloth 1. Flip the Robot over, gently peel off the Mop Cloth from the Mop Bracket, slide the Mop Cloth out along the rail until it is fully detached. 2. Clean the Mop Cloth with water and let it dry completely. 3.
  • Page 17: 3� Clean The Roller Brush

    3� Clean the Roller Brush 1. Flip the Robot over, pinch the two latches toward the center and lift the Roller Brush cover. Take out the Roller Brush. 2. Take out the Cleaning Tool, clean the Roller Brush and both end of the brush axle. After installing the Roller Brush and its cover, rotate the Roller Brush manually and check if it spins smoothly.
  • Page 18: 5� Clean Universal Wheel

    5� Clean Universal Wheel 1. Flip the Robot over, pull up the Universal Wheel directly by hand. 2. Take out the Cleaning Tool, cut off the tangled hair and remove debris from the Universal Wheel. 6� Clean Driving Wheels Flip the Robot over, take out the Cleaning Tool, cut off the tangled hair and remove debris from the Driving Wheels.
  • Page 19: 7� Clean Sensors And Charging Contacts

    7� Clean Sensors and Charging Contacts Wipe sensors and charging contacts of the Robot by a soft and dry cloth. 8� Replace the Dust Bag 1. Open the top cover of the Base Station, pull up the handle of the Dust Bag to take it out.
  • Page 20: 9� Clean The Dust Channel

    9� Clean the Dust Channel If the Base Station LED Indicator flashes in red after replacing the Dust Bag, please check and clean the dust channel. 1. Disconnect the Base Station, remove the Top Cover of the Base Station and than take out the Dust Bag, and flip it over.
  • Page 21: Faq

    Problem Solution The battery level is low. Place the Robot on the Base Station, ensuring that the charging contacts on the Robot and the Base Station are aligned with each other. After charging for a while, the Robot will be automatically turned on. Startup failure The ambient temperature is too low (below 0°C/32°F) or higher than (above 40°C/104°F).
  • Page 22 The inner wall of the Base Station is dirty Check if the Dust Bag has been damaged and replace it. Overlapped map appeared Delete the current map and build a new one. For additional information about the Robot, please refer to www.ezviz.com/eu.
  • Page 23: Appendix

    Appendix 1� Environmental Precautions The chemical substances contained in the built-in lithium-ion battery of this product may cause environmental pollution. Please remove it before scrapping and send it to a professional battery recycling station for centralized disposal. Steps for removing the battery (the following information is only applicable when discarding the device, not the daily operation instructions): 1.
  • Page 24: 2� Rechargeable Lithium Ion Battery

    2� Rechargeable Lithium ion Battery 1. The battery type of the device: Portable battery. 2. The battery of this device is non-removable, which is risky to remove. Chemical Composition CAS No� Weight (%) Lithium nickel cobalt manganese oxide 346417-97-8 41.3% Graphite 7782-42-5 23.3%...
