Summary of Contents for Ezviz RC3

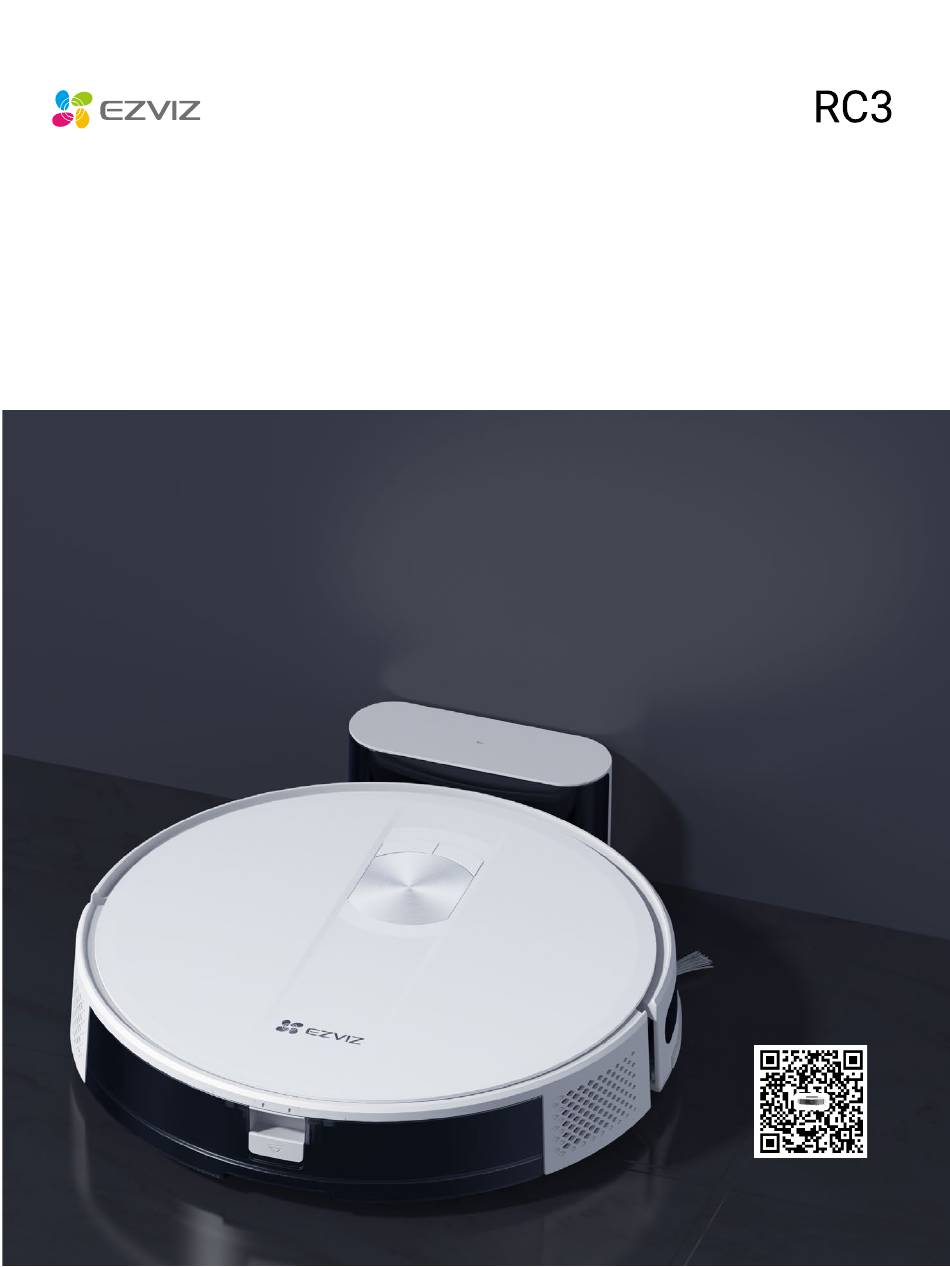

  • Page 1 Robot Vacuum Cleaner...
  • Page 2 • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • When charging, please use the Charging Base CS-RE5-CB offered by EZVIZ. • WARNING: To Reduce The Risk Of Electric Shock - Do not use outdoors or on wet surfaces, commercial or industrial environments.
  • Page 3 • WARNING: To Reduce The Risk Of Electric Shock – Unplug Before Servicing. • The charging base can only charge lithium-ion batteries containing no more than 8 cells with a rated capacity of no more than 2600mAh. • The charging base can not be charged to non-rechargeable batteries. PROPER USE OF THE DEVICE • The device is only used for cleaning the floor of the home environment, and should not be used in outdoor environment (such as open balconies),...
  • Page 4 • Don’t burn the device under any circumstances, as the battery may cause explosion. • After the RGB camera is contaminated with dust during use, it is recommended to use the air blower to clean the camera, or use a paper towel and soft dry cloth to wipe and clean, don’t use rough or hard materials, so as to avoid scratches on the glass surface of the vision module.
  • Page 5 For more information see: www.recyclethis.info Technical Parameters Direct current Alternating current For indoor use. Before charging, read the instructions. Robot Model CS-RC3-TWT2, CS-RC3-TWT5 Overall Dimension 345×345×78.5 mm Weight Approx. 2.83kg Battery Capacity 2,600 mAh Battery Rated Voltage 14.4 V...
  • Page 6 INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ’S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT.
  • Page 7: Table Of Contents

    Table of Contents Overview ��������������������������������������������������������������������������������������������������7 Package Contents��������������������������������������������������������������������������������������������������������������������������� 7 Basis ���������������������������������������������������������������������������������������������������������������������������������������������� 8 Quick Start Guide �����������������������������������������������������������������������������������12 Preparation ����������������������������������������������������������������������������������������������������������������������������������� 12 Install the Charging Base �������������������������������������������������������������������������������������������������������������� 12 Connect the Power Supply to the Charging Base ��������������������������������������������������������������������������� 13 Place the Robot ���������������������������������������������������������������������������������������������������������������������������� 14 Charging ��������������������������������������������������������������������������������������������������������������������������������������� 14 Power On/off ��������������������������������������������������������������������������������������������������������������������������������...
  • Page 8: Overview

    Overview Package Contents Robot Vacuum Cleaner *1 (hereinafter referred as to “Robot”) Side Brush *2 High-performance Filter *2 Charging Base*1 (One has pre-installed in the Robot) (One has pre-installed in the Robot) Remote Control *1 Power Adapter *1 Cleaning Tool *1 (AAA battery *2 included) Quick Start Guide *2 Regulatory Information *1...
  • Page 9: Basis

    Basis Robot * Recharge Button *Recharge Button Microphone Microphone * Cleaning/On-off Button *Cleaning/On-off Button Side Brush Side Brush Recharge Sensor Recharge Sensor Front Bumper Front Bumper Button Recharge Button Press once: Back to charge • Press once: Start cleaning Cleaning/On-off Button •...
  • Page 10 Universal Wheel Universal Wheel Side Brush Side Brush Charging Electrode*2 Charging Electrode *2 Edge Sensor *3 Edge Sensor*3 Drive Wheel *2 Drive Wheel *2 Main Brush Main Brush Main Brush Cover Main Brush Cover Infrared Receiving Terminal Infrared Receiving Terminal Filter Box Filter Box Cleaning Tool...
  • Page 11 Charging Base Charging Base Indicator Charging Base Indicator Name Description On: Connected to a power supply Charging Base Indicator Off: Powered off/correctly connected with the Charging Base Remote Control Power Power Fixed-point Vacuum Fixed-point Vacuum Recharge Recharge Start/pause Start/pause Suction Regulation Suction Regulation Time Settings Time Settings...
  • Page 12 Please ensure that the Robot will response with a beep after you operate the remote control. Name Description Press once when the Robot is standby, it will sleep. Under the Sleep Mode, the Robot will enter a low energy-comsumption state, you can still use the remote control to operate it.
  • Page 13: Quick Start Guide

    Quick Start Guide Preparation Try to avoid using in the environment with stairs (if must, please set up a guardrail), and try to remove the obstacles on the ground before use. Install the Charging Base Connect the supply cord into the power socket on the Charging Base. Please be careful to organize the supply cord.
  • Page 14: Connect The Power Supply To The Charging Base

    Connect the Power Supply to the Charging Base Install the Charging Base in a location that the Robot can easily access. It is recommended to place the Charging Base against a wall, and on a hard-level surface rather than on rugs or carpets.
  • Page 15: Place The Robot

    Place the Robot Place the Robot on the Charging Base and align it with the Charging Electrodes. When the charging base indicator on the Charging Base goes out and the power indicator slow-flashes, charging will begin. Charging You have two ways to charge the Robot. Automatic recharging: the Robot will automatically return for recharging after the cleaning task is completed.
  • Page 16: Power On/Off

    Power On/off Power on: • Press and hold the button for 4s on the operation panel. • After the Robot is docking to the Charging Base, it will be powered on automatically. Power off: When the Robot is not in the Charging Base, press and hold the button for 4s on the operation panel.
  • Page 17: Pause Cleaning

    Before performing cleaning and maintenance tasks on the Robot, turn the Robot OFF and unplug the supply cord. • A multi-function Cleaning Tool is provided for easy maintenance.Handle with care, this Cleaning Tool has sharp edges. • EZVIZ manufactures various replacement parts and fittings. Please visit www.ezviz.com for more information on replacement parts.
  • Page 18: Dump The Dust Box

    Dump the Dust Box Press the Dust Box Taking-out Button to pull out the Dust Box, and then pour the dirt into dust bin. Remove the Filter out of the filter box. Clean the Filter with Cleaning Tool and flush the Filter and Dust Box throughly with water as necessary, and then all cleaned elements shall be thoroughly dried. Do not clean with hot water or detergent.
  • Page 19: Clean The Main Brush

    Clean the Main Brush Press the buckles to take out the Main Brush cover and the Main Brush. Use the blade of the Cleaning Tool to cut off the hair entangled on the Main Brush and remove the roller at one end of the Main Brush to clean it, and then re-install the Main Brush into place.
  • Page 20: Clean/Replace The Side Brush

    Clean/Replace the Side Brush Pull the side brush out and then clean the foreign matters like hairs. Pull out the old side brush and then press the new one into the position.
  • Page 21: Clean Universal Wheel

    Clean Universal Wheel Pull up the Universal Wheel directly by hand then clean it with the hidden Cleaning Tool and then re-install it into place. Clean the Universal Wheel with the hidden Cleaning Tool. Clean Sensors Wipe dust off from the sensors with a soft dry cloth.
  • Page 22: Clean The Charging Electrode

    Clean the Charging Electrode Wipe off the dust on the Charging Electrodes with a soft dry cloth.
  • Page 23: Environmental Precautions

    Environmental Precautions The chemical substances contained in the built-in lithium-ion battery of this product may cause environmental pollution. Please remove it before scrapping and send it to a professional battery recycling station for centralized disposal. Steps for removing the battery (the following information is only applicable when discarding the device, not the daily operation instructions): 1.
  • Page 24: Faq

    The power indicator will flash in red and the buzzer will give a beep in case that there is an abnormality in the operation of the Robot. Please check the table below to solve your problems. Problem Solution Make sure the Robot is connected to power supply. The Robot cannot start Make sure the battery is fully charged. If the problem persists, please reset the Robot. Check whether the Robot is stuck or blocked by obstacles.
  • Page 25 The Remote Control works with infrared rays and the infrared receiving terminal of the Robot is located on the front of it. Please aimed at the front of the Robot for remote control operations. For additional information about the Robot, please refer to www.ezviz.com/eu.
  • Page 26: List Of Faults

    • I f the error persists, please contact our Service Department. If the corresponding faults cannot be eliminated by referring to the above methods, please press and hold for 15s, and the Robot will restore to factory settings automatically. If still not eliminated, please refer to www.ezviz.com/eu.
  • Page 27: Appendix

    Appendix Rechargeable Lithium ion Battery 1. The battery type of the Robot: Portable battery. 2. The battery of this Robot is non-removable, which is risky to remove. Chemical Composition Chemical Formula CAS No� Weight (%) Lithium transition metal oxide 182442-95-1 37.3% Carbon(graphite) 7782-42-5...
