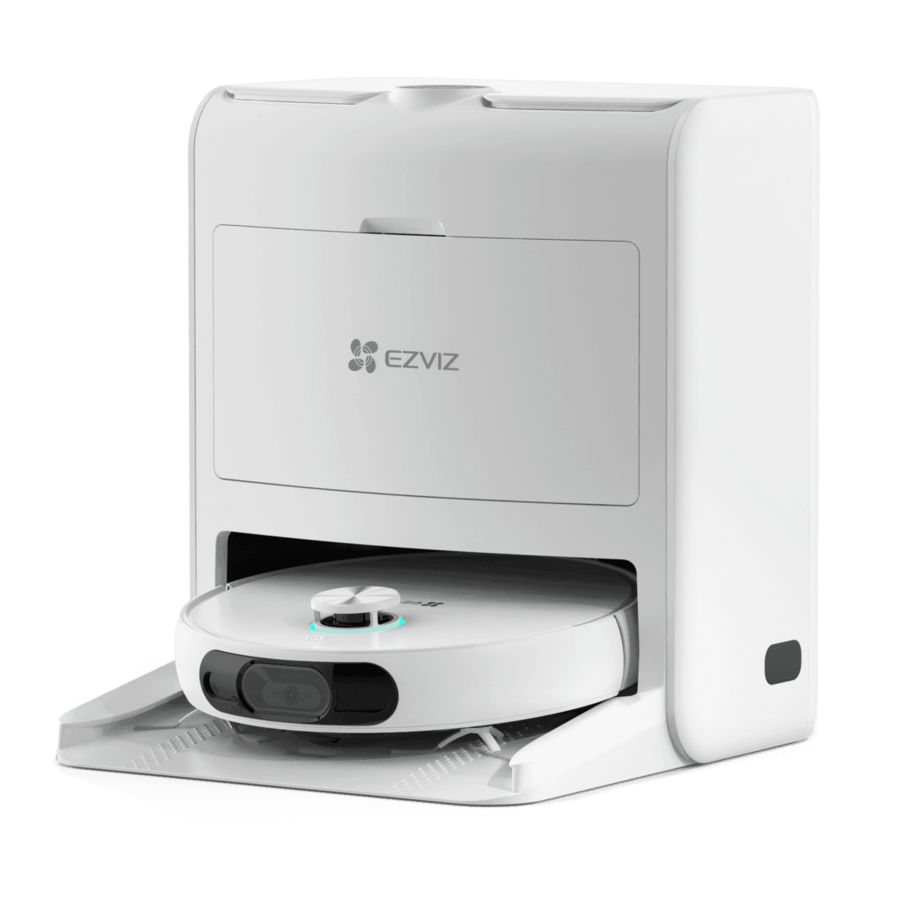

EZVIZ RS2 - Robot Vacuum & Mop Combo Manual

Overview

Package Contents

The power cord's appearance is subject to the actual one you have bought.

Basis

	Start/Pause	Press once: start/pause task. Press and hold for 2 seconds: end the task.
	Sink Clean	Press once: the robot exits the docking station and the docking station sprays water in the cleaning sink and waits for cleaning. Press again: the sewage will be drained.
	Mode	Press once: switch cleaning mode (vacuum before mop, vacuum while mop, vacuum only, mop only, mop cloth cleaning, mop cloth drying).
	Exit/Recall	Press once: the robot exits/returns to the docking station.
	Child lock unlocking/locking	Press and hold them for 2 seconds at the same time: unlock/lock the child lock. When the child lock function is enabled, pressing the key on the operation panel is invalid (you need to enable the child lock function on the EZVIZ App first).

Quick Start Guide

Preparation
Try to avoid using in the environment with stairs (if must, please set up a guardrail), and try to remove the obstacles on the ground before use.

Connect the Power Supply to the Docking Station
Select a proper location, place the docking station on a horizontal floor against the wall, connect the docking station and the power socket with the power cord, and the docking station will start automatically (it is recommended to place the docking station on a flat light colored tile floor instead of a carpet).

In order to avoid external heat damage to the docking station, please do not place it next to radiators, heaters, fireplaces, etc.

Add Clean Water
Remove the protective bags of the clean water tank and the used water tank, fill the clean water tank with clean water, and then install them back.

Remove Shields

Install Side Brushes and Mop Assembly
Install the side brushes and mop assembly at the bottom: align the side brushes with the point as shown in the figure and press them down. Hearing a "click" indicates that they are installed in place; Align the mop assembly with the magnetic point.

Get the EZVIZ App

EZVIZ App

Add the Robot to EZVIZ App

If Wi-Fi connection failed, or you want to connect the robot to another Wi-Fi, you need to press and hold the reset button for 4 seconds, and then the robot will be restarted and you can add the robot to EZIVZ App again.

Place the Robot
Place the robot in front of the docking station, and then press on the operation panel. The robot will enter the docking station and start charging.

First Cleaning
You have two ways to operate:

• Press to select the cleaning mode, and press to work.



Use the Camera Sticker (optional)
A camera sticker is provided if you need to cover the camera.

1. Tear off the protective film.


2. Clean and wipe up the glass of the camera with wet tissue. Stick and press the camera sticker to the glass of the camera and make sure it sticks firmly.


3. The sticker can be washed and reused.


The visual obstacle avoidance function of this product requires the camera to be on as one of the prerequisites, and the image processing involved is done locally on the product and is not uploaded to EZVIZ CloudPlay. You can mask the camera to reject the function as needed. The product package comes with a camera sticker for masking, which is electrostatically adsorbed.

Operations on the EZVIZ App

The App interface may be different due to version update, and the interface of the App you installed on your phone shall prevail.

Map for Cleaning
Map editing (segmentation, merging, area building, room naming, No-go area, invisible wall, rotation), map zoning, carpet display, real-time cleaning route display, and multi-map saving.

Cleaning Method
General cleaning, personalized cleaning, scheduled cleaning, designated room cleaning, and area cleaning.

Cleaning Settings
Suction setting, water volume setting, cleaning sequence setting, carpet pressurization mode, supplementary sweeping for carpet, and drying mop cloth time setting.

Housekeeping Function
Make an appointment for patrol inspection, fixed-point motion, take photos/videos for patrol inspection, and voice intercom.

Information Display
Pets-caring time, cleaning history, patrol history, equipment power, consumables and maintenance.

More Features
Firmware upgrade, volume adjustment, Do Not Disturb mode, night vision light compensation, etc.

Routine Maintenance

To maintain the best condition of the device, please maintain the device and replace parts with following frequencies:

Replace Mop Cloth

(Please note that the mop cloth should never cover the center part of the mop bracket.)

Dump the Dust Box


Press and hold the white button on the dust box, the dust box cover will open automatically, and the garbage will be poured out.

Clean the Docking Station
Use cleaning tool or rags to clean the interior of the docking station, the cleaning sink, and the water sensor on the left corner.

Clean the Clean Water Tank
Take out the clean water tank, open the water tank cover, remove the water pipe to the side and remove the filter cotton for cleaning. Install the filter cotton and install the water pipe into the buckle after cleaning.

Clean the Used Water Tank

Clean the Main Brush

1. Press the button at the end of the cleaning tool and rotate it at the same time, take out the hidden hook knife, then clean the main brush, and then install the main brush back.



Clean Important Parts
Wipe and clean the cliff sensors, material sensor, magnetic points, charging contacts, RGB camera, obstacle sensors, edge sensor and infrared receiving terminal with soft dry cloth.

Clean Wheels
Taken out the universal wheel directly by hand then clean it with the hidden hook knife.
Clean the driven wheels with the hidden hook knife.

Replace the Side Brushes

Environmental Precautions

The chemical substances contained in the built-in lithium-ion battery of this product may cause environmental pollution. Please remove it before scrapping and send it to a professional battery recycling station for centralized disposal.
Steps for removing the battery (the following information is only applicable when discarding the device, not the daily operation instructions):

1. Let the robot run to a low power state that cannot be cleaned without touching the docking station.
2. Turn off the robot and remove the side brushes and mop assembly.
3. Turn the robot over and remove the 13 screws at the bottom, as shown in the figure.
4. Remove the battery cover.
5. Grab the black sticker with the arrow tip and remove the battery.

FAQ

For additional information about the device, please refer to www.ezviz.com/eu.
