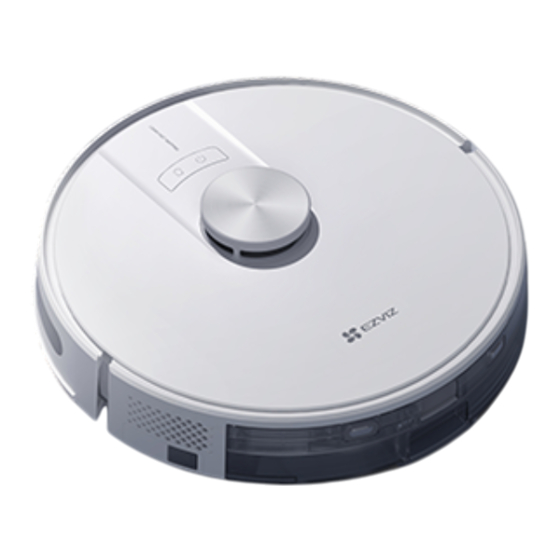

Ezviz RE4C Manual

Ezviz RE4C Manual

Robot vacuum cleaner

Advertisement

Quick Links

Robot Vacuum Cleaner

Advertisement

loading
Need help?

Need help?

Do you have a question about the RE4C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ezviz RE4C

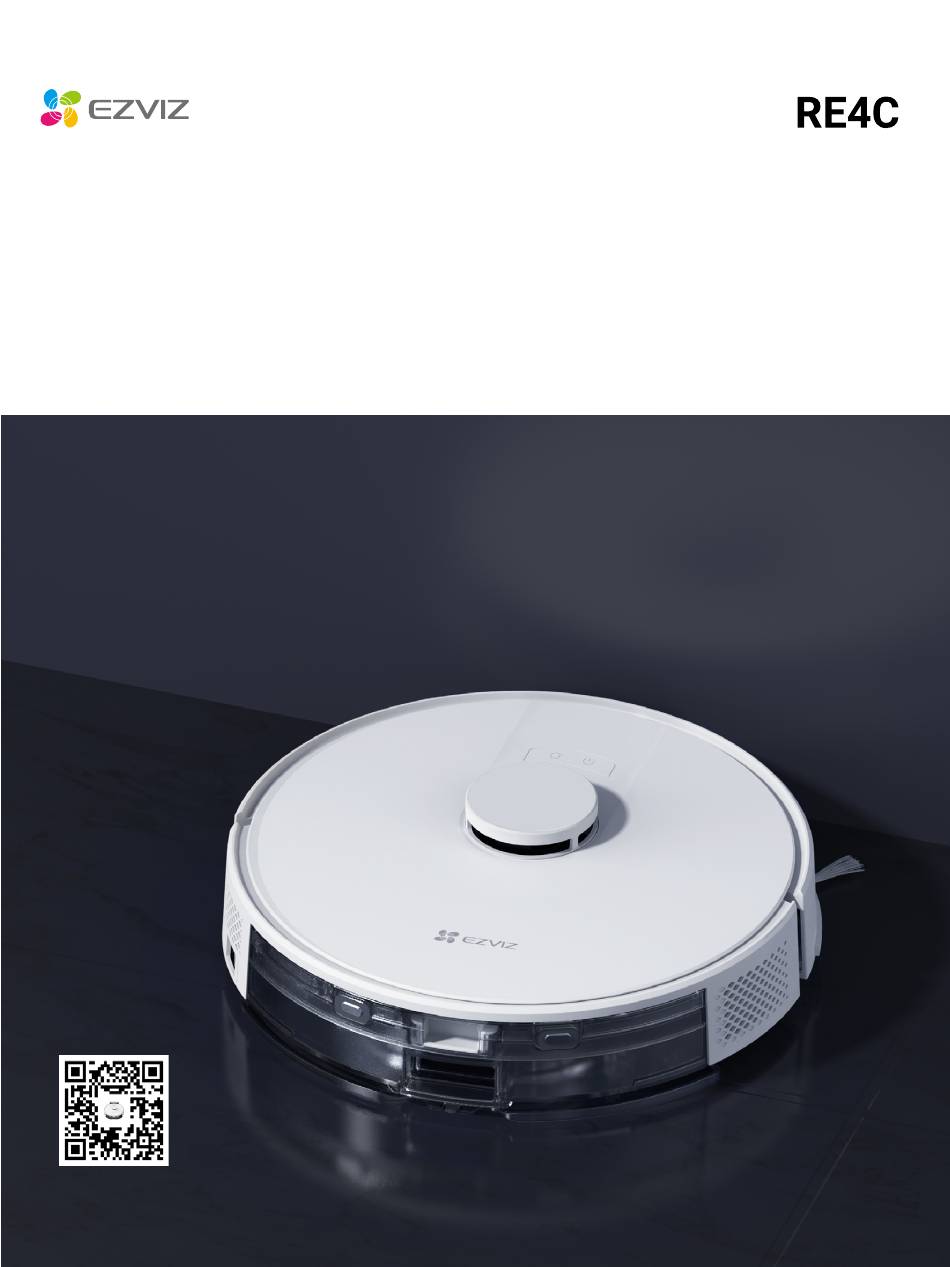

  • Page 1 Robot Vacuum Cleaner...
  • Page 2: Product Safety Precautions

    • When charging, please use the Charging Base CS-RE5-CB offered by EZVIZ. • WARNING: To Reduce The Risk Of Electric Shock - Do not use outdoors or on wet surfaces, commercial or industrial environments.
  • Page 3 • Do not look directly at the optical interface when the device is working. • Class 1 laser, output 1.5mW, wavelength 760nm~810nm, IEC 60825- 1:2014. • This product contains a laser with a laser class 1, which is safe under reasonably foreseeable circumstances.
  • Page 4 • Don’t use the product to absorb large stones, waste paper and other items that may block the product. When the suction port is blocked, please clean the product in time and remove the dust, cotton, hair, etc. at the suction port. •...
  • Page 5: Regulatory Information

    DECLARATION OF CONFORMITY Hereby, Hangzhou Ezviz Software Co., Ltd declares that the radio equipment type [ CS-RE4C-YWT2 ] is in compliance with Directive 2014/53/EU. The full text of the DECLARATION OF CONFORMITY is available at the following web link: https:// www.ezviz.com/page/declaration-of-conformity.
  • Page 6 Robot Model CS-RE4C-YWT2 Overall Dimension 345x345x95mm Battery Capacity 2,600 mAh Weight Approx. 3.09kg Battery Rated Voltage 14.4V Rated Input Rated Power Charging Base Model CS-RE5-CB Rated Input Voltage 100-240V~, 50/60Hz (Power Adapter) Rated Output...
  • Page 7 INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ’S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT.
  • Page 8: Table Of Contents

    Charging ��������������������������������������������������������������������������������������������������������������������������������������� 15 Add Clean Water ��������������������������������������������������������������������������������������������������������������������������� 16 Install Mop Assembly ������������������������������������������������������������������������������������������������������������������� 17 Get the EZVIZ App ������������������������������������������������������������������������������������������������������������������������ 18 Add the Robot to EZVIZ App ���������������������������������������������������������������������������������������������������������� 18 Start Cleaning ������������������������������������������������������������������������������������������������������������������������������� 19 Operations on the EZVIZ App ������������������������������������������������������������������19 Basic Operations ������������������������������������������������������������������������������������20 Power On/off ��������������������������������������������������������������������������������������������������������������������������������...
  • Page 9 List of Faults ������������������������������������������������������������������������������������������30 Appendix ������������������������������������������������������������������������������������������������31 Environmental Precautions ����������������������������������������������������������������������������������������������������������� 31 Rechargeable Lithium ion Battery ������������������������������������������������������������������������������������������������� 32 INFORMATION FOR PRIVATE HOUSEHOLDS ��������������������������������������������������������������������������������� 32...
  • Page 10: Overview

    Overview Package Contents Robot Vacuum Cleaner *1 (hereinafter referred as to “Robot”) Side Brush *2 High-performance Filter *2 Charging Base*1 (One has pre-installed) (One has pre-installed) Power Adapter *1 Cleaning Tool *1 Mop Assemblly *1 Mop Cloth *1 Quick Start Guide *2 Regulatory Information *1 The device’s appearance is subject to the actual one you have bought.
  • Page 11: Basis

    Basis Robot Edge Sensor LDS Lidar Clean/On-off Button Recharge Button Microphone Power Switch Side Brush Recharge Sensor *3 Front Bumper Power Switch For the first use, please toggle the power switch from “ O ” to “ I ”. Button Recharge Button Press once: Back to charge •...
  • Page 12 Universal Wheel Side Brush Charging Electrode *2 Cliff Sensor *3 Drive Wheel *2 Main Brush Main Brush Cover Mop Cloth Mop Bracket Mop Assembly Infrared Receiving Terminal Filter Box 2-in-1 Dustbin&Water Tank Taking-out Button Suction Outlet Power Switch Buckle *2 Mop Assembly Water Outlet...
  • Page 13 Suction Inlet High-performance Rubber Plug Filter Charging Base Charging Base Indicator Charging Electrode *2 Name Description On: Connected to a power supply Charging Base Indicator Off: Charging for now...
  • Page 14: Quick Start Guide

    Quick Start Guide Preparation Try to avoid using in the environment with stairs (if must, please set up a guardrail), and try to remove the obstacles on the ground before use. Install the Charging Base Connect the supply cord into the power socket on the Charging Base. Please be careful to organize the supply cord.
  • Page 15: Connect The Power Supply To The Charging Base

    Connect the Power Supply to the Charging Base Install the Charging Base in a location that the Robot can easily access. It is recommended to place the Charging Base against a wall, and on a hard-level surface rather than on rugs or carpets.
  • Page 16: Charging

    Charging 1. For the first use, please toggle the power switch to I to turn on the Robot. 2. Place the Robot on the Charging Base and align it with the Charging Electrodes. When the charging base indicator on the Charging Base goes out and the power indicator slow-flashes, charging will begin.
  • Page 17: Add Clean Water

    3. Automatic recharging: the Robot will automatically return for recharging after the cleaning task is completed, or you can do by following figure. Short press when pausing to begin automatic recharging. · The Robot needs to be fully charged ( approximately 5 hours) to ensure a normal operation.
  • Page 18: Install Mop Assembly

    Open the rubber plug and add clean water to the water tank. · Please do not add disinfecting water to avoid corrosion of Robot. · Please wipe the charging contact on the 2-in-1 dustbin and water tank after water added. Install Mop Assembly 1.
  • Page 19: Get The Ezviz App

    The actual process may vary due to ongoing App updates. Follow the instructions provided in the App. Add the Robot to EZVIZ App 1. Log in to your account through EZVIZ App, tap the device adding icon and then the QR code scanning interface will be displayed.
  • Page 20: Start Cleaning

    Remote Control Cleaning Manual remotely-controlled cleaning is available in EZVIZ App to make the Robot go to the area to be cleaned. Map for Cleaning Map editing (area dividing, area merging, area building, room naming, no-go area, invisible wall), map zoning, carpet display, real- time cleaning route display, and multi-map saving.
  • Page 21: Basic Operations

    Basic Operations Power On/off Before turn on/off the Robot, please remove it from the Charging Base. Power on: Press the button once on the operation panel. Power off: When the Robot is not in the Charging Base, press and hold the button for 4s on the operation panel.
  • Page 22: Routine Maintenance

    Before performing cleaning and maintenance tasks on the Robot, turn the Robot OFF and unplug the supply cord. • A multi-function Cleaning Tool is provided for easy maintenance.Handle with care, this Cleaning Tool has sharp edges. • EZVIZ manufactures various replacement parts and fittings. Please visit www.ezviz.com for more information on replacement parts.
  • Page 23: Dump The Dustbin

    Dump the Dustbin Take the 2-in-1 dustbin & water tank out. Open the top cover of the dustbin and pour out the garbage. Remove the Filter out of the dustbin.
  • Page 24: Clean/Replace Mop Assembly

    Clean the Filter with Cleaning Tool and flush the Filter and Dustbin throughly with water as necessary, and then all cleaned elements shall be thoroughly dried. Do not clean with hot water or detergent. Clean/replace Mop Assembly...
  • Page 25: Clean Water Tank

    Clean Water Tank When not use the Robot for a long time, please empty the water tank. Clean the Main Brush Press the buckles to take out the Main Brush cover and the Main Brush.
  • Page 26: Clean/Replace The Side Brush

    Use the blade of the Cleaning Tool to cut off the hair entangled on the Main Brush and remove the roller at one end of the Main Brush to clean it, and then re-install the Main Brush into place. Clean/Replace the Side Brush Pull the side brush out and then clean the foreign matters like hairs.
  • Page 27: Clean Universal Wheel

    Pull out the old side brush and then press the new one into the position. Clean Universal Wheel ① Pull up the Universal Wheel directly by hand then clean it with the hidden Cleaning Tool and then re-install it into place. ②...
  • Page 28: Clean Sensors

    Clean Sensors Wipe dust off from the sensors with a soft dry cloth. Clean the Charging Electrode Wipe off the dust on the Charging Electrodes with a soft dry cloth.
  • Page 29: Faq

    When any abnormality occurs to the Robot in operation, the power indicator will blink fast in red and voice prompt will be provided. Please consult the following table for troubleshooting: Problem Solution Make sure the Robot is connected to power supply. Make sure the battery is fully charged.
  • Page 30 No water released during cleaning will hear related voice promp. Check whether the water outlet is blocked. Overlapped map appeared Delete the current map and try to build a new one by press For additional information about the Robot, please refer to www.ezviz.com.
  • Page 31: List Of Faults

    Robot after cleaning. Error 12: Operation abnormal. Please check whether the power switch is Please turn on the power switch. turned on. If the corresponding faults cannot be eliminated by referring to the above methods, please refer to www.ezviz.com/eu.
  • Page 32: Appendix

    Appendix Environmental Precautions The chemical substances contained in the built-in lithium-ion battery of this product may cause environmental pollution. Please remove it before scrapping and send it to a professional battery recycling station for centralized disposal. Steps for removing the battery (the following information is only applicable when discarding the device, not the daily operation instructions): 1.Let the Robot run to a low power state that cannot be cleaned without touching the Charging Base.
  • Page 33: Rechargeable Lithium Ion Battery

    Rechargeable Lithium ion Battery 1. The battery type of the Robot: Portable battery. 2. The battery of this Robot is non-removable, which is risky to remove. Chemical Composition Chemical Formula CAS No� Weight (%) Lithium transition metal oxide 182442-95-1 37.3% Carbon(graphite) 7782-42-5 21.0%...
