Ezviz RE5SP Manual

Ezviz RE5SP Manual

Robot vacuum cleaner

Advertisement

Quick Links

RE5SP
Robot Vacuum Cleaner

Advertisement

loading
Need help?

Need help?

Do you have a question about the RE5SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ezviz RE5SP

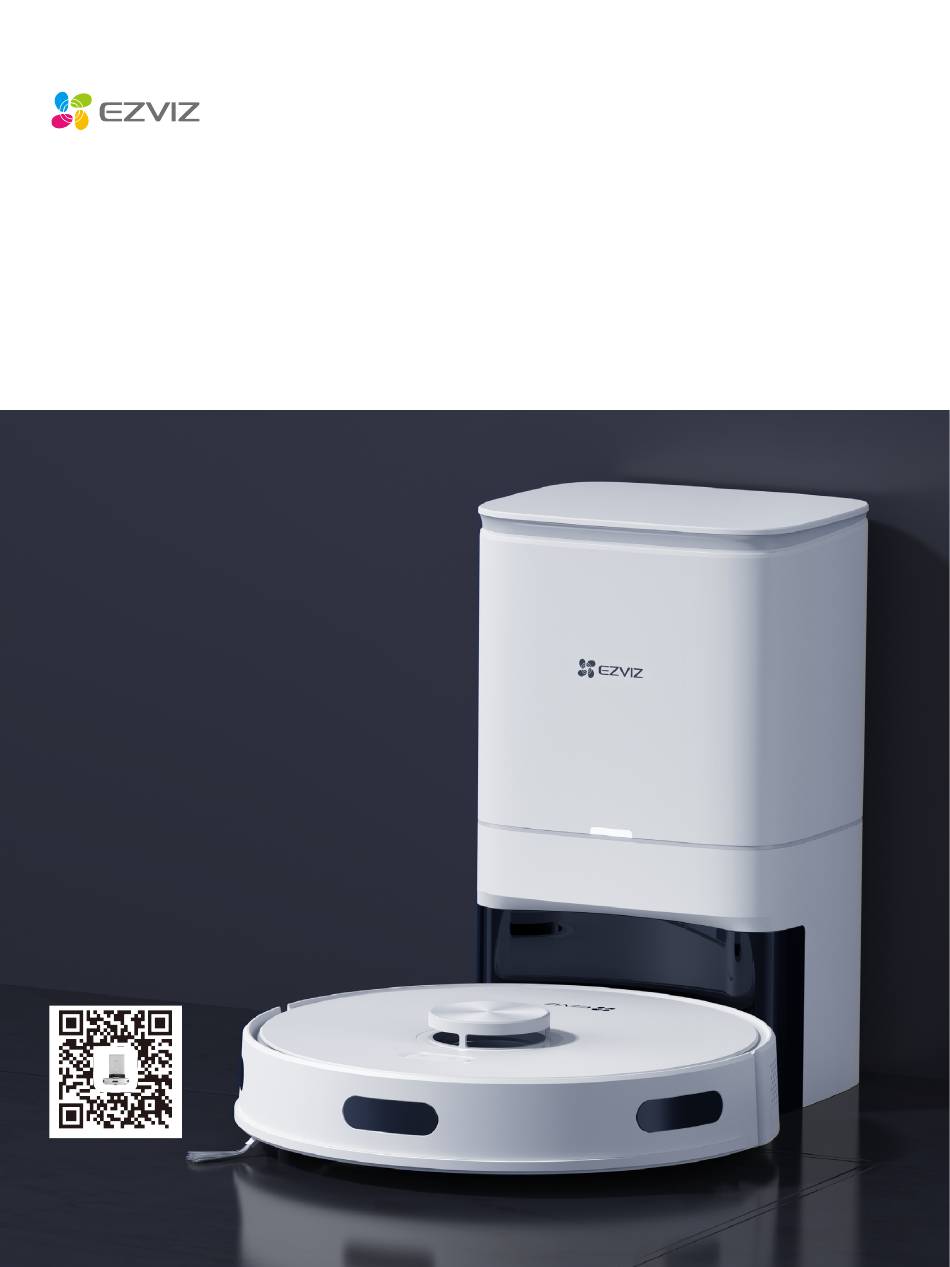

  • Page 1 RE5SP Robot Vacuum Cleaner...
  • Page 2 • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • When charging, please use the Auto-empty Base ZD91 offered by EZVIZ. • WARNING: To Reduce The Risk Of Electric Shock - Do not use outdoors or on wet surfaces, commercial or industrial environments.
  • Page 3 Servicing. • Do not look directly at the optical interface when the device is working. • Class 1 laser, output 1.5mW, wavelength 760nm~810nm, IEC 60825- 1:2014. • This product contains a laser with a laser class 1, which is safe under reasonably foreseeable circumstances.
  • Page 4 toner). Don’t use the device in the area with flammable materials. • Don’t use the device to clean burning items, such as matches, cigarettes and other items that may cause fire. • Don’t use the product to absorb large stones, waste paper and other items that may block the product.
  • Page 5 DECLARATION OF CONFORMITY Hereby, Hangzhou Ezviz Software Co., Ltd declares that the radio equipment type [ CS-RE5SP-TWT2 ] is in compliance with Directive 2014/53/EU. The full text of the DECLARATION OF CONFORMITY is available at the following web link: http://www.
  • Page 6 Robot Model CS-RE5SP-TWT2 Overall Dimension 345x345x95mm Battery Capacity 4,930 mAh Weight Approx. 3.09kg Battery Rated Voltage 14.76V Rated Input 1.5A MAX Rated Power Auto-empty Base Model ZD91 Rated Input Voltage 220-240V~, 50/60Hz Rated Output 1.5A MAX Rated Power 950W Dimensions...
  • Page 7 INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ’S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT.
  • Page 8 Charging ����������������������������������������������������������������������������������������������������������������������������������������� 7 Add Clean Water ����������������������������������������������������������������������������������������������������������������������������� 9 Install Mop Assembly ������������������������������������������������������������������������������������������������������������������� 10 Get the EZVIZ App ������������������������������������������������������������������������������������������������������������������������ 10 Add the Robot to EZVIZ App ���������������������������������������������������������������������������������������������������������� 11 Start Cleaning ������������������������������������������������������������������������������������������������������������������������������� 11 Operations on the EZVIZ App ������������������������������������������������������������������12 Basic Operations ������������������������������������������������������������������������������������12 Power On/off ��������������������������������������������������������������������������������������������������������������������������������...
  • Page 9 FAQ ��������������������������������������������������������������������������������������������������������21 List of Faults ������������������������������������������������������������������������������������������24 Appendix ������������������������������������������������������������������������������������������������25 Environmental Precautions ����������������������������������������������������������������������������������������������������������� 25 Rechargeable Lithium ion Battery ������������������������������������������������������������������������������������������������� 26 INFORMATION FOR PRIVATE HOUSEHOLDS ��������������������������������������������������������������������������������� 26...
  • Page 10 Overview Package Contents Robot Vacuum Cleaner *1 (hereinafter referred as to “Robot”) Side Brush *2 Disposable Dust Bag *2 Auto-empty Base *1 (One has pre-installed) (One has pre-installed) High-performance Filter *2 Cleaning Tool *1 (One has pre-installed) Mop Assembly*1 Mop Cloth *1 Quick Start Guide *2 Regulatory Information *1 The device’s appearance is subject to the actual one you have bought.
  • Page 11 Basis Robot Edge Sensor LDS Lidar Clean/On-off Button Recharge Button Microphone Power Switch Side Brush Recharge Sensor *3 Front Bumper Power Switch For the first use, please toggle the power switch from “ O ” to “ I ”. Button Recharge Button •...
  • Page 12 Universal Wheel Side Brush Charging Electrode *2 Cliff Sensor *3 Drive Wheel *2 Main Brush Main Brush Cover Mop Cloth Mop Bracket Mop Assembly Infrared Receiving Terminal Filter Box 2-in-1 Dustbin&Water Tank Taking-out Button Suction Outlet Power Switch Buckle *2 Mop Assembly Water Outlet...
  • Page 13 Rubber Plug Suction Inlet High-performance Filter Auto-empty Base Top Cover Dust Bag Compartment * Auto-empty Base LED Indicator Recharging and Dust Collection Sensor Electrode Sheet Vacuum Inlet Name Description Auto-empty Base Solid White: under standby mode LED Indicator Off: both of Robot and Auto-empty Base are correctly connected/ the Auto-empty Base is sleeping Solid Red: the Dust Bag is not in place Fast-flashing Red: abnormal state...
  • Page 14 Dust Bag Dust Bag Handle...
  • Page 15 Quick Start Guide Preparation Try to avoid using in the environment with stairs (if must, please set up a guardrail), and try to remove the obstacles on the ground before use. Connect the Power Supply to the Auto-empty Base Install the Auto-empty Base in a location that the Robot can easily access. It is recommended to place the Auto-empty Base against a wall, and on a hard-level surface rather than on rugs or carpets.
  • Page 16 Remove Shields Before use, remove the shields on both sides of the Front Bumper and all protective films on both of the Robot and the Auto-empty Base. Charging 1. For the first use, please toggle the power switch to “ I ” to turn on the Robot.
  • Page 17 2. Place the Robot on the Auto-empty Base and align it with the Charging Electrodes. When the Auto-empty Base Indicator light goes out and the power indicator slow-flashes white, charging will begin. 3. Automatic recharging: the Robot will automatically return for recharging after the cleaning task is completed, or you can do by following figure.
  • Page 18 Add Clean Water Take out the 2-in-1 dustbin & water tank. Open the rubber plug and add clean water to the water tank. Please do not add disinfecting water to avoid corrosion of Robot. · Please wipe the charging contact on the 2-in-1 dustbin and water tank after water ·...
  • Page 19 1. Connect your mobile phone to Wi-Fi (only 2.4 GHz WiFi is supported). 2. Download and install the EZVIZ App by searching for “EZVIZ” in the App Store or Google Play 3. Launch the App and register an EZVIZ user account.
  • Page 20 Add the Robot to EZVIZ App 1. Log in to your account through EZVIZ App, tap the device adding icon and then the QR code scanning interface will be displayed. 2. Press and hold the on the Robot for 4s until the Power indicator start flashing white and you will hear a voice prompt “start network configuration“.
  • Page 21 Remote Control Cleaning Manual remotely-controlled cleaning is available in EZVIZ App to make the Robot go to the area to be cleaned. Map for Cleaning Map editing (area dividing, area merging, area building, room naming, no-go area, invisible wall), map zoning, carpet display, real- time cleaning route display, and multi-map saving.
  • Page 22 Before performing cleaning and maintenance tasks on the Robot, turn the Robot OFF and unplug the Auto-empty Base. • A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this Cleaning Tool has sharp edges. • EZVIZ manufactures various replacement parts and fittings. Please visit www.ezviz.com for more information on replacement parts.
  • Page 23 Dump the Dust Box Take the 2-in-1 dustbin & water tank out, and then take the dustbin out. Open the top cover of the dustbin and pour out the garbage. Remove the Filter out of the dustbin.
  • Page 24 Clean the Filter with Cleaning Tool and flush the Filter and Dustbin throughly with water as necessary, and then all cleaned elements shall be thoroughly dried. Do not clean with hot water or detergent. Clean/replace Mop Assembly...
  • Page 25 Clean Water Tank When not use the Robot for a long time, please empty the water tank. Clean the Main Brush Press the buckles to take out the Main Brush cover and the Main Brush.
  • Page 26 Use the blade of the Cleaning Tool to cut off the hair entangled on the Main Brush and remove the roller at one end of the Main Brush to clean it, and then re-install the Main Brush into place. Clean/Replace the Side Brush Pull the side brush out and then clean the foreign matters like hairs.
  • Page 27 Pull out the old side brush and then press the new one into the position. Clean Universal Wheel ① Pull up the Universal Wheel directly by hand then clean it with the hidden Cleaning Tool and then re-install it into place. ②...
  • Page 28 Clean Sensor Wipe dust off with a soft dry cloth or cleaning brush. Clean the Charging Electrode Wipe off the dust on the Charging Electrodes with a soft dry cloth or cleaning brush.
  • Page 29 Replace the Dust Bag When the Dust Bag is full, the Auto-empty Base LED Indicator flashes in red. ① Open the top cover and pull up the handle of the Dust Bag to take it out; ② Install a new one and close the top cover. Violent disassembly is prohibited.
  • Page 30 Problem Solution The battery level is low. Please place the Robot on the Auto-empty Base and align with the Charging Electrodes, and then toggle the power switch to “ I “. (When it is completely out of power, it needs to be charged for a while before automatic startup). The ambient temperature is too low (below 0℃...
  • Page 31 Problem Solution Poor Wi-Fi signal. Please make sure that the Robot is in a good Wi-Fi signal covered area. Wi-Fi connection exception.Please reset Wi-Fi and download the newest EZVIZ App and try again. Cannot connect to Wi-Fi Incorrect password. The router is 5GHz, but the Robot only support 2.4GHz.
  • Page 32 Severe dirt accumulation in the inner chamber has a certain impact on the fan and air pressure sensor. Recommended to clean up the garbage in the inner chamber regularly. Overlapped map appeared Delete the current map and try to build a new one by press For additional information about the Robot, please refer to www.ezviz.com/eu.
  • Page 33 Robot. down. Error 12: Operation abnormal Please check whether the power switch is Please turn on the power switch. turned on. If the corresponding faults cannot be eliminated by referring to the above methods, please refer to www.ezviz.com/eu.
  • Page 34 Appendix Environmental Precautions The chemical substances contained in the built-in lithium-ion battery of this product may cause environmental pollution. Please remove it before scrapping and send it to a professional battery recycling station for centralized disposal. Steps for removing the battery (the following information is only applicable when discarding the device, not the daily operation instructions): 1.Let the robot run to a low power state that cannot be cleaned without touching the auto-empty base.
  • Page 35 Rechargeable Lithium ion Battery 1. The battery type of the device: Portable battery. 2. The battery of this device is non-removable, which is risky to remove. Chemical Composition Chemical Formula CAS No� Weight (%) Lithium transition metal 182442-95-1 37.3% oxide Carbon(graphite) 7782-42-5 21.0%...

This manual is also suitable for:

Re5s plus
