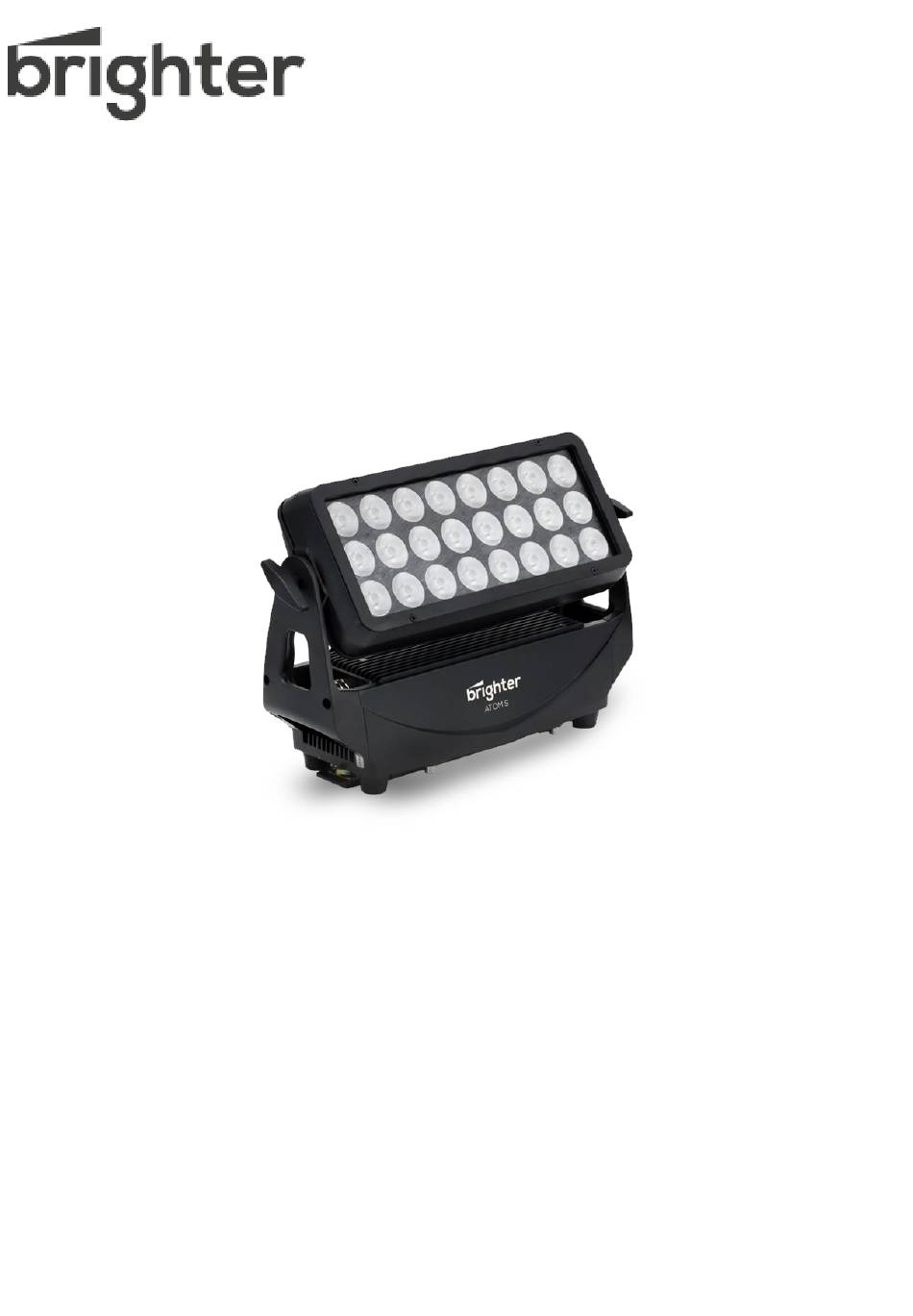

  • Page 1 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 USER MANUAL ATOM S USER MANUAL This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

  • Page 2: Safety Precautions

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 1. SAFETY PRECAUTIONS This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Manufacturer is not responsible for injuries and damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 3 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 DO NOT operate fixture if the power cord is frayed, crimped, damaged or if any of the power cord ▪ connectors are damaged and do not insert into the fixture securely with ease NEVER force a power cord connector into the fixture.

  • Page 4: Maintenance

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 2.2. MAINTENANCE Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized our service technician.

  • Page 5: System Menu

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 4.SYSTEM MENU Main Menu Sub Menu Option/Value Option/Value Channel DMX512 4CH/8CH/13CH/15CH/24CH DMX Address 001-512 W-DMX On/Off W-DMX Unlink Always on 10s Off Display mode 60s Off...

  • Page 6: Dmx Chart

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 5.DMX CHART 4Ch Mode Value Function Description 0-255 Dark to light 0-255 Green Dark to light 0-255 Blue Dark to light 0-255 White Dark to light...
  • Page 7 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 120-136 4500K 137-153 4000K 154-170 3500K 171-187 3200K 188-204 3000K 205-221 2700K 222-238 2500K 239-255 2000K 0-255 Control The value must stop for 5 seconds to make...
  • Page 8 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 241-250 W-DMX ON 251-255 No Function 13Ch Mode Value Function Description 0-255 Master Dimmer Dark to light 0-255 Master Dimmer Fine 16 bit adjustable 0-255 Shutter...
  • Page 9 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 171-187 3200K 188-204 3000K 205-221 2700K 222-238 2500K 239-255 2000K 0-255 Control The value must stop for 5 seconds to make Effect 13CH 0-21 No effect...
  • Page 10 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 15CH Mode Value Function Description 0-255 Master Dimmer Dark to light 0-255 Shutter Open 6-55 Synchronous strobe The larger value, the faster speed 56-105 Pulse strobe...
  • Page 11 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 103-119 5500K 120-136 4500K 137-153 4000K 154-170 3500K 171-187 3200K 188-204 3000K 205-221 2700K 222-238 2500K 239-255 2000K 0-255 Control The value must stop for 5 seconds to make...
  • Page 12 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 231-240 W-DMX OFF 241-250 W-DMX ON 251-255 No Function 24Ch Mode Value Function Description 0-255 Red 1 Dark to light 0-255 Green 1 Dark to light...
  • Page 13 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 6.SPECIFICATIONS CONSTRUCTION/PHYSICAL Dimensions: 420x140x265mm Weight: 6,6 Kg Exterior Color: Black DYNAMIC EFFECTS Dimmer: Electronic Strobe: Electronic Strobe Rate: 0-25Hz Standalone: Yes CONNECTIONS Power Connection: PowerCon TRUE1...

  • Page 14: Dimensional Drawings

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 7.DIMENSIONAL DRAWINGS Page 14 of 15...
  • Page 15 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 The manufacturer reserves the right to make changes to technical parameters Page 15 of 15...
