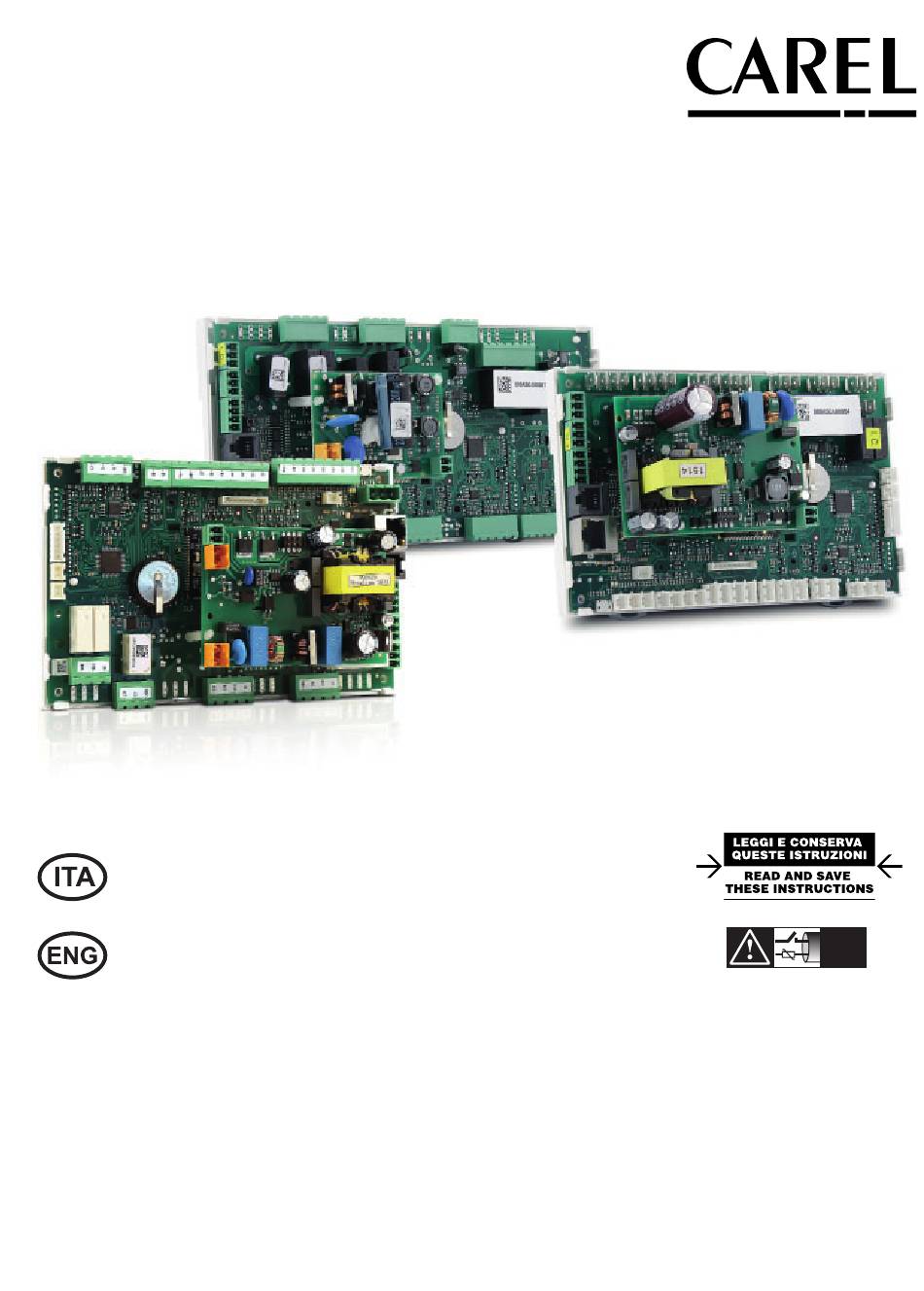

  • Page 1 μPC3 Controllo elettronico programmabile Electronic programmable control Foglio istruzioni NO POWER Technical leafl et & SIGNAL CABLES TOGETHER READ CAREFULLY IN THE TEXT! H i g h E f f i c i e n c y S o l u t i o n s...
  • Page 2 “μPC3” +050001595 - rel. 1.9 - 04.07.2019...

  • Page 3: Table Of Contents

    Indice 1. CARATTERISTICHE GENERALI 2. SPECIFICHE TECNICHE 2.1 Caratteristiche Ingressi/Uscite ........................5 2.2 Caratteristiche elettriche e meccaniche del controllo ..............9 2.3 Dimensioni ................................11 3. DESCRIZIONE DEI CONNETTORI 3.1 Schemi di collegamento ..........................14 3.2 Regole per lo smaltimento ..........................18 “μPC3” +050001595 - rel. 1.9 - 04.07.2019...
  • Page 4 “μPC3” +050001595 - rel. 1.9 - 04.07.2019...

  • Page 5: Caratteristiche Generali

    CARATTERISTICHE GENERALI μPC3 è un controllore elettronico a microprocessore sviluppato da CAREL (incorporated operating control) per offrire molteplici applicazioni nel settore del condizionamento dell’aria, del riscaldamento e della refrigerazione. μPC3 gestisce ingressi ed uscite logiche, la connessione a tutti i terminali della famiglia pGD e ad altri dispositivi di communicazione grazie a tre seriali built-in, una porta Ethernet e USB device.
  • Page 6 Ingressi digitali (Selv, Class 2 – vedi nota 5) Lunghezza max.: 30 m Numero max.: 6, 7, 10 rispettivamente sulle schede extra small, small, medium Type: ID1, ID2: Contatti puliti - ingressi digitali veloci: tipo: contatto pulito, corrente max: 10 mA, freq. max: 500Hz e risoluzione: ±5Hz ID3…ID10: Contatti puliti...
  • Page 7 Modelli con connettori FAST-ON Distanza isolamento: i relè appartenenti ad uno stesso gruppo a isolamento principale devono essere sottoposti alla stessa tensione di alimentazione. Composizione gruppi Versione Gruppo 1 Gruppo 2 Gruppo 3 Gruppo 4 Gruppo 5 Extra small 1..3 4..5 Small 1..3...
  • Page 8 Uscita valvola unipolare (Selv, Class 2 – vedi nota 5) Numero 1, 1, 2 rispettivamente su schede extra small, small, medium a seconda del modello acquistato Max potenza per ogni valvola Tipo di controllo motore passo-passo unipolare Connettore valvola 6-pin, sequenza fi ssa Alimentazione 13 Vdc ±5% Corrente massima...

  • Page 9: Caratteristiche Elettriche E Meccaniche Del Controllo

    Caratteristiche elettriche e meccaniche del controllo Alimentazione Universale, 90~264Vac UP3A********* e UP3X*********; 24 Vac/Vdc +10%/-15% 50/60 Hz, UP3B********* e UP3Y*********; 36Vdc~72Vdc UP3C********* e UP3Z*********; Massima Potenza assorbita: 28 VA Isolamento tra alimentazione e controllo • mod. 230 Vac: rinforzato; • mod.
  • Page 10 Conformal coating Tipo: UV40-250 Spessore sul PCB: 30~130 um Resistenza d’isolamento: per MIL-I-46058C 8.0 x 1014 ohms (800TΩ) Infi ammabilità: per UL-94 V-0 Tensione di rottura del dielettrico: per MIL-I-46058C >1500 volts Disponibile solo su modelli UP3X*********,UP3Y*********,UP3Z********* Linee di comunicazione disponibili Numero e tipo di Linee disponibili: •...

  • Page 11: Dimensioni

    Dimensioni Modelli Extra Small / Small (mm) 24 Vac 36 Vdc~72Vdc 230 Vac (without transformer) (with transformer) (with transformer) 170.08 5.08 5.23 5.08 4.94 Ø 4 mm 107.44 5.08 5.08 5.08 5.08 Fig. 2.a Modello Medium (mm) 24 Vac 230 Vac 36 Vdc~72Vdc (without transformer) (with transformer)

  • Page 12: Descrizione Dei Connettori

    DESCRIZIONE DEI CONNETTORI Modelli con connettori a vite estraibili (Medium) Key: Ingressi digitali Ingressi analogici Uscite analogiche Uscite digitali Display FieldBus2 FieldBus1 Uscita valvola di port/BMS /BMS controllo Display port Ethernet Ingresso Tensione Ingresso Corrente Ingresso Stand-by Micro USB per aggiornamento applicazione 10 Alimentazione per...
  • Page 13 Connettori JST-Faston (Medium) Key: Ingressi digitali Ingressi analogici Uscite analogiche Uscite digitali Uscita valvola di Display FieldBus2 FieldBus1 controllo /BMS port/BMS Ethernet Ingresso Tensione Display port Ingresso Corrente GND-ID1 Ingresso Stand-by GND-ID2 Micro USB per Control GND-ID3 Stand-by aggiornamento applicazione 11 Porta Ethernet GND-ID4 12 Porta Display...

  • Page 14: Schemi Di Collegamento

    Display FieldBus2 FieldBus1 port/BMS /BMS Display Ethernet port FieldBus2/BMS configuration CAREL NTC Field bus 0 to 1 Vdc 4 to 20 mA 0 to 5 Vdc +Vdc Analog Output 0...10 Vdc Analog Output 0...10 Vdc Analog Output 0...10 Vdc/PWM EEV1...
  • Page 15 Modelli Extra Small / Small con connettori JST-Faston Display FieldBus2 FieldBus1 port/BMS /BMS Display GND-ID1 port Ethernet GND-ID2 Control GND-ID3 Stand-by GND-ID4 GND-ID5 GND-ID6 GND-ID7 FieldBus2/BMS configuration GND-+13V - B1 GND-+13V - B2 Field bus GND-+13V - B3 GND-+13V - B4 GND-+13V - B5 GND-+5V - B6 GND-+5V - B7...
  • Page 16 Display FieldBus2 FieldBus1 port/BMS /BMS Display Ethernet port FieldBus2/BMS configuration CAREL NTC Field bus 0 to 1 Vdc 4 to 20 mA 0 to 5 Vdc +Vdc Analog Output 0...10 Vdc Analog Output 0...10 Vdc Analog Output 0...10 Vdc/PWM Analog Output 0...10 Vdc/PWM...
  • Page 17 Modelli medium con connettori JST-Faston Display FieldBus2 FieldBus1 port/BMS /BMS Ethernet Display port GND-ID1 GND-ID2 Control GND-ID3 Stand-by GND-ID4 GND-ID5 GND-ID6 GND-ID7 FieldBus2/BMS configuration GND-+13V - B1 GND-+13V - B2 Field bus GND-+13V - B3 GND-+13V - B4 GND-+13V - B5 GND-+5V - B6 GND-+5V - B7 GND-+5V - B8...

  • Page 18: Regole Per Lo Smaltimento

    è richiesta/indicata nel manuale d’uso, può generare malfunzionamenti nei pro- dotti fi nali di cui CAREL non potrà essere ritenuta responsabile. Il cliente fi nale deve usare il prodotto solo nelle modalità...
  • Page 19 Contents 1. GENERAL CHARACTERISTICS 2. TECHNICAL SPECIFICATIONS 2.1 I/O characteristics ..............................5 2.2 Mechanical and Electrical specifi cations ....................9 2.3 Dimensions ................................11 3. DESCRIPTION OF THE CONNECTORS 3.1 Connection diagrams ............................14 3.2 Guidelines for disposal .............................18 Disposal of the product The appliance (or the product) must be disposed of separately in accordance with the local waste disposal legislation in force.
  • Page 20 “μPC3” +050001595 - rel. 1.9 - 04.07.2019...

  • Page 21: General Characteristics

    Using CAREL c.suite software, it promises maximum programming fl exibility for each application. μPC3 controls inputs and outputs logic, the pGD user interface and others devices communication, built-in three serial lines, Ethernet and USB device.
  • Page 22 Digital Inputs (Selv, Class 2 – see note 5) Max. length: 30 m Max. number: 6, 7, 10 on the extra small, small, medium boards respectively Type: ID1, ID2: Free contacts - Fast digital inputs: type: free contact, max current:10 mA, max freq.: 500Hz and res.: ±5 Hz ID3…ID10: Free contacts Time constant for each input: 0,5 s...
  • Page 23 Models with FAST-ON connectors Insulation distance: the relays in the same group with basic insulation must have the same power supply. Make up of groups Version Group 1 Group 2 Group 3 Group 4 Group 5 Extra small 1..3 4..5 Small 1..3 4..5...
  • Page 24 Single-pole valve output (Selv, Class 2 – see note 5) Number 1, 1, 2 on the extra small, small, medium boards respectively according to the model purchased Max. power for each valve Type of control Single-pole stepper Valve connector 6-pin, fi xed sequence Power supply 13 Vdc ±5% Max.

  • Page 25: Mechanical And Electrical Specifi Cations

    Mechanical and Electrical specifi cations Power supply Universal, 90~264Vac UP3A********* e UP3X*********; 24 Vac/Vdc +10%/-15% 50/60 Hz, UP3B********* e UP3Y*********; 36Vdc~72Vdc UP3C*********; Max power input : 28 VA Insulation between power supply and instrument: • mod. 230Vac: reinforced; • mod. 24Vac: reinforced ensured by the use of external safety (class 2) transformer (mandatory) External fuse: 3.15 AT(mandatory);...
  • Page 26 Conformal coating Type: UV40-250 Thicknees on PCB: 30~130 um Insulation Resistance: per MIL-I-46058C 8.0 x 1014 ohms (800TΩ) Flammability: per UL-94 V-0 Dielectric Withstand Voltage: per MIL-I-46058C >1500 volts Available only on UP3X*********,UP3Y*********,UP3Z********* Communication lines available No. and type of lines available: •...

  • Page 27: Dimensions

    Dimensions Extra Small / Small model (mm) 24 Vac 36 Vdc~72Vdc 230 Vac (without transformer) (with transformer) (with transformer) 170.08 5.08 5.23 5.08 4.94 Ø 4 mm 107.44 5.08 5.08 5.08 5.08 Fig. 2.a Medium model (mm) 24 Vac 36 Vdc~72Vdc 230 Vac (without transformer) (with transformer)

  • Page 28: Description Of The Connectors

    DESCRIPTION OF THE CONNECTORS Removable screw connectors (Medium model) Key: Digital inputs Analogue inputs Analogue outputs Digital outputs Display FieldBus2 FieldBus1 Valve control port/BMS /BMS output Display port Ethernet Voltage input Current input Stand-by control input Micro USB for ap- plication upgrade 10 Power supply for external probe...
  • Page 29 JST-Faston connectors (Medium model) Key: Digital inputs Analogue inputs Analogue outputs Display FieldBus2 FieldBus1 Digital outputs /BMS port/BMS Ethernet Valve control Display port GND-ID1 output Voltage input GND-ID2 Control Current input GND-ID3 Stand-by Stand-by control input GND-ID4 Micro USB for GND-ID5 application upgrade...

  • Page 30: Connection Diagrams

    Display FieldBus2 FieldBus1 port/BMS /BMS Display Ethernet port FieldBus2/BMS configuration CAREL NTC Field bus 0 to 1 Vdc 4 to 20 mA 0 to 5 Vdc +Vdc Analog Output 0...10 Vdc Analog Output 0...10 Vdc Analog Output 0...10 Vdc/PWM EEV1...
  • Page 31 Extra Small / Small models with JST-Faston connectors Display FieldBus2 FieldBus1 port/BMS /BMS Display GND-ID1 port Ethernet GND-ID2 Control GND-ID3 Stand-by GND-ID4 GND-ID5 GND-ID6 GND-ID7 FieldBus2/BMS configuration GND-+13V - B1 GND-+13V - B2 Field bus GND-+13V - B3 GND-+13V - B4 GND-+13V - B5 GND-+5V - B6 GND-+5V - B7...
  • Page 32 Display FieldBus2 FieldBus1 port/BMS /BMS Display Ethernet port FieldBus2/BMS configuration CAREL NTC Field bus 0 to 1 Vdc 4 to 20 mA 0 to 5 Vdc +Vdc Analog Output 0...10 Vdc Analog Output 0...10 Vdc Analog Output 0...10 Vdc/PWM Analog Output 0...10 Vdc/PWM...
  • Page 33 Medium models with JST-Faston connectors Display FieldBus2 FieldBus1 port/BMS /BMS Ethernet Display port GND-ID1 GND-ID2 Control GND-ID3 Stand-by GND-ID4 GND-ID5 GND-ID6 GND-ID7 FieldBus2/BMS configuration GND-+13V - B1 GND-+13V - B2 Field bus GND-+13V - B3 GND-+13V - B4 GND-+13V - B5 GND-+5V - B6 GND-+5V - B7 GND-+5V - B8...

  • Page 34: Guidelines For Disposal

    CAREL can not be held responsible. The fi nal client must use the product only in the manner described in the documentation related to the product itself.
  • Page 36 Agenzia / Agency: CAREL INDUSTRIES HQs Via dell’Industria, 11 - 35020 Brugine - Padova (Italy) Tel. (+39) 049.9716611 - Fax (+39) 049.9716600 e-mail: carel@carel.com - www.carel.com...
