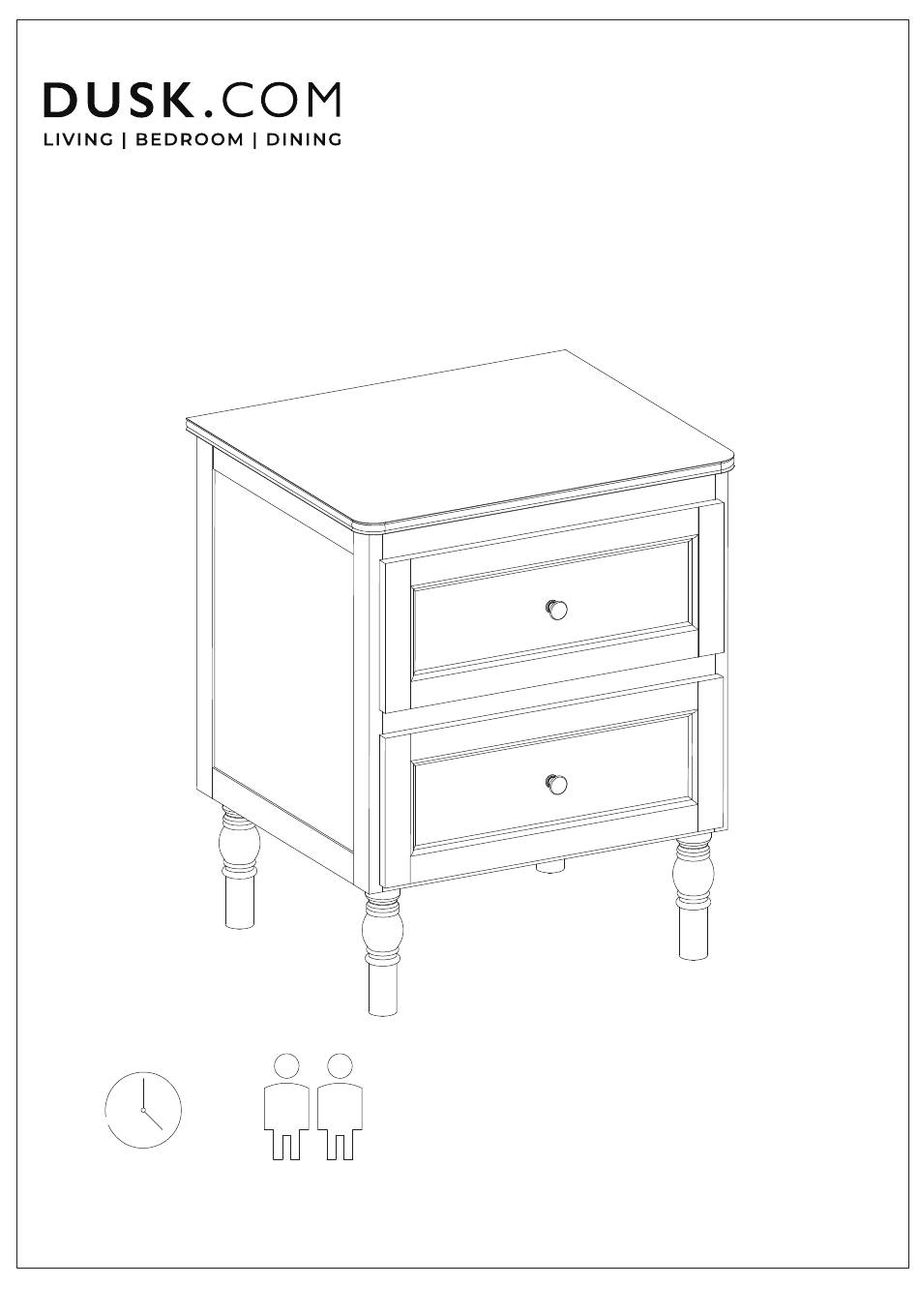

- Page 1 Range Name: Ruby Box 1 dimensions: W65.5xD51.5xH16.5 cm Product dimensions: W52xD45xH61 cm Bedside Up to 40 minutes Two person assembly time assembly P-1-11 V-2.0 This product is intended for domestic use only, not for commercial purposes.
-
Page 2: Care And Maintenance
IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your bedside frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. -
Page 3: Parts List
Parts list P-3-11... - Page 4 Parts list Before you begin building your bedside, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Part Description Quantity Part Number Box No Left Side Panel 1 pc Box 1...
- Page 5 Fittings Please check you have all the fittings listed below with your product in box 1. M6*35mm Ø6*30mm Dowel M4*35mm Screw Wall Bracket Plastic Buckle Ø15*9mm Cam Lock Cam Lock Screw 26pcs+3pcs extra 26pcs+3pcs extra 14pcs+1pc extra 9pcs+1pc extra 8pcs+1pc extra M3.5*14mm Screw Knob M4*8mm Bolt...
- Page 6 1. Attach Cam Lock Screws to Left Side Panel (1) and Right Side Panel (2), then attach fitting and Slide Rail to the Side Panels . M6*35mm Slide Rail M3.5*12mm Screw Cam Lock Screw 12pcs 4pcs 12pcs 2. Attach Back Support Bar (4) to the Bottom Panel (3). M6*35mm Ø6*30mm Dowel Ø15*9mm Cam Lock...
- Page 7 3. Attach Bottom Panel (3), Back Support Bar (4) and Front Support Bar (5) to Right Side Panel (2). Ø6*30mm Dowel Ø15*9mm Cam Lock 6pcs 4pcs 4. Attach Left Side Panel (1) to the Frame. Ø6*30mm Dowel Ø15*9mm Cam Lock P-7-11 6pcs 4pcs...
- Page 8 5. Attach and fasten the Legs (13) to the bottom. 6. Insert Back Panel (6) to the Frame. P-8-11...
- Page 9 7. Fasten the Wall Bracket and Cam Lock Screws to the Top Panel (7). M6*35mm Wall Bracket M4*14mm Screw Cam Lock Screw 4pcs 2pcs 8. Attach Top Panel (7) to the Frame. Ø6*30mm Dowel Ø15*9mm Cam Lock P-9-11 4pcs 4pcs...
- Page 10 9. Assemble the drawer by following the steps shown in the illustration below. M6*35mm M4*35mm Screw Knob M4*8mm Bolt Cover Slide Rail M3.5*12mm Screw Ø15*9mm Cam Lock Cam Lock Screw 8pcs 8pcs 8pcs 2pcs 2pcs 8pcs 4pcs 12pcs 10. Slide the lower drawer into the Frame . P-10-11...
- Page 11 11. Attach the plastic buckles on back. Before securing them, manually adjust the frame to ensure the drawers are properly aligned, even, and parallel. Adjust the center leg if necessary. Plastic Buckle M3.5*14mm Screw 8pcs 8pcs 12. Fix the wall bracket to the wall by drilling holes, inserting wall anchors, and securing it with screws.
