Furuno MU-192 Replacement Instructions

MONITOR REPLACEMENT KIT OP26-50
REPLACEMENT INSTRUCTIONS
MONITOR UNIT

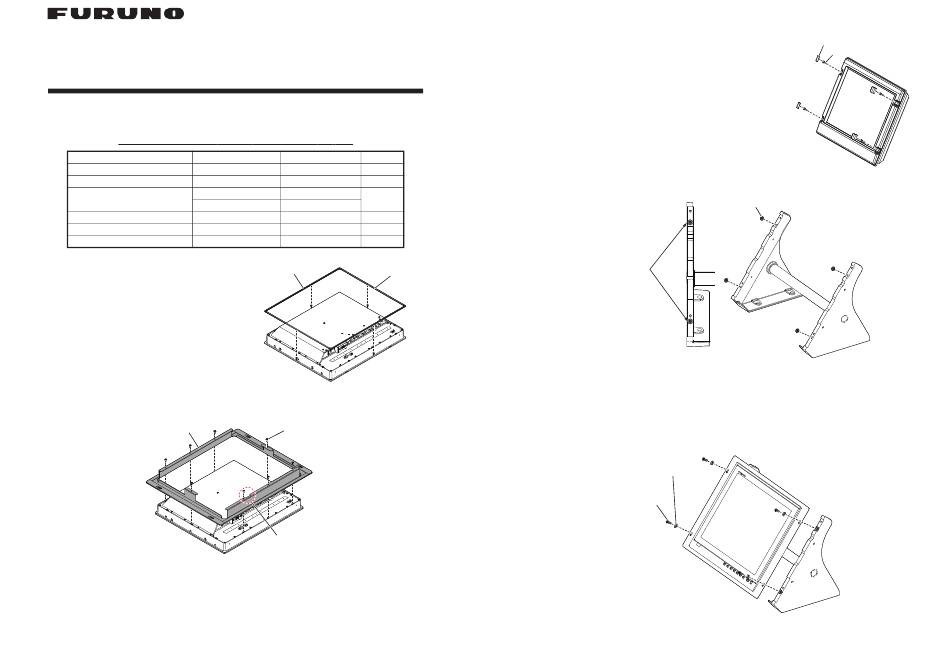

These instructions describe how to replace the MU-201CE/CR with the MU-192, using the monitor
replacement kit (OP26-50). The OP26-50 allows you to install the MU-192 to the existing bracket
for the MU-201CE/CR.
Monitor Replacement Kit OP26-50 (Code No.: 001-661-340)
Name Type
Conversion Attachment 26-012-1031-0
Spacer OP26-21-1
Flush Mounting Sponge H19 26-005-3123-1
26-005-3123-0
Rosette Washer M6 C2700W
Binding Head Screw M4X10 SUS304
Oval Head Screw M6X30 C2700W
1. Attach the flush mounting sponges H19 (sup-
plied with this kit, thickness: 2 mm) and V19
(supplied with the MU-192, thickness: 2 mm) to
the back of the MU-192 in the order shown in the
right-hand figure.
Note: Place the unit facedown on a soft, clean
surface to prevent damage to the LCD.
2. Attach the conversion attachment to the MU-192, using the eight binding screws (M4×10).
The cutout on the conversion attachment must face to the bottom of the unit.
Conversion attachment
All brand and product names are trademarks, registered
trademarks or service marks of their respective holders.
www.furuno.com
MU-192
Model
Code No. Qty
100-449-800 1
001-143-370 4
100-351-551-10 2
100-351-550-10
000-165-694-10 4
000-172-165-10 8
000-163-677-10 4
Flush mounting Flush mounting
sponge H19 sponge V19
2 2
1 1
3 3
4 4
Binding screw
(M4×10, 8 pcs)
The cutout must face to
the bottom of the unit.
3. Remove four panel caps and hex bolts (M6×25) from the
MU-201CE/CR to remove the unit from the bracket, then dis-
connect all cables.
The panel caps and hex bolts can be discarded.
4. Remove the release paper from the double-sided tape on the spacers, then attach them to
the bracket referring to the figure below.
Attach the spacers
to these holes.
5. Connect all cables to the MU-192, referring to section "1.8 Wiring" in the Operator's Manual
of the MU-192.
Remove the terminal board cover at the bottom of the MU-192 to connect the power cable to
the terminal board with crimp-on lugs. Make sure to reattach the cover after connecting the
cable.
6. Secure the MU-192 to the bracket using the four oval head screws (φ6×30) and rosette wash-
ers (M6).
Rosette washer
Oval head screw
(M6×30, 4 pcs)
Panel cap
Hex bolt
MU-201CE/CR
Spacer
2
