Furuno MU-190 Assembly Instructions
Connection stand/bracket monitor unit
Hide thumbs
Also See for MU-190:
- Operator's manual (2 pages) ,
- Operator's manual (76 pages) ,
- Operator's manual (53 pages)
Advertisement
Quick Links

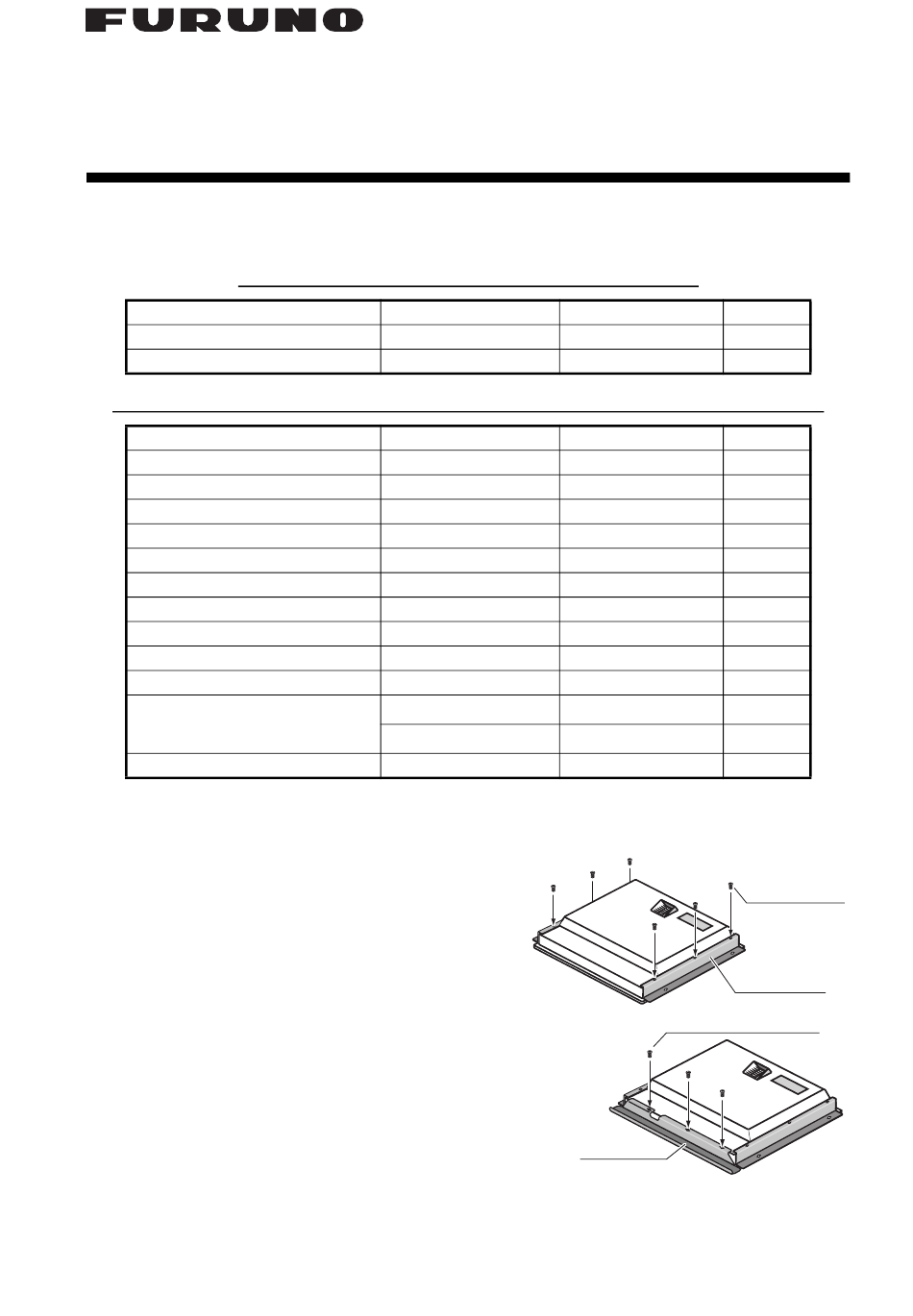

CONNECTION STAND/BRACKET ASSEMBLY
MONITOR UNIT
The purpose of these instructions is to provide the procedure for mounting the monitor unit MU-
190/MU-192 on the connection stand. The optional bracket assembly OP26-21 (for MU-190)/
OP26-53 (for MU-192) is required in addition to the optional connection stand (19) OP26-20.
Connection Stand (19) OP26-20 (Code No.: 001-139-300)
Name
Connection Stand (19)
Washer Head Screw B
Bracket Assembly OP26-21 (Code No.: 001-139-310)/OP26-53 (Code No.: 001-662-500))
Name
Spacer Assembly
Bracket L
Bracket R
Spacer (19)
Hole Plug
Hexagonal Head Slot Bolt
Binding Head Screw
Flat Washer
Spring Washer
Snap Button
Blind Panel
Binding Head Screw
*1
: Included with OP26-21.
Note: Illustrations used in this manual are for the MU-190.
1.
From the rear of the monitor unit, attach the flush
mount panel 19 (supplied with the monitor unit)
with the binding head screws (M4x10, 6 pcs., sup-
plied with the monitor unit).
2.
From the rear of the monitor unit, attach the blind
panel with the binding head screws (M4x10, 3 pcs).
3.
Connect all cables at the back of the monitor unit (see
section 1.8 "Wiring" in the Operator's Manual for the
monitor unit).
Remove the terminal board gear cover at the bottom
rear of the monitor unit. Attach crimp-on lugs to the pow-
er cable then connect the cable to the power terminal. Reattach the terminal board gear cov-
er.
All brand and product names are trademarks, registered
trademarks or service marks of their respective holders.
www.furuno.com
MOUNTING INSTRUCTIONS
Model
Type
OP26-20-1
M4x10
Type
OP26-21-1
03-163-7712
03-163-7713
03-163-7706
CP-30-HP-13
M10x30
M5x16
M10
M10
KB-13 Black
*1
03-163-7716
*2
03-193-7211
M4x10 SUS304
*2
: Included with OP26-53.
MU-190/MU192
Code No.
001-143-280
000-163-191-10
Code No.
001-143-370
100-366-311-10
100-366-321-10
100-366-290-10
000-160-074-10
000-162-884-10
000-163-898-10
000-167-232-10
000-167-233-10
000-570-276-10
100-369-460-10
100-451-680-10
000-172-165-10
Binding Head
Screw
Flush Mount
Panel 19
Binding Head Screw
Blind Panel
Qty
1
4
Qty
4
1
1
1
2
2
4
2
2
4
1
1
3
