Pro's Kit PD-161-C Manual

PD-161-C Multi-purpose Laser
Level Measuring Tape Ruler
User's Manual
Thank you for purchasing the PD-161-C Multi-purpose Laser Level Measuring
Tape Ruler. Please read this manual before operating the PD-161-C. Please
store the manual in a safe, easily accessible place for future reference. This is
a multi-purpose DIY tool, Integrated of tape, level ruler, ruler and laser wire
drop function, please read the following instructions before use.
⑥
⑤
④

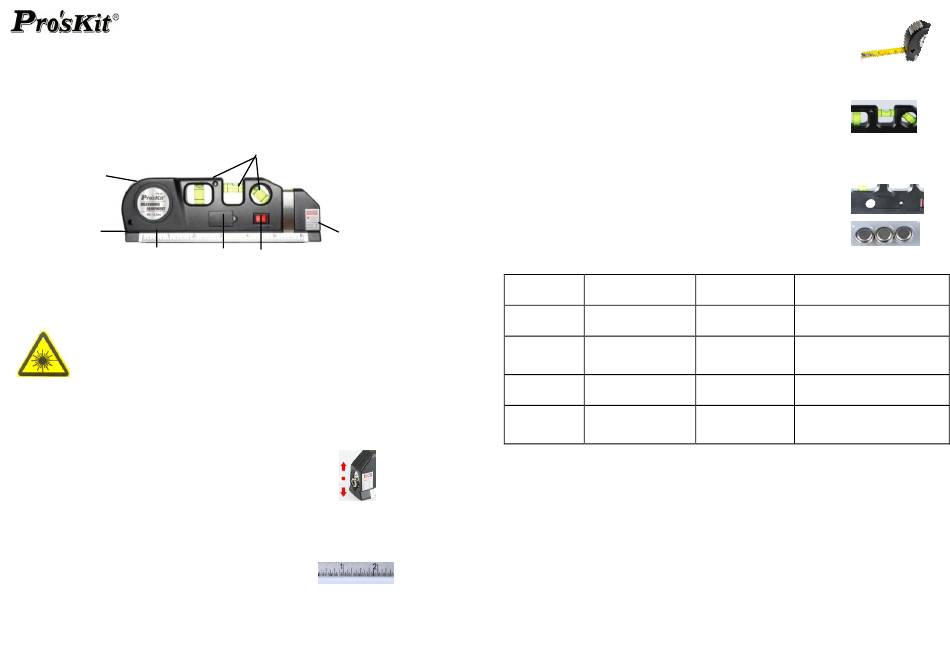

① Laser emission port ② Laser power ON/OFF ③ Battery compartment
④ Rulers ⑤ Measuring tape ⑥ Tape switch ⑦ Level bubbles.
Safety
WARNING! LASER light can be harmful if used improperly.
DO NOT AIM LASER IN TO EYES! NEVER Look into the bulb
while laser is on.
THIS ITEM IS NOT A TOY.DO NOT FOR AGE 14 AND UNDER!
Keep this product away from water, dust, sunlight!
How to use
1. LASER LEVEL LINES
 Remove the plastic separators from the battery bin. Switch the power on.
The lens will emit red laser light.
 Selecting the required laser line mode by pulling the
lens up, middle and down. Upper: Horizontal line;
Middle: Cross line; Lower: Vertical line
 The ruler can be placed horizontally, referring specifically to the three level
bubbles of the equipment.
 Lens are aligned to the planar position to be constructed. Optimum laser
irradiation distance 1.5 m~2 m
2. RULER
 This product has two rulers. One ruler is metric scale（total 15cm）and the
other ruler is British scale（total 6 inch）.It can be used for measuring or
drawing lines.
All manuals and user guides at all-guides.com
⑦
①
③
②
3. Tape
 This tape measure has metric and British scales. (total
2.5m/8Ft）
 When in use, press the tape button and pull out the tape
to measure. After use, press the button and the tape
measure will be automatically retrieved.
4. Leveling instrument
 This product has three level bubbles.
 When in use, put this product. Cling the ruler to the measured plane. Then
observe the position of level bubbles to determine whether the measured
plane is horizontal or not.
5. Change the battery:
 Batteries need to be replaced when the light is weak or
not lighting. Turn the screw and open the battery cover.
 Remove old batteries and replace with new ones.
 When not in use for a long time, please take out the battery.
Specifications
Size 191*62*28 mm
Wave 630nm~680nm
Output ＜5mW
Laser Class IIIa
class
Battery 1.5V LR44 x 3
（include）
1. This product for DIY use only, the measurement accuracy is only for the
reference.
2. The optimum distance of laser marking line is 1.5m ~ 2 m, and the
appearance of virtual shadow is reasonable.
3. Horizontal bubble measurement only for reference, if any queried, please
refer to more accurate measuring tools.
4. If you have any doubt about the tape ruler, please correct it according to the
more accurate grade tape ruler.
5. Product functional problems such as the appearance of false shadow,
because the laser location is not accurate, horizontal and vertical barrier
blocking caused, please adjust the location of the dial. The linewidth is
inconsistent because of the change in the size of the inner plastic lens,
please adjust the projection distance. Above mentioned do not serve as the
basis for return.
Optimum 1.5m~2m
distance
Line mode Horizontal.
Cross .Vertical
Level
Horizontal、Vertical、
bubbles
gradient45°
Ruler 15cm/ 6 inch
Tape 2.5m/8FT
