Manrose SPARTA FAN1281 Installation Instructions

INSTALLATION INSTRUCTIONS AND HOLE-CUTTING TEMPLATE
Dear Customer,
Thank you for selecting MANROSE. Please read all instructions before commencing installation.
WARNING - ALL WIRING MUST BE CARRIED OUT BY A REGISTERED ELECTRICIAN
1. Use this SPARTA heat-fan-light unit only as described in this manual. Any other use not recommended by the
manufacturer may cause re, electric shock, or injury to persons. If you have questions, contact the
manufacturer or local agent.
2. All wiring must be carried out by a licensed electrician in accordance with all national wiring codes.
3. Make sure the power is isolated before installing.
4. When cutting into the ceiling, do not damage electrical wiring and other hidden utilities.
5. The SPARTA heat-fan-light unit must be properly earthed.
6. The lamps are hot when in use. Do not touch the infrared lamps when in use.
7. Exhaust fans may adversely affect the safe operation of appliances burning gas or other fuels (including those in
other rooms) due to back ow of combustion gases. These gases can potentially result in carbon monoxide
poisoning. After installation of an exhaust fan such as a partition fan or a duct fan the operation of ued gas
appliances should be tested by a compotent person to ensure the back ow of combustion gases does not
occur.
8. The SPARTA heat-fan-light unit must be isolated from the power by means of a plug or a switch capable of
disconnecting all poles with a contact separation of at least 3mm in each pole.
9. The power cable must be rated for a minimum 5A inductive load.
10. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
11. Children should be supervised to ensure that they do not play with the appliance.
IMPORTANT CONSIDERATIONS BEFORE INSTALLING
A few minutes of planning can make a big difference to the installation time and ultimate satisfaction with the
functioning of the unit.
1. The unit should not be installed directly above a shower or bathtub. The unit must not be installed in a position
where water may splash onto the lamps.
2. The unit must not be installed beneath a xed electrical socket.
3. The unit is designed for installation in at ceilings only. Do not mount it on a sloping ceiling or a vertical wall.
4. The infrared lamps are most effective when you are standing directly beneath them, so generally the unit would
be mounted above a place where you would stand to dry yourself.
5. For the exhaust fan to work ef ciently, replacement air of a volume equivalent to what is being extracted must be
able to enter the room. Generally this air would be drawn under the door. If the room is airtight, the fan will not
exhaust air ef ciently.
6. Before commencing any cutting, check in the ceiling space that there are no obstructions such as ceiling joists
and that there is suf cient height clearance for the housing. Check that the electrical wiring can be routed from
the wall switches to the mounting location.
7. The appliance shall, under no circumstances, be covered with insulating, or similar, material.
Read and save these instructions!
SPARTA
FAN1281

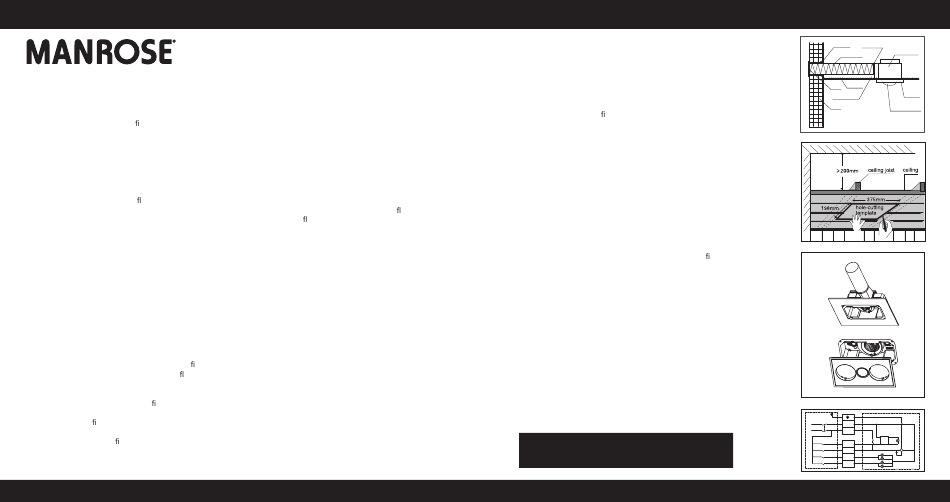

INSTALLATION
1. Locating the SPARTA Heat-Fan-Light unit
For the purpose of obtaining the best heating effect from the lamps
there should be at least 2.3m overall height from unit to ground.
2. Prepare the ceiling
Select the mounting position for the unit. Check that it is possible to
route the ducting from the unit to the outside of the house. This will
generally be to the sof t but can be to a wall outlet location (as
pictured).
Use this hole-cutting template to mark the hole on the ceiling. Make
sure a distance between the edges of the unit and wall is no less than
250mm. There should be a minimum 195mm vertical distance between
the ceiling and roof.
3. External grille
Locate the position for the external grille and cut a 130mm diameter
hole. Connect one end of the 125mm diameter duct to the spigot of the
external grille.
Note: Since the length of each duct is 1.5m, make sure the centre of
the installation hole is no more than 1.5m from the vent
Note: In order to get an effective ventilation, it is suggested that the
duct is no more than 1.5m in length.
Caution: Use appropriate safety PPE when cutting bre cement
products.
4. Wiring
Connect one end of the interconnecting wire to the wall switch panel,
and bring the other end out of the hole in the ceiling. Open the terminal
block cover on the unit's housing, make the connection as per the
wiring diagram instruction below, then reposition the terminal block
cover. Press excess wire back into the ceiling.
Note: Ensure that the power is isolated before carrying out any work on
electrical installations.
5. Clip the two halves of the outlet spigot together and slide the outlet
spigot into the fan housing. Tighten the screw to secure the outlet.
6. Fit the tie-in into the fan outlet in the housing with Ø125mm duct
clip. Fit the in-house end of the duct to the fan outlet, and fix the
end with duct tape.
Note: Keep the route as straight as possible.
WARNING
Failure to connect a permanent live connection to the
Heat-Fan-Light will result in failure of critical safety features
Please take this card as hole cutting template 375mm x 198mm
sealant duct clip
heat-fan-
light
duct
ceiling
grille
fascia
ceiling joist
wall
infrared lamp
N N
L L
thermostat LED power
driver
LIGHT
K1
Motor
FAN M
~
K2 C
HEAT
K3
heat lamp
HEAT
K4
