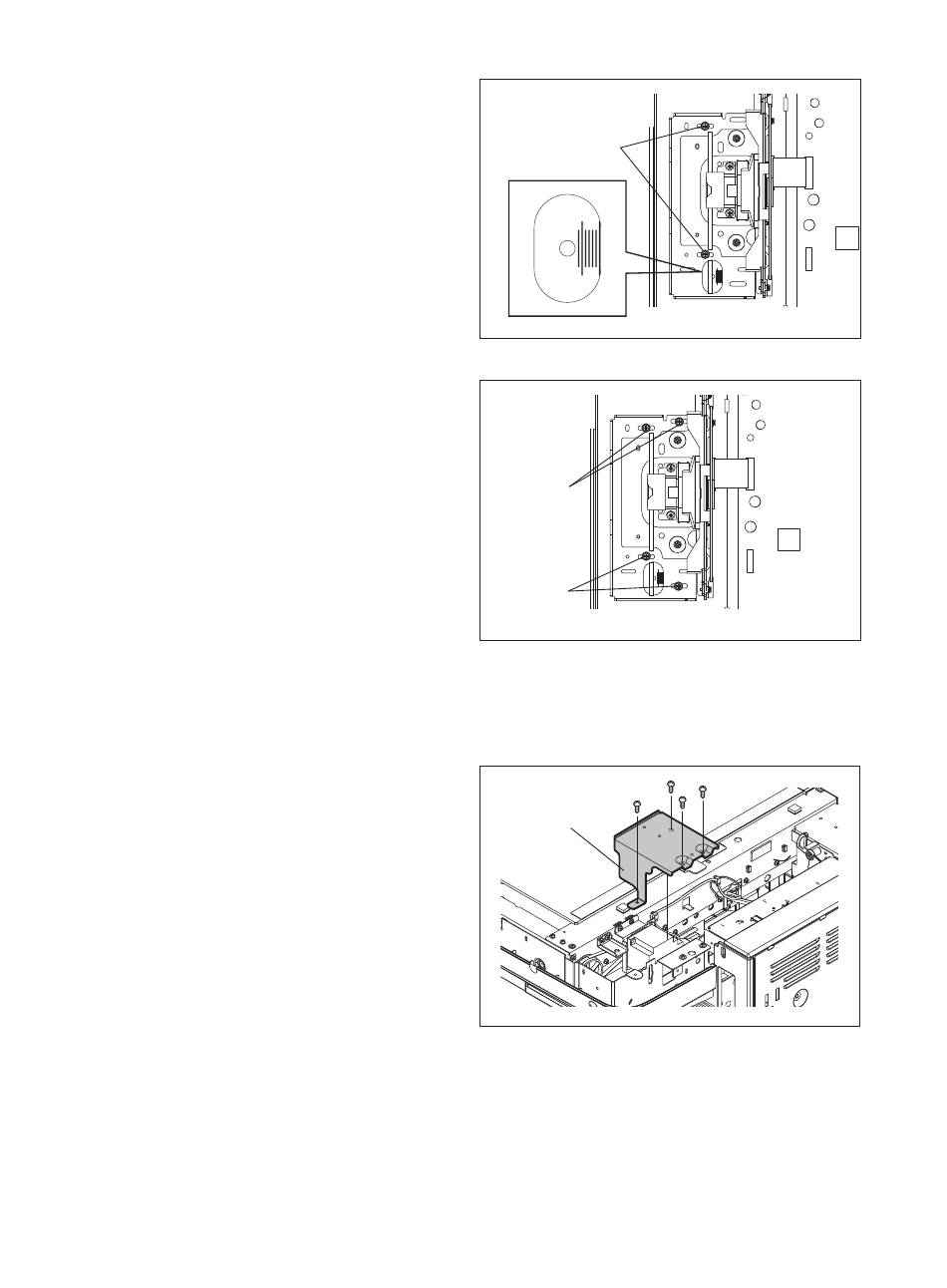

[B] Installation of lens unit
(1) Attach the lens unit and fix it temporarily with
2 screws.
(2) Match the center scale of the plate in which
the unit is to be installed and the rightmost
scale of the adjusting hole on the lens unit
plate.
(3) Tighten 4 screws securely to fix the lens unit
while pushing it to the rear side.
7.6.12

Scan motor (M1)

(1) Remove the RADF.
(2) Take off the top rear cover.
 P.3-47 "3.5.20 Top rear cover"
(3) Remove 4 screws and take off the blacket.
e-STUDIO5520C/6520C/6530C
SCANNER
Screw
[ Rear ]
Screw
Screw
[ Front ]
Bracket
© 2008-2012 TOSHIBA TEC CORPORATION All rights reserved
7 - 30
[ Rear ]
[ Front ]
Fig. 7-51
Fig. 7-52
Fig. 7-53
