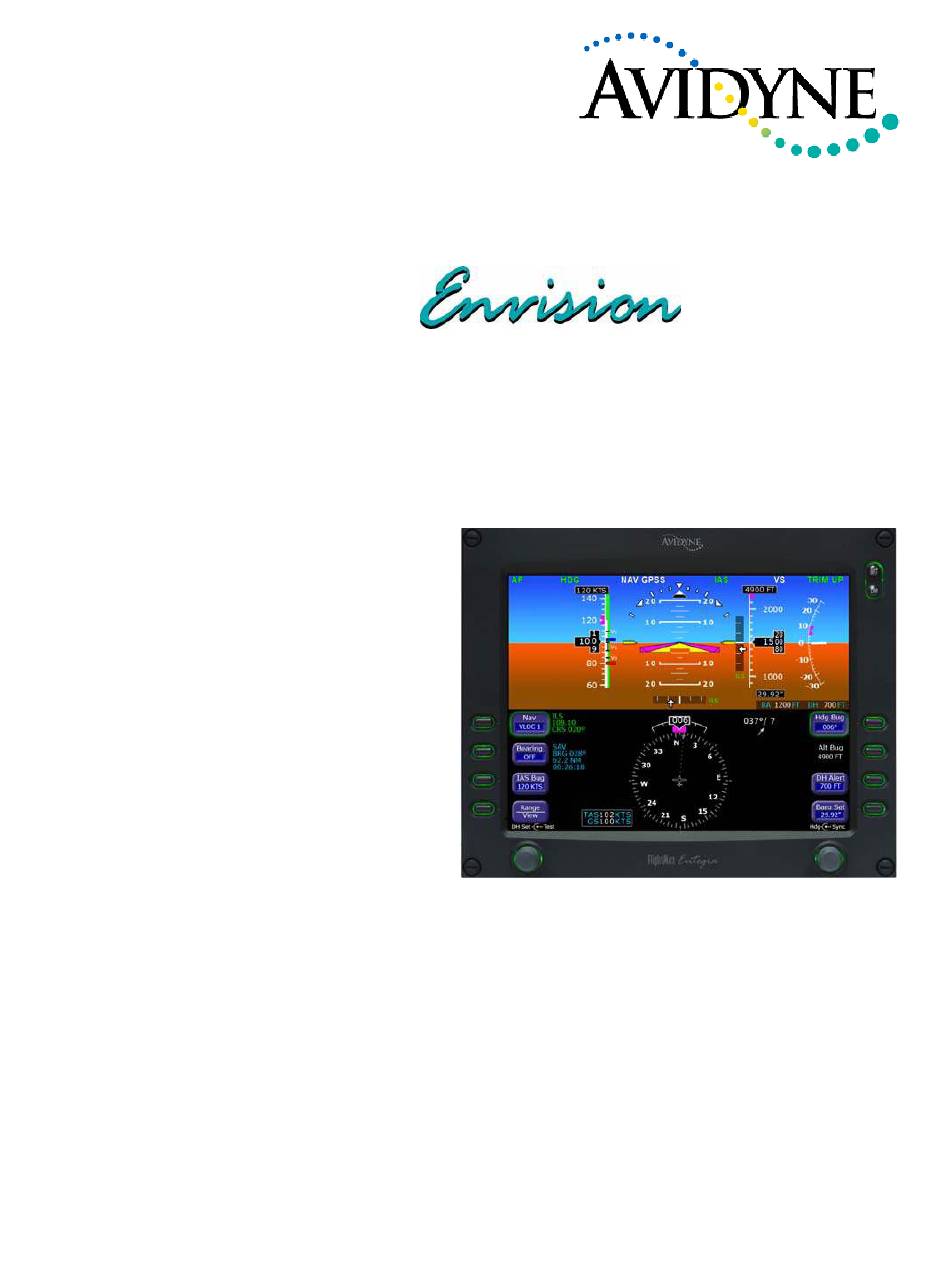

EXP5000
Primary Flight Display
Installation Manual
700-00006-000 PFD
For Release 7.1 and later
Document P/N 600-00141-010 REV 6
