6. Do not pinch the Main Wire (25). Orient the
Upright (27) as shown, and hold it on the Frame
(1).
Attach the Upright (27) with four M8 x 20mm
Screws (29); start all four Screws, and then
tighten them.

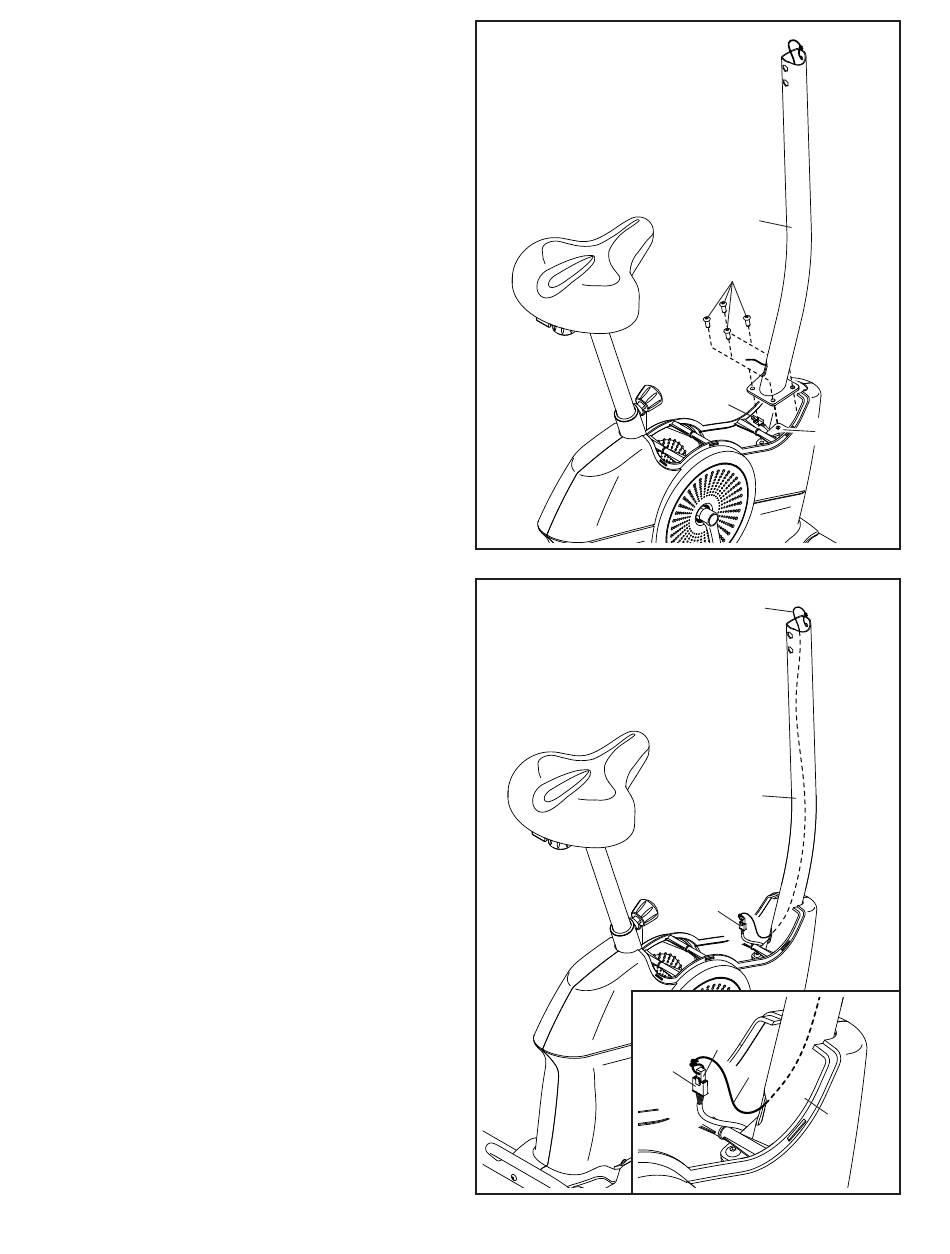

7. See the inset drawing. Locate the wire tie (E) in
the Upright (27). Tie the wire tie through the wire
pull (F) on the Main Wire (25).
Then, pull the upper end of the wire tie (E)
until the Main Wire (25) is routed through the
Upright (27).
Do not untie the wire tie (E) yet.
