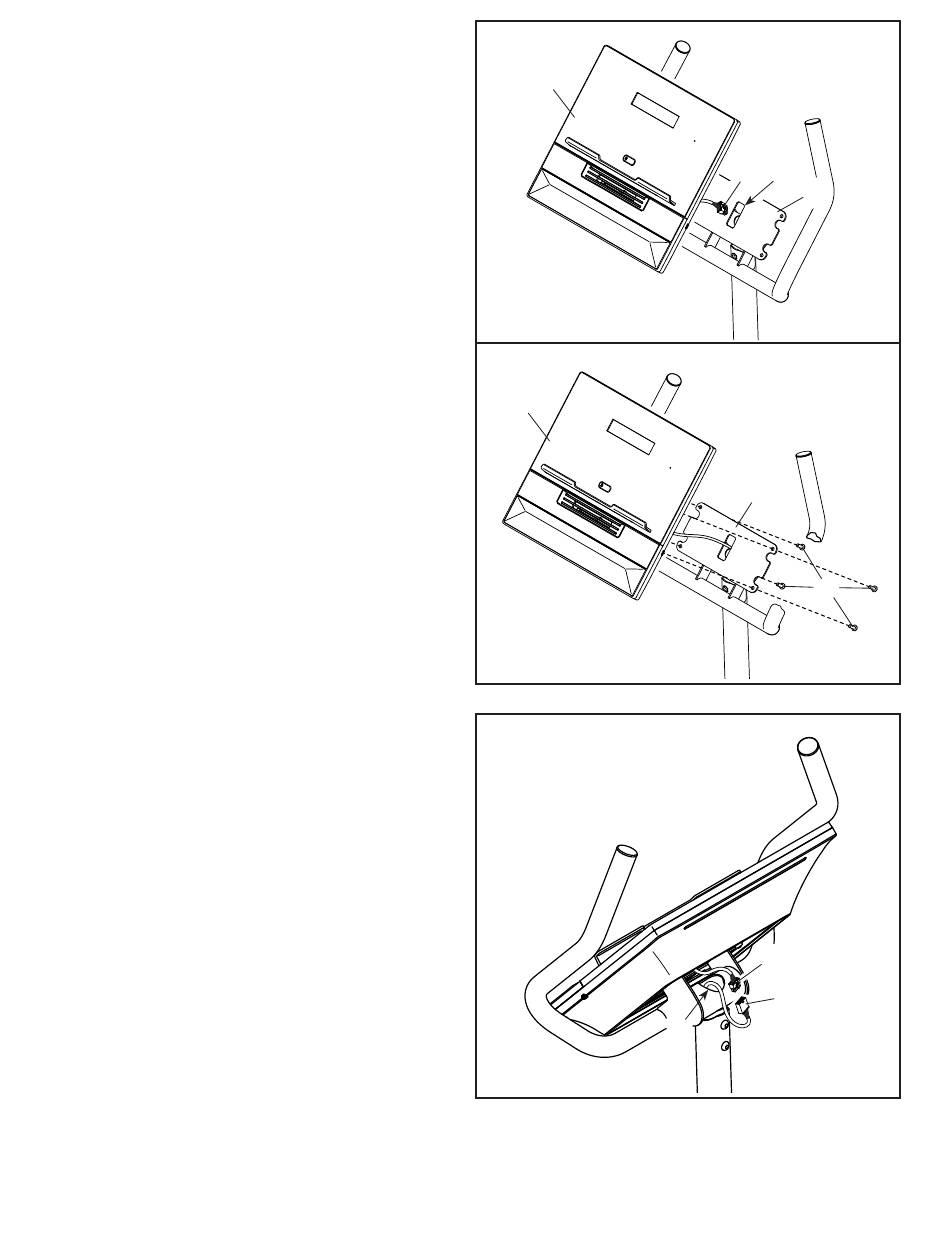

10. See the upper drawing. Hold the Console (7)
near the Handlebar (4), and insert the console
wire (J) through the indicated slot (K).
See the lower drawing. Do not pinch the
wires. Attach the Console (7) to the Handlebar
(4) with four M6 x 16mm Screws (63); start all
four Screws, and then tighten them.
11. Connect the console wire (J) to the Main Wire
(25).
IMPORTANT: The wire connectors should
slide together easily and snap into place with
an audible click. You must connect the wires
properly for your exercise bike to function
properly.
Then, insert the connectors and the excess wire
downward into the indicated opening (H).
