UM2278
User manual
Getting started with the STEVAL-SPIN3202 evaluation board,
advanced BLDC controller with embedded STM32 MCU
Introduction
The STEVAL-SPIN3202 3-phase brushless DC motor driver board is based on the STSPIN32F0A 3-
phase controller with integrated STM32 MCU.
It implements a single shunt resistor current reading topology and provides an easy-to-use solution for
device evaluation in different applications such as home appliances, fans, drones and power tools.
The board is designed for the sensored or sensorless six-step algorithm and Field Oriented Control with
single shunt current sensing.

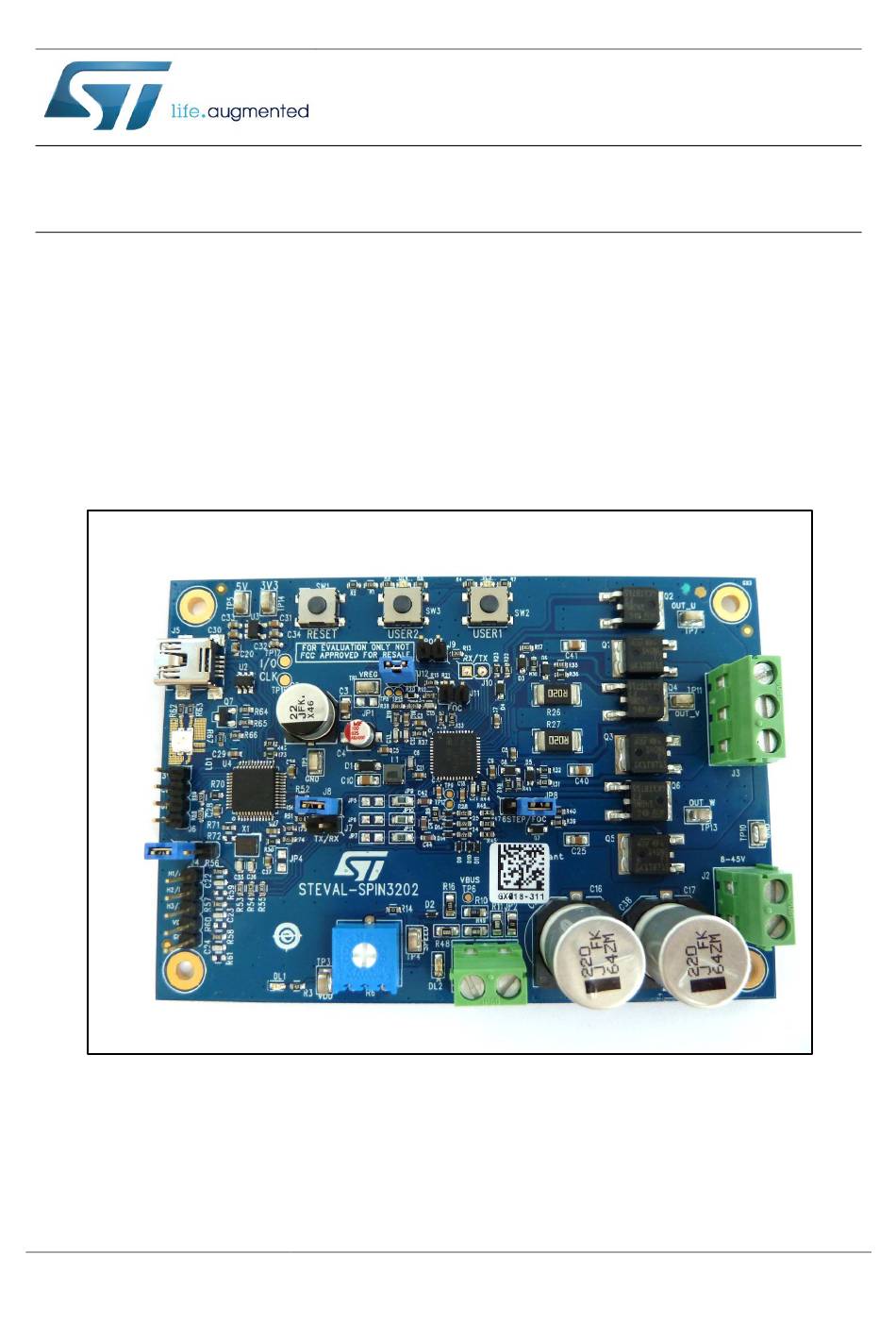

Figure 1: STEVAL-SPIN3202 evaluation board
September 2017
DocID030941 Rev 1
1/20
www.st.com
Advertisement
Table of Contents
Related Manuals for ST STEVAL-SPIN3202
Summary of Contents for ST STEVAL-SPIN3202
-
Page 1: Figure 1: Steval-Spin3202 Evaluation Board
BLDC controller with embedded STM32 MCU Introduction The STEVAL-SPIN3202 3-phase brushless DC motor driver board is based on the STSPIN32F0A 3- phase controller with integrated STM32 MCU. It implements a single shunt resistor current reading topology and provides an easy-to-use solution for device evaluation in different applications such as home appliances, fans, drones and power tools. -
Page 2: Table Of Contents
Contents UM2278 Contents Hardware and software requirements ..........5 Getting started ................. 6 Hardware description and configuration ..........6 Circuit description ................8 2.2.1 STEP/FOC selection ................8 2.2.2 Hall/encoder_connector motor speed sensor ........9 2.2.3 Overcurrent detection and current sensing measurement ....9 2.2.4 Bus voltage sensing circuit ............... - Page 3 Table 2: Connectors, jumpers and test points .................... 7 Table 3: Hall/encoder connector (J4) ......................9 Table 4: Overcurrent thresholds ......................... 9 Table 5: STEVAL-SPIN3202 bill of materials ................... 11 Table 6: Document revision history ......................19 DocID030941 Rev 1...
- Page 4 UM2278 List of figures Figure 1: STEVAL-SPIN3202 evaluation board ..................1 Figure 2: STEVAL-SPIN3202 evaluation board: jumper and connector positions ........6 Figure 3: STEVAL-SPIN3202 schematic (1 of 4) ..................15 Figure 4: STEVAL-SPIN3202 schematic (2 of 4) ..................16 Figure 5: STEVAL-SPIN3202 schematic (3 of 4) ..................
-
Page 5: Hardware And Software Requirements
PC (XP, Vista 7 , Windows 8, Windows 10 ) to install the software package; a mini-B USB cable to connect the STEVAL-SPIN3202 evaluation board to the PC; the STSW-SPIN3202 firmware example or the STM32 PMSM six-step software development kit (STSW-STM32100) (both available on www.st.com);... -
Page 6: Getting Started
The board maximum ratings are: power stage supply voltage (VS) from 6.7 V to 45 V; motor phase current up to 15 Arms. Hardware description and configuration Figure 2: STEVAL-SPIN3202 evaluation board: jumper and connector positions 6/20 DocID030941 Rev 1... -
Page 7: Table 1: Hardware Setting Jumpers
Selection motor power supply connected to DC power supply CLOSED Selection Hall encoder supply to USB (1)/VDD (3) power supply 1-2 CLOSED Selection reset of ST-LINK (U4) OPEN Selection PA0 connected to Hall 1 OPEN Selection PA1 connected to Hall 2... -
Page 8: Circuit Description
It also provides the circuitry to sense the motor BEMF (sensorless operation). The board includes an ST-LINK-V2 which allows the user to debug and download firmware without any extra hardware. The board also supports sensored or sensorless Field Oriented Control algorithm with single-shunt sensing. -
Page 9: Hall/Encoder_Connector Motor Speed Sensor
OC_COMP pin. When the peak current flowing though the shunt exceeds the selected threshold, the integrated comparator is triggered and all the high side power switches are disabled. The current threshold of the STEVAL-SPIN3202 varies according to the STSPIN32F0A OC threshold as listed in the following table. Table 4: Overcurrent thresholds Internal comp. -
Page 10: Bus Voltage Sensing Circuit
mass storage interface on USB The ST-LINK is supplied by the host PC through the USB cable connected to the board. The LED LD1 provides ST-LINK communication status information: Red LED flashing slowly: at power-on before USB initialization ... -
Page 11: Bill Of Materials
UM2278 Getting started 2.2.7 Bill of materials Table 5: STEVAL-SPIN3202 bill of materials Item Q.ty Ref. Part/Value Description Manufacturer Order code C1, C5, C7, C8, C9, C11, C19, C20, 100nF 50V N.A. 100NF_50V_X7R_0603 C26, C27, ±15% 603 C28, C29, C33, C34, 22µF 63V ±20%... - Page 12 Getting started UM2278 Item Q.ty Ref. Part/Value Description Manufacturer Order code STPS0560Z SCHOTTKY STPS0560Z SOD123 D2, D9, D10, D11, BAT30KFILM SCHOTTKY BAT30KFILM D12, D13, SOD523 D3, D4, 4148WS D5, D6, DIODE N.A. 4148WS SOD323 D7, D8 JP1, JP4, JP5, JP6, OPEN 805 N.A.
- Page 13 UM2278 Getting started Item Q.ty Ref. Part/Value Description Manufacturer Order code R2, R7, R8, R62, 100R 1/10W N.A. 100R_5%_0603 R63, R67, ±5% 603 330R 1/10W N.A. 330R_5%_0603 ±5% 603 120R 1/10W R4, R5 N.A. 120R_5%_0603 ±5% 603 100K 1/2W 0.1 L9.5_W4.9_H9.
- Page 14 Getting started UM2278 Item Q.ty Ref. Part/Value Description Manufacturer Order code 100K 1/10W R30, R70 N.A. 100K_5%_0603 ±5% 603 560R 1/10W N.A. 560R_5%_0603 ±5% 603 18K 1/10W ±5% R34, R38 N.A. 18K_5%_0603 33K 1/10W ±5% N.A. 33K_5%_0603 R44, R69, 4.7K 1/10W N.A.
-
Page 15: Schematic Diagrams
UM2278 Getting started 2.2.8 Schematic diagrams Figure 3: STEVAL-SPIN3202 schematic (1 of 4) SWD_IO OCC OMP PA 13 O CC O M P SWD_CLK OP1P PA 14 O P1P PA15 OP1N PA 15 O P1N UART1_TX OP1O PB 6 O P1O... -
Page 16: Figure 4: Steval-Spin3202 Schematic (2 Of 4)
Getting started UM2278 Figure 4: STEVAL-SPIN3202 schematic (2 of 4) 16/20 DocID030941 Rev 1... -
Page 17: Figure 5: Steval-Spin3202 Schematic (3 Of 4)
UM2278 Getting started Figure 5: STEVAL-SPIN3202 schematic (3 of 4) 6 STEP 5.6K Jumper 3 Jumper 4 OPEN CLOSED Jumper 5 CLOSED OPEN DocID030941 Rev 1 17/20... -
Page 18: Figure 6: Steval-Spin3202 Schematic (4 Of 4)
Getting started UM2278 Figure 6: STEVAL-SPIN3202 schematic (4 of 4) 18/20 DocID030941 Rev 1... -
Page 19: Revision History
UM2278 Revision history Revision history Table 6: Document revision history Date Revision Changes 26-Sep-2017 Initial release DocID030941 Rev 1 19/20... - Page 20 ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
