Cuckoo CP-DRP1201SW User Manual

Cuckoo CP-DRP1201SW User Manual

Electric water purifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User
anual
CP-DRP1201SW
CUCKOO Electric Water purifier
쿠쿠 냉온정수기

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-DRP1201SW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cuckoo CP-DRP1201SW

Summary of Contents for Cuckoo CP-DRP1201SW

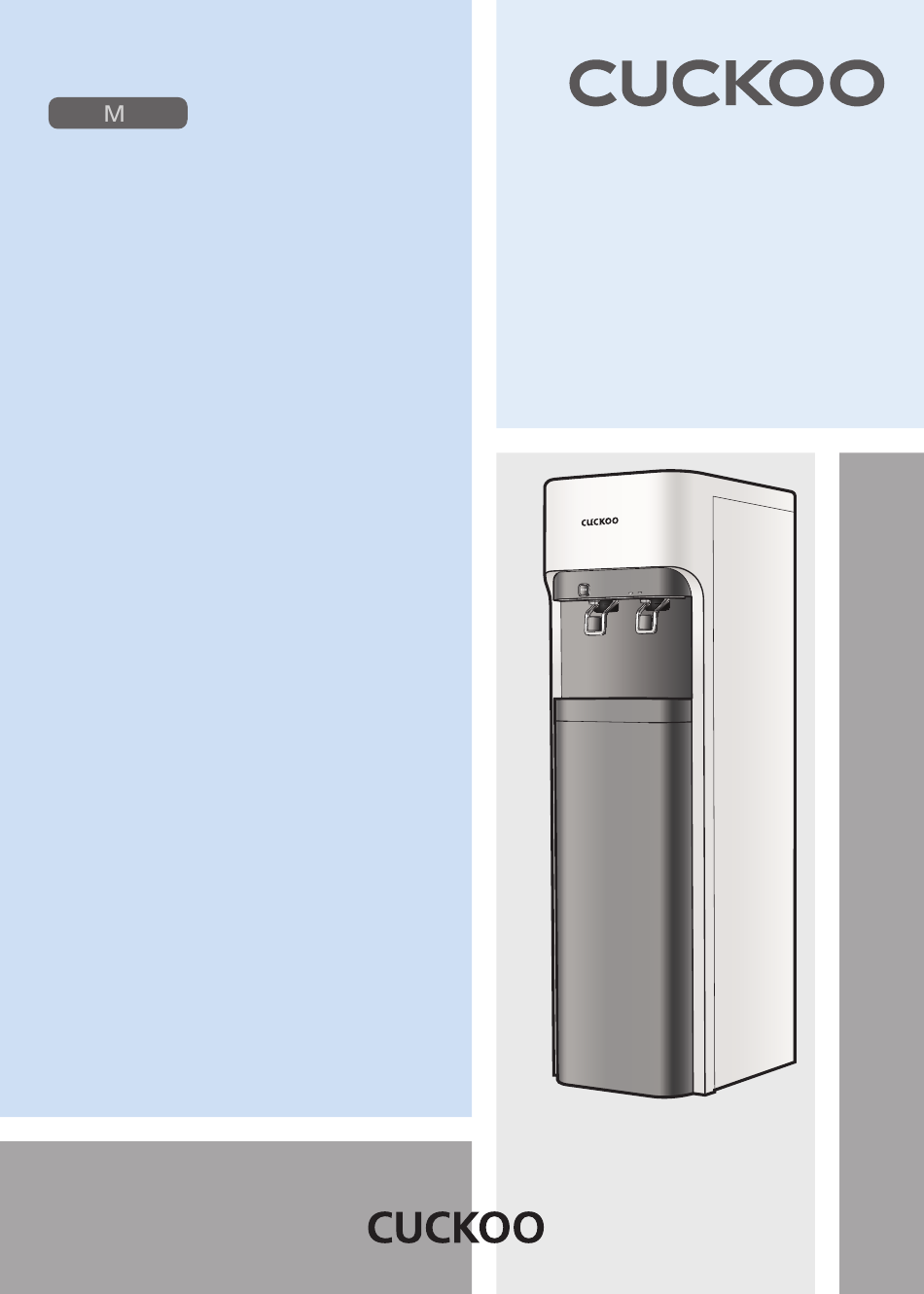

  • Page 1 User anual CP-DRP1201SW CUCKOO Electric Water purifier 쿠쿠 냉온정수기...
  • Page 2 Merits of Cuckoo Water Purifier 4-Step Filtration System The 4-step filtration system of Cuckoo Water Purifier makes clean and healthy water. Stainless Steel Water Tank Using a stainless steel water tank improves the water quality and cleanliness.

  • Page 3: Table Of Contents

    CONTENTS Before Use Warnings for Safe Use Cautions for Safe Use Name of Parts/Components Information How to Use Filtration Circuit/ Water Filtration System Details to Check before Installation 12~13 How To Install the Product 14~15 Details To Check before Use 15~16 How To Use 17~19...

  • Page 4: Warnings For Safe Use

    •We strongly recommend that the damaged parts be please wipe it clean before plugging it into the socket. repaired or replaced from the Cuckoo website. •Use an extension cord of 10 A or higher. •This may cause electric shock or fire due to a short circuit.
  • Page 5 Warnings for Safe Use About Power Supply Warning Do not Use 120V power Do not pull the power input only. cord when unplugging the product. •This may cause electric shock or fire. •Force applied to the power •The product will not operate cord may cause electric shock or fire.

  • Page 6: Installation Issues

    Warnings for Safe Use Installation Issues Do not Warning Do not place the Do not place it in an product in a place area with potential for with high moisture gas leak or near a or dust. heating product. •This may cause electric •This may cause fire or shock or fire.
  • Page 7 This will cause lukewarm water to be extracted. Please •It may cause malfunction or accidents. contact Cuckoo website or certified distributor . Instruction Warning If you smell burning or...

  • Page 8: Cautions For Safe Use

    Please use only genuine Cuckoo Filter. nued use, drain out water completely from •Use of any filter other than a genuine Cuckoo filter may the tank, and fill it with water and drain it out cause a decrease in water filtration performance, an again before use.

  • Page 9: Name Of Parts/Components Information

    Name of Parts / Components Information Name of Parts < Front > < Back > Child Lock Button "Cold" Button "Hot" Button Hot Water Indicator Cold Water Indicator Cold Water Faucet Cold Water Lever Hot Water Lever Hot Water Faucet Tray Tap Water Input Drain Water Outlet...

  • Page 10: Filtration Circuit/ Water Filtration System

    Step 4 smell of gases and organic materials. ※ If Cuckoo Filter (genuine) is not used or if the filter is used for a prolonged period, its performance could decrease. ▶ Uses of Drained Water - Use it while cleaning the cloths, house & toilets.

  • Page 11: Details To Check Before Installation

    Details to Check before Installation Details to Check before Installation Cautions when Installing the Product Do not place the product in direct sunlight or near a heating product. ▶ This may cause color changes or fire. Allow installation space. ▶ To allow convenient replacement of the filters, make sure the product is placed 20cm away from the wall and that 20cm 20cm...

  • Page 12: How To Install The Product 12~13

    How To Install the Product How To Install the Product ❸ Open ❶ Closed ❺ Cold Water Cold Water Pipe Supply Tap Water Input Tap Water Drain Water Outlet Drain Water Outlet Tube ❷ Close the cold water supply: ❶ - Turn the shut-off valve located under your sink clockwise.
  • Page 13 How To Install the Product Connect the sink feed line to T-Valve: ❺ - Connect the nut (from the sink faucet feed line) to the open end of the T-Valve and tighten. Make sure the connection between the T-Valve and sink feed line is secure. Connect ¼”...

  • Page 14: Details To Check Before Use 14~15

    ·If you press the power button without water in the tank, the safety feature will activate, so the hot water heater will not be heated.This will cause lukewarm water to flow. Then, visit CUCKOO website for more information. ·Frequently check if the water supply is cut off and if the tap water supply valve is closed. Do not turn on the “Cold”...
  • Page 15 Details to Check before Use/How To Use Details to Check before Use Empty the tray on a regular basis. Replace and clean the filters regularly. ▶ You need to regularly replace the filters to ensure clean water. ▶ Refer to Page 23 for the filter replacement cycle.

  • Page 16: How To Use 15~16

    How to Use How to Get Cold Water Press the“Cold”button to turn it on. It takes 60 minutes for the cooler (condenser) to cool the water. ▶ Before turning on the“Cold”button, make sure the water supply is available and the tap water supply valve is open.

  • Page 17: How To Clean The Cold Water Tank 17~19

    How to Clean the Cold Water Tank How to Clean the Cold Water Tank First close the tap water supply valve. Closed Press the“Hot”/“Cold” button to turn it off. Unplug the power plug for safety. Drain the cold water tank through the cold water faucet.
  • Page 18 How to Clean the Cold Water Tank How to Clean the Cold Water Tank Remove the lid cover of the product. ▶ Requires a phillips head “+” screwdriver. Remove the cover from the cold water tank. ▶ The upper part of cold water tank is slightly warm because it contains ambient water and hot water steam.
  • Page 19 How to Clean the Cold Water Tank How to Clean the Cold Water Tank Reassemble the separator to the cold water tank. ▶ Cautiously press the separator into place. If it is not placed properly, the operation of the compressor will be effected, which can cause noise. Please make sure place the separator properly.

  • Page 20: How To Clean Tray

    How to Clean Tray How to Clean Tray Separation of Tray ▶ Hold and move the tray upwards to separate the tray. Separation of Tray Cover ▶ After removing the tray, pull from the hole of the cover on the top of the tray to separate the tray cover.
  • Page 21 How to Replace the Filter (CUCKOO Filter (genuine) must be used) Close the tap water supply valve. Closed Remove the remaining pressure inside the pipe. ▶Drain approximately 3~4 cups (500cc) of water from the cold water faucet. Turn off the“Hot”/“Cold”...

  • Page 22: How To Replace The Filter 21~23

    How To Replace the Filter How to Replace the Filter (CUCKOO Filter (genuine) must be used) Before replacing the filter, detach the connecting tube of the filter you wish to replace. ▶ Detach the connecting tube using an appropriate tool (fitting separator). Damage to the fitting and/or connecting tube may cause water leak.
  • Page 23 How To Replace the Filter How to Replace the Filter (CUCKOO Filter (genuine) must be used) (Stand Type) Place the lower front cover again and fasten it with screws. ▶ Find the accurate place of the screws to ensure the cover to be fastened properly.

  • Page 24: Expected Filter Replacement Cycle

    Expected Filter Replacement Cycle Sediment 1800L / 6 months 1800~2400L /6~8 months Sediment 3.0 (optional) 1800L / 12 months Precarbon 2.0 CP-DRP1201SW 3600~5400L / 24months RO membrane Natural 2.0 3600L / 12 months Mineralizer (optional) 3600L / 12 months ※ Note: the above replacement cycles are estimates only and may vary depending on feedwater condition.

  • Page 25: How To Install The Overturning Prevention Wire

    How to install the Overturning prevention wire How to install the Overturning prevention wire To prevent overturning of the water purifier, make sure to attach the overturning prevention wire on the wall. Please attach to the wall when wire and pin are expanded.

  • Page 26: Please Check Before Asking For Support

    •Is it time to replace the filter(s)? •Replace the filter (with a genuine filter of Cuckoo). •Have you not used hot water for a long •Drain the water from the hot water tank through the time? hot water drain tube from the back.
  • Page 27 ▼ When the Water Purifier is not used properly, in compliance with the User Manual, the product may operate abnormally even if it is not broken down. In such case, please take the following instructions accordingly. If you cannot solve the problem, please contact Cuckoo website. Problem...

  • Page 28: Product Specifications

    Product Specification Product Name Drinking Water Coolers Types Stand Type Model CP-DRP1201SW Rated Voltage AC 120V / 60Hz Power Consumption Hot : 465W(3.9A) / Cold : 120W(1.9A) / TOTAL : 585W(5.8A) Purification Method Reverse Osmosis Filtration System SEDIMENT / SEDIMENT 3.0 PRE CARBON 2.0...
  • Page 29 MEMO...
  • Page 30 MEMO...
  • Page 31 MEMO...
  • Page 32 MEMO...
  • Page 33 MEMO...
  • Page 34 CUCKOO ELECTRONICS AMERICA INC Z0306-0799E0 Rev.0...
