  • Page 1 WATER PURIFIER USER GUIDE CP-FR601SW SERIES...
  • Page 2 This manual will guide you when you use and when functions do not work properly. Merits of Cuckoo Water Purifier. 4-Step Filtration System The 4-step filtration system of Cuckoo Water Purifier makes clean and healthy water. Stainless Steel Water Tank Using a stainless steel water tank improves the water quality and cleanliness.

  • Page 3: Table Of Contents

    CONTENTS Before Use Warnings for Safe Use Cautions for Safe Use Names of Parts / Information on Components How to Use Filtration Circuit / Filtration System Details to Check before Installation How to Install the Product 12~13 Details to Check before Use 14~15 How to Use 15~16...

  • Page 4: Warnings For Safe Use

    •We strongly recommend that the damaged parts be please wipe it clean before plugging it into the socket. repaired or replaced from the Cuckoo website. •Use an extension cord of 10 A or higher. •This may cause electric shock or fire due to a short circuit.
  • Page 5 Warnings for Safe Use About Power Supply Warning Do not Use 120V power Do not pull the power input only. cord when unplugging the product. •This may cause electric shock or fire. •Force applied to the power •The product will not operate cord may cause electric shock or fire.
  • Page 6 Warnings for Safe Use Installation Issues Prohibited Warning Do not place the Do not place it in an product in a place area with potential for with high moisture gas leak or near a or dust. heating product. •This may cause electric shock or fire.
  • Page 7 This will cause lukewarm water to be extracted. Please •It may cause malfunction or accidents. contact Cuckoo website or certified distributor . Instruction Warning If you smell burning or...

  • Page 8: Cautions For Safe Use

    Please use only genuine Cuckoo Filter. nued use, drain out water completely from •Use of any filter other than a genuine Cuckoo filter may the tank, and fill it with water and drain it out cause a decrease in water filtration performance, an again before use.

  • Page 9: Names Of Parts / Information On Components

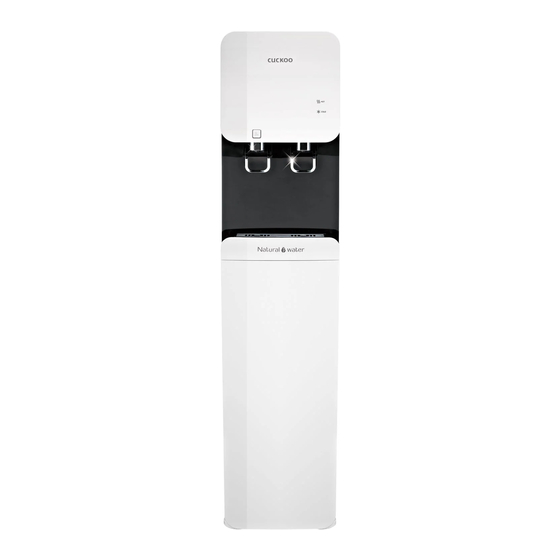

    Names of Parts / Information on Components Names of Parts Stand Type : CP-FR601SW Hot Water Lever Hot Water Faucet Child Lock button “Hot”button Full Indicator “Cold”button Hot Water Indicator Cold Water Indicator Power Cord Cold Water Faucet Cold Water Lever Tray Drain Tube Connecting Hole Tray...

  • Page 10: Filtration Circuit / Filtration System

    Step 4 smell of gases and organic materials. ※ If Cuckoo Filter (genuine) is not used or if the filter is used for a prolonged period, its performance could decrease. ▶ Uses of Drained Water - Use it while cleaning the cloths, house & toilets.

  • Page 11: Details To Check Before Installation

    Details to Check before Installation Details to Check before Installation Cautions when Installing the Product Do not place the product in direct sunlight or near a heating product. ▶ This may cause color changes or fire. Allow installation space. ▶ To allow convenient replacement of the filters, make sure the product is placed 20cm away from the wall and that the distance of the water supply hose connecting the product to the water supply valve is less than 5m.

  • Page 12: How To Install The Product 12~13

    How to Install the Product How to Install the Product ❶ Close ❹ ❸ Open Cold water pipe Tap water supply valve ❷ Drain Water Outlet Tray drain tube Water Input connecting hole Tap water supply tube Drain water outlet Tube Close the cold water supply: ❶...
  • Page 13 How to Install the Product Connect the sink feed line to T-Valve: ❺ - Connect the nut (from the sink faucet feed line) to the open end of the T-Valve and tighten. Make sure the connection between the T-Valve and sink feed line is secure. Connect ¼”...

  • Page 14: Details To Check Before Use 14~15

    ・If you press the power button without water in the tank, the safety feature will activate, so the hot water heater will not be heated.This will cause lukewarm water to flow. Then, visit CUCKOO website for more information. ・Frequently check if the water supply is cut off and if the tap water supply valve is closed. Do not turn on the “Cold”...
  • Page 15 Details to Check before Use / How to Use Details to Check before Use Empty the tray on a regular basis. Replace and clean the filters regularly. ▶ You need to regularly replace the filters to ensure clean water. ▶ Refer to Page 23 for the filter replacement cycle.

  • Page 16: How To Use 15~16

    How to Use How to Get Cold Water Press the“Cold”button to turn it on. It FULL takes 60 minutes for the cooler (condenser) to cool the water. COLD ▶ Before turning on the“Cold”button, make sure the water supply is available and the tap water supply valve is open.

  • Page 17: How To Clean The Cold Water Tank 17~19

    How to Clean the Cold Water Tank How to Clean the Cold Water Tank First close the tap water supply valve. Close Press the“Hot”/“Cold” button to turn it off. Unplug the power plug for safety. Drain the cold water tank through the cold water faucet.
  • Page 18 How to Clean the Cold Water Tank How to Clean the Cold Water Tank Remove the lid cover of the product. ▶ Requires a phillips head “+” screwdriver. 잠금 Remove the cover from the cold water tank. ▶ The upper part of cold water tank is slightly warm because it contains ambient water and hot water steam.
  • Page 19 How to Clean the Cold Water Tank How to Clean the Cold Water Tank Reassemble the separator to the cold water tank. ▶ Cautiously press the separator into place. If it is not placed properly, the operation of the compressor will be effected, which can cause noise. Please make sure place the separator properly.

  • Page 20: How To Clean Tray / How To Clean Faucet

    How to Replace the Filter How to Clean Tray Separation of Tray ▶ Hold and move the tray upwards to separate the tray. Separation of Tray Cover ▶ After removing the tray, pull from the hole of the cover on the top of the tray to separate the tray cover.

  • Page 21: How To Replace The Filter 21~23

    How to Replace the Filter How to Replace the Filter (CUCKOO Filter (genuine) must be used) Close the tap water supply valve. Close Remove the remaining pressure inside the pipe. ▶Drain approximately 3~4 cups (500cc) of water from the cold water faucet.
  • Page 22 How to Replace the Filter How to Replace the Filter (CUCKOO Filter (genuine) must be used) Before replacing the filter, detach the connecting tube of the filter you wish to replace. ▶ Detach the connecting tube using an appropriate tool (fitting separator). Damage to the fitting and/or connecting tube may cause water leak.
  • Page 23 How to Replace the Filter How to Replace the Filter (CUCKOO Filter (genuine) must be used) (Stand Type) Place the lower front cover again and fasten it with screws. ▶ Find the accurate place of the screws to ensure the cover to be fastened properly.

  • Page 24: Recommended Filter Replacement Cycle

    Filter Arrangement / How to Install Overturning Prevention Wire Recommended Filter Replacement Cycle ▶ The filter replacement cycle is determined with the use of 10 L, and may be affected by the condition of tap water. Model Sediment Filter 1800L 1800L / 6 months Sediment 1800~2400L /6~8 months...

  • Page 25: Filter Arrangement / How To Install Overturning

    Filter Arrangement / How to Install Overturning Prevention Wire Filter Arrangement CP-FR601SW Step 4 Step 1 Step 2 Step 3 Natural Sedim 2.0 or ent or Memb Carbon Mineraliz Sedim rane How to Install Overturning Prevention Wire To prevent overturning of the water purifier, make sure to attach the overturning prevention wire on the wall.

  • Page 26: Please Check Before Asking For Support 26~27

    •Is it time to replace the filter(s)? •Replace the filter (with a genuine filter of Cuckoo). •Have you not used hot water for a long •Drain the water from the hot water tank through the time? hot water drain tube from the back.
  • Page 27 ▼ When the Water Purifier is not used properly, in compliance with the User Manual, the product may operate abnormally even if it is not broken down. In such case, please take the following instructions accordingly. If you cannot solve the problem, please contact Cuckoo website. Problem...

  • Page 28: Product Specifications

    Product Specifications Product Name Drinking Water Coolers Types Stand Type Model CP-FR601SW Rated Voltage Single phase current AC 120V/60Hz Power Consumption Hot : 465W(3.9A) / Cold : 100W(1.3A) / TOTAL : 565W(5.2A) Purification Method Reverse Osmosis Filtration System SEDIMENT / SEDIMENT 3.0 PRE CARBON 2.0 Filter Types (Materials)
  • Page 29 MEMO...
  • Page 30 MEMO...
  • Page 31 MEMO...
  • Page 32 http://www.cuckooamerica.com We provide satisfying consultation and services concerning your complaints, suggestions, and recommendations upon receiving your troubled product model name, status, and contact information. ♣ After reading this manual, keep it in a place easily accessible to the user for future reference. ♣...
