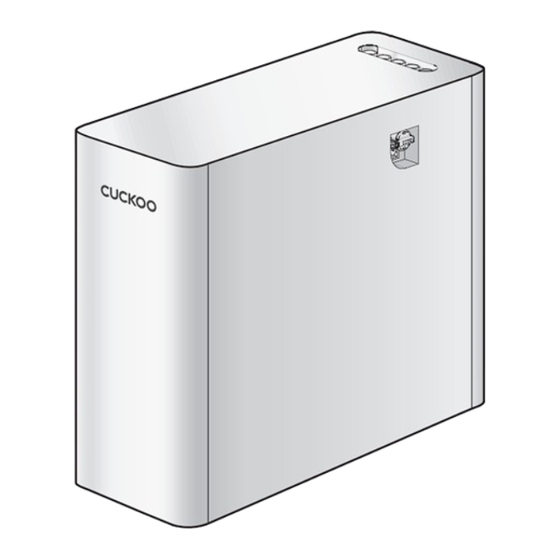

Cuckoo CP-ADR031UW User Manual

Under sink water purifier
Hide thumbs Also See for CP-ADR031UW:
Table of Contents

Advertisement

Quick Links

Download this manual

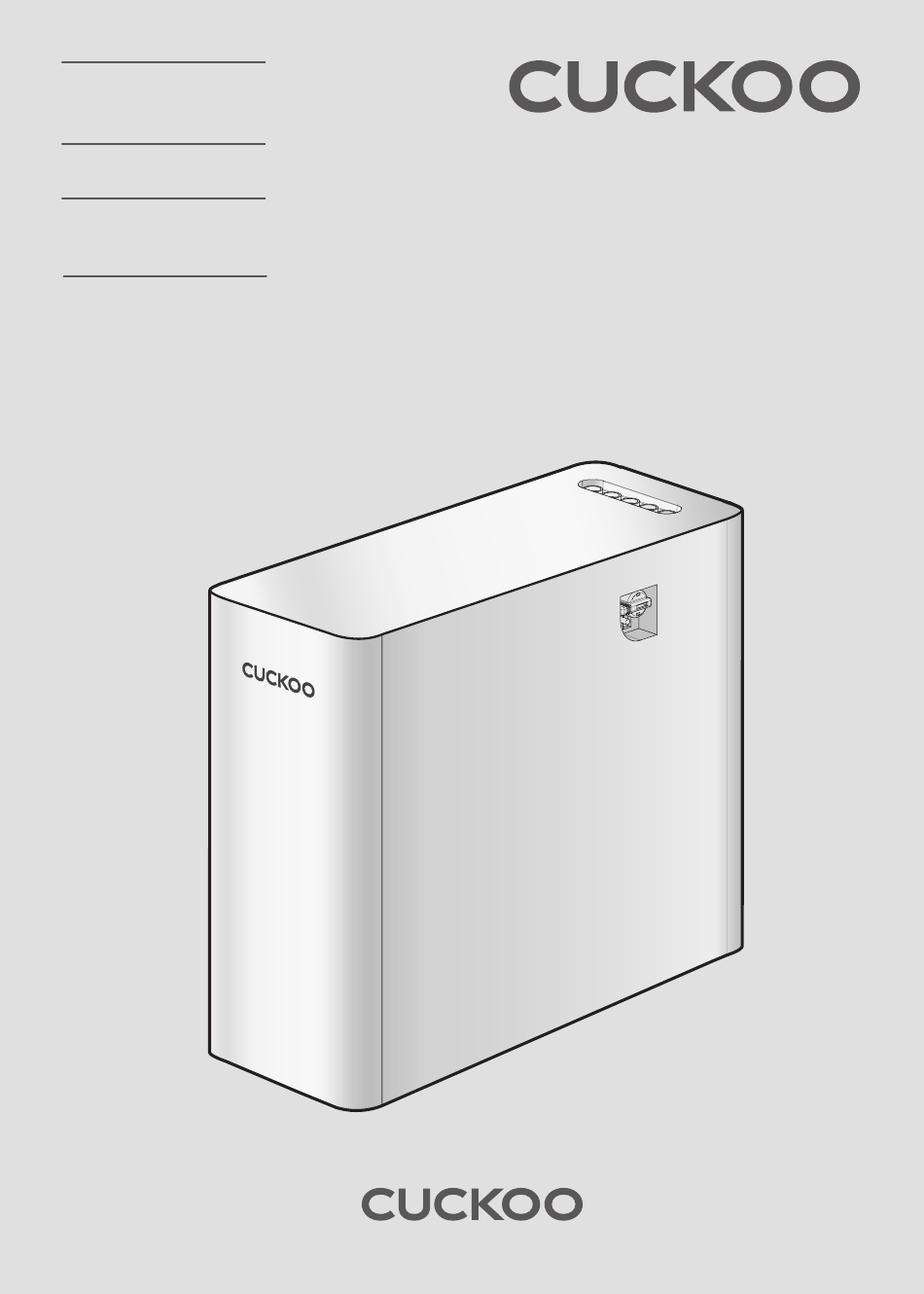

UNDER SINK
WATER PURIFIER
USER GUIDE
CP-ADR031UW
CP-ADR051UW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-ADR031UW and is the answer not in the manual?

Questions and answers

Related Manuals for Cuckoo CP-ADR031UW

Summary of Contents for Cuckoo CP-ADR031UW

  • Page 1 UNDER SINK WATER PURIFIER USER GUIDE CP-ADR031UW CP-ADR051UW...
  • Page 2 To our customers! Thank you for choosing CUCKOO Water Purifier. Please keep this User Manual (including the Warranty) for your reference. This manual will guide you when you use and when functions do not work properly. Merits of Cuckoo Water Purifier.

  • Page 3: Table Of Contents

    CONTENTS Before Use Warnings for Safe Use Cautions for Safe Use Part Names & Accessories How to Use Filtration Circuit / Filtration System Checklist Before Use How to Install the Product Checklist Before Use / How to Operate How to Replace the Filter 13~14 Expected Filter Replacement Cycle / Recommendations...

  • Page 4: Warnings For Safe Use

    Warnings for Safe Use Please comply with the 'Warnings for Safe Use' as they are provided to ensure safe and proper use of the product and prevent accidents and dangerous situations. The 'Warnings for Safe Use' section is divided into 'Warning' and 'Caution' which are defined as follows. •This symbol is to remind you to be cautious about a Warning potentially dangerous situation under special ircumstances.
  • Page 5 Warnings for Safe Use Installation Issues Prohibited Warning Avoid direct sunlight Do not place the product in an area and high temperature. that falls below 0℃. •This may cause color changes. •This may cause the filter or the internal components to freeze, causing malfunction.

  • Page 6: Cautions For Safe Use

    •Please refer to Page 15 for the filter replacement cycle. Please use only Cuckoo Filter (genuine). •If you use any other filter than genuine Cuckoo Filter, it may cause a decrease in water filtrating performance, an abnormal taste of water, water leak, and a malfunction.

  • Page 7: Part Names & Accessories

    Part Names & Accessories Names of Parts < TOP > DRAIN TANK OUTPUT INPUT < LEFT > < RIGHT > AS COVER LEFT FILTER VALVE RIGHT FILTER VAVLE LEFT FILTER COVER RIGHT FILTER COVER Accessories User Manual Service Card Water Faucet Installation Kit...

  • Page 8: Filtration Circuit / Filtration System 8~9

    Filtration Circuit / Filtration System Filtration Circuit(CP-ADR031UW) Filtration System Step 1 Step 2 Step 3 PRE CARBON REVERSE OSMOSIS NATURAL 3.0 BLOCK 3.0 MEMBRANE FILTER FILTER FILTER The 3-Stage Filtration System • Featuring a multiple-stage filtration process, the water purifier can provide crisp-tasting, bottled-quality mineral water straight from your tap.
  • Page 9 Filtration Circuit / Filtration System Filtration Circuit(CP-ADR051UW) Filtration System Step 1 Step 2 Step 3 Step 4 Step 5 SEDIMENT SEDIMENT 3.0 PRE CARBON REVERSE OSMOSIS NATURAL 3.0 FILTER FILTER BLOCK 3.0 MEMBRANE FILTER FILTER FILTER The 5-stage water filtration system •...

  • Page 10: Checklist Before Use

    Details to Check before Installation Details to Check before Installation Cautions when Installing the Product Do not place the product in direct sunlight or near a heating product. ▶ This may cause color changes or fire. Allow installation space. ▶ To allow convenient replacement of the filters, make sure the product is placed 20cm away from the wall and that the distance of the water supply hose connecting the product to the water supply valve is less than 5m.

  • Page 11: How To Install The Product

    How to Install the Product How to Install the Product Ro Storage Tank Water Faucet ❶ Close Open DRAIN TANK OUTPUT INPUT Cold water pipe Tap water ❼ supplying valve Drain Water Outlet Tap water supply tube ❶ Shut off the cold water supply. - Turn the shut-off valve (located underneath the sink) clockwise to shut off the cold water supply.

  • Page 12: Checklist Before Use / How To Operate

    Checklist Before Use / How to Operate Open the Tap Water Supply Valve. ▶ Open the Tap Water Supply Valve, and check if there is water leak on each connection part. - Tap Water Supply Valves and water (inlet) and drain of the product.

  • Page 13: How To Replace The Filter 13~14

    How to Replace the Filter How to Replace the Filters Turn the faucet valve from CLOSE to OPEN. CLOSE ▶ It shuts off the water supply to prevent water from flowing when replacing the filter. OPEN Drain out all remaining water in the water storage tank.
  • Page 14 How to Replace the Filter CLOSE OPEN...

  • Page 15: Expected Filter Replacement Cycle

    Expected Filter Replacement Cycle / Recommendations Recommended Filter Replacement Cycle ▶ The cycle of filter replacement may be affected by the status of the tap water. Filter Name Recommended Filter Replaement Cycle SEDIMENT FILTER 1,200L SEDIMENT 3.0 FILTER 2,400L 2,400L PER CARBON BLOCK 3.0 FILTER 3,600L REVERSE OSMOSIS FILTER...

  • Page 16: Filter Arrangement

    Filter Arrangement Filter Arrangement < CP-ADR031UW > NATURAL FILTER CARBON FILTER BLOCK 3.0 FILTER < CP-ADR051UW > < LEFT > < RIGHT > NATURAL SEDIMENT SEDIMENT FILTER CARBON FILTER FILTER BLOCK FILTER 3.0 FILTER...

  • Page 17: Troubleshooting 17~18

    TROUBLESHOOTING ▼ If you do not comply with this User Manual, the product may not work properly even if there is no malfunction. Please take the following measures accordingly if there is a problem with the product. If the problem persists, please contact our Customer Service Center.
  • Page 18 The noise is caused by the water flow in, which is normal. •Do you need to replace the filters? •Replace the Filter. (Do not use a Non-Cuckoo filter.) There are floating matters in the dispensed water.

  • Page 19: Product Specifications

    The Faucet’s flow rate can differ based on the amount of filtered water inside the Water Storage Tank at any given time. ※ Specifications and other details may be subject to change without prior notice for product improvement. ※ Manufacturer: Cuckoo Homesys Co., Ltd.
  • Page 20 https://cuckoorental.com   https://cuckooamerica.com  888.700.0425 We provide satisfying consultation and services concerning your complaints, suggestions, and recommendations upon receiving your troubled product model name, status, and contact information. ♣ After reading this manual, keep it in a place easily accessible to the user for future reference. ♣...

This manual is also suitable for:

Cp-adr051uw
