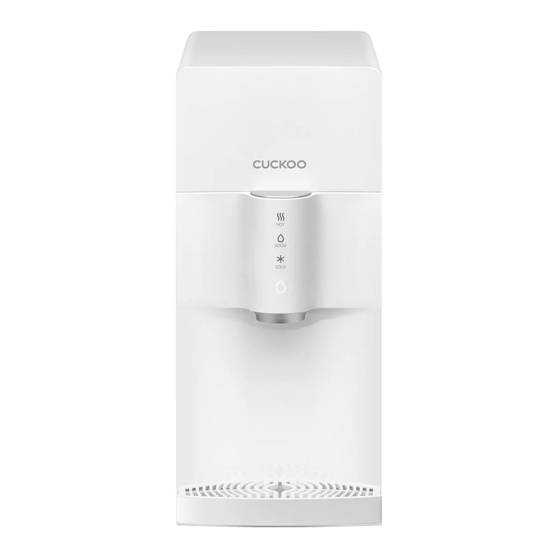

WATER
PURIFIER
USER GUIDE
CP-XN501HW
CUCKOO International (MAL) SDN BHD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-XN501HW and is the answer not in the manual?

Questions and answers

Ali
July 17, 2025

Is there something I can do when I go for a long holiday trip. Something like "Standby mode" or "Holiday mode"?

0

Subscribe to Our Youtube Channel

Related Manuals for Cuckoo CP-XN501HW

Summary of Contents for Cuckoo CP-XN501HW

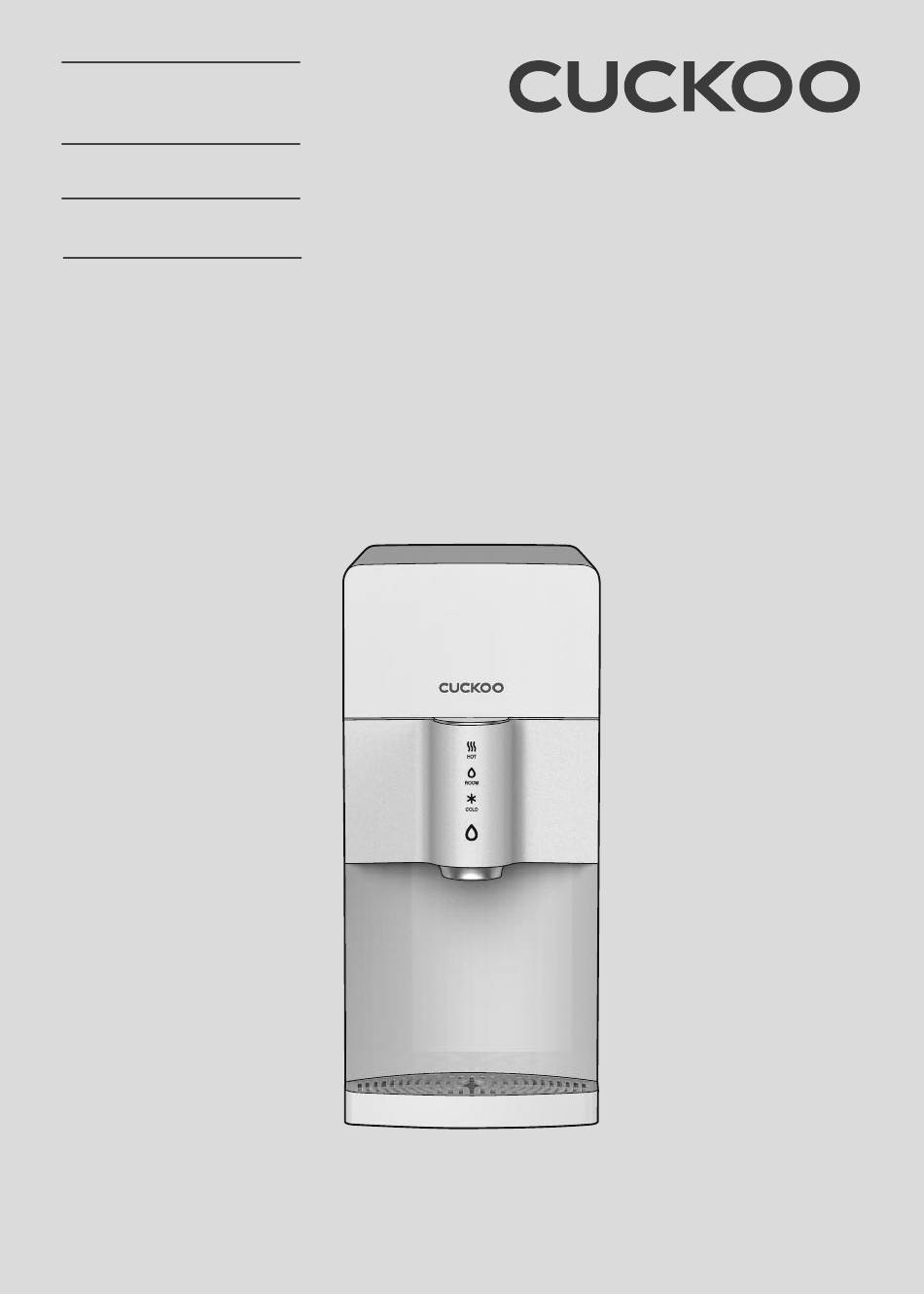

  • Page 1 WATER PURIFIER USER GUIDE CP-XN501HW CUCKOO International (MAL) SDN BHD...
  • Page 2 Dear customers! Thank you for purchasing CUCKOO Electric Water purifier. Please retain this manual (including the Warranty) for future reference. This manual will be of great help when you have any question or when the functions do not work properly.

  • Page 3: Table Of Contents

    CONTENTS Before Use Warnings for Safe Use Cautions for Safe Use Name of Parts/Components Information How to Use Filtration Circuit / Filtration System Details to Check before Installation How To Install the Product Details To Check before Use 13~14 How to use and set function 15~17 How To Clean the Cold Water Tank 18~20...
  • Page 4 Warnings for Safety Use Please comply with the ‘Warnings for Safe Use’ to ensure safe and proper use of the ● product and prevent accidents and dangerous situations. The ‘Warnings for Safe Use’ section consists of ‘Warning’ and ‘Caution’ items, which are defined as follows: Warning ●...

  • Page 5: Before Use

    Warnings for Safety Use About Power Supply Warnings (Prohibitions) When unplugging the Use only one for the product, make sure alternating current to hold the plug and •This may cause electric not the cable. shock or fire. •Applying force to the Power •The product will not operate Cord may cause electric shock properly.
  • Page 6 Warnings for Safety Use Installation Issues Prohibitions Warnings Do not place the Do not place it in an product in a place product in a place with high moisture area with potential or dust. with high moisture •This may cause fire or explosion. Use tap water as the Do not install the product near the water supply, and...
  • Page 7 Warnings for Safety Use Prohibitions Warnings Do not place chemicals, Do not place any product water bottles or small which generates heat or metal materials on top flammable such as of the product. microwave, electric oven, candles or gas containers •They could fall into the product on top of the product.

  • Page 8: Cautions For Safe Use

    •Refer to Page 23 for the filter •Foreign substances may go replacement cycle. into the product. Use only the genuine Cuckoo Filters. After left idle for a long •If not, it may cause poor filter performance, an abnormal taste time, please drain the of water, water leak, and a malfunction of the product.

  • Page 9: Name Of Parts/Components Information

    Name of Parts / Components Information Name of Parts < Front > HOT WATER SELECT BUTTON ROOM WATER SELECT BUTTON COLD WATER SELECT BUTTON DISPENSE BUTTON Faucet Tray < Back > Cold Water Switch Hotd Water Switch Power cord Drain outlet Water Inlet External outlet Components Information...

  • Page 10: Filtration Circuit / Filtration System

    Removes germs, viruses(Norovirus), particles, Step 4 Nano Positive Filter heavy metals including iron, aluminum. ※ If Cuckoo Filter (genuine) is not used or used for a prolonged period, it may show reduced performance.

  • Page 11: Details To Check Before Installation

    Details to Check before Installation Details to Check before Installation Cautions when Installing the Product Do not place the product in direct sunlight or near a heating products. ▶ They may cause fire or discoloration of the product. Allow installation space. ▶...

  • Page 12: How To Install The Product

    How to Install the Product How to Install the Product Open Closed Cold Water Pipe Tap Water Supply Valve External Valve (Optional) Hot Water Drain Water Inlet External Outlet Tap Water External Tube Supply Tube ❶ Connect the water supply valve to the cold water pipe. ※Caution •Please make sure that the valve is closed before connecting it.

  • Page 13: Details To Check Before Use 13~14

    Details to Check before Use Caution Do not turn on the “Cold” and “Hot” switches with the tank empty. (It may cause a malfunction of the product.) •Fill up the tank first and then press the “Cold” and “Hot” switches. •Pressing the “Hot”...
  • Page 14 Details to Check before Use If it has been left idle for a long time or is newly installed, please drain the remaining water completely. After that, fill up the tank and then drain the water at least once again before use. Empty the tray on a regular basis.

  • Page 15: How To Use And Set Function 15~17

    How to Use and Set Functions How to Use and Set Functions Select [HOT, ROOM, or COLD] water. ▶ On stanby mode select [HOT, ROOM, or COLD] button. After selecting hot or cold water, if there is no button input for more than 7 seconds, it returns to standby mode.
  • Page 16 How to Use and Set Functions How to setting Room Water Temperature. ▶ On stanby mode, touch the [ROOM] button twice. ▶ After touching the [ROOM] button twice, if you touch the [HOT] button, room water temperature increase at the current set temperature. ▶...
  • Page 17 How to Use and Set Functions How to adjusting brightness. ▶ On Stanby mode, touch the [ROOM] button for 7 seconds to enter the brightness settings. ※ Level 1: It becomes darker than level 2. ▶ Press the [ROOM] button to set the brightness level ※...

  • Page 18: How To Clean The Cold Water Tank 18~20

    How to Clean the Cold Water Tank How to Clean the Cold Water Tank First, close the Tap Water Supply Valve. Closed Press the Cold and Hot switches to turn them off. Drain the Cold Water Tank completely through the Cold Water Dispense. ▶...
  • Page 19 How to Clean the Cold Water Tank Connect the hot water tube to the hot water faucet/drain respectively and drain the water inside the hot water tank completely. ▶ Please be careful with the hot water. ▶ Prepare the container large enough to house about 1L. ▶...
  • Page 20 How to Clean the Cold Water Tank Place the Separator back to the Cold Water Tank. ▶ Press down on the Separator to prevent it from separating. Noise occurs when the Separator is not firmly inserted, lengthening the operating time of the Compressor. Make sure the Separator is firmly placed.

  • Page 21: How To Clean Tray / How To Clean Faucet

    How to Clean the Tray / How to Clean the Faucet How to Clean the Tray Remove the Tray. ▶ Hold and uplift the Tray to separate it from the product. Remove the Tray Grill. ▶ Then detach the Tray Grill from the Tray by taking hold of and uplift the hole at the Grill.

  • Page 22: How To Replace The Filter 22~24

    How To Replace the Filters How to replace the Filters (Must use Genuine CUCKOO Water Purifier Filters only.) Close the water supply valve. Closed Drain the Cold Water tank Completely through the water faucet. ▶ Press [Cold] button. ▶ Press [Dispense] button until all water in the Cold tank is out (est.
  • Page 23 How To Replace the Filters In order to replace the filter, first separate the connecting tube at the upper part from the Fitting. ▶ Please make sure to use a proper tool (Fitting Separator) when removing the connecting tube from the fittings.
  • Page 24 How To Replace the Filters Place the top cover back in and screw firmly. ▶ Please use a screwdriver. Open the Tap Water Supply Valve to fill up the Tank to the Full Water level. Repeat twice. ▶ Refer to drain method in "How To Replace the Filter" and repeat the drainage twice. Open Fill the tank to maximum capacity and plug it in before turning on the "How"...

  • Page 25: Expected Filter Replacement Cycle

    (10L per day), and the status of water supply may affect the cycle. Expected Filter Replaement Model Filter Name Cycle 4 months Sediment Filter 8 months Pre-Carbon Block 2.0 Filter CP-XN501HW 12 months Natural 2.0 Filter 12 months Nano Positive Filter...

  • Page 26: Filter Arrangement

    Filter Arrangement Filter Arrangement Step 3 Step 1 -------- -------- Natural 2.0 Filter Sediment Filter Step 2 Step 4 -------- -------- Nano Positive Filter Pre-Carbon Block 2.0 Filter...

  • Page 27: Please Check Before Asking For Support 27~28

    Cold Water Tank. smell. •Is it the time to replace the Filter? •Replace the Filter (the genuine CUCKOO Filter). •Has it been a long time since you last used •Drain the water in the Hot Water Tank with the Hot hot water? Water Drain Tube, and frequently use hot water.
  • Page 28 Valve? suddenly. •Has the filter replacement cycle passed? •Replace the Filter (the genuine CUCKOO Filter). •Is the floor where the product is installed •Install the product on a flat and airm surface. There is a loud noise coming from the product.

  • Page 29: Product Specifications

    Product Specifications Product Name Electric Water Cooler (Electric Water Heater) Type Half Type Model CP-XN501HW Rated Voltage Single Phase AC 220-240V / 50 Hz Power Consumption 400W (COLD: 100W, HOT: 300W) Filtration Method Nano Positive Filtrating System Filters Sediment Filter Pre-Carbon Block 2.0 Filter...
  • Page 30 MEMO...
  • Page 31 MEMO...
  • Page 32 10383-0011A0 Rev.0...
