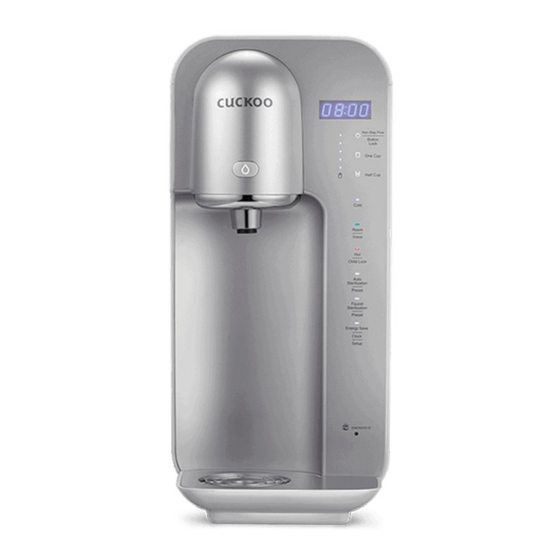

Cuckoo CP-JN011W User Manual

Electric water purifier
Hide thumbs

Advertisement

Table of Contents

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-JN011W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cuckoo CP-JN011W

Summary of Contents for Cuckoo CP-JN011W

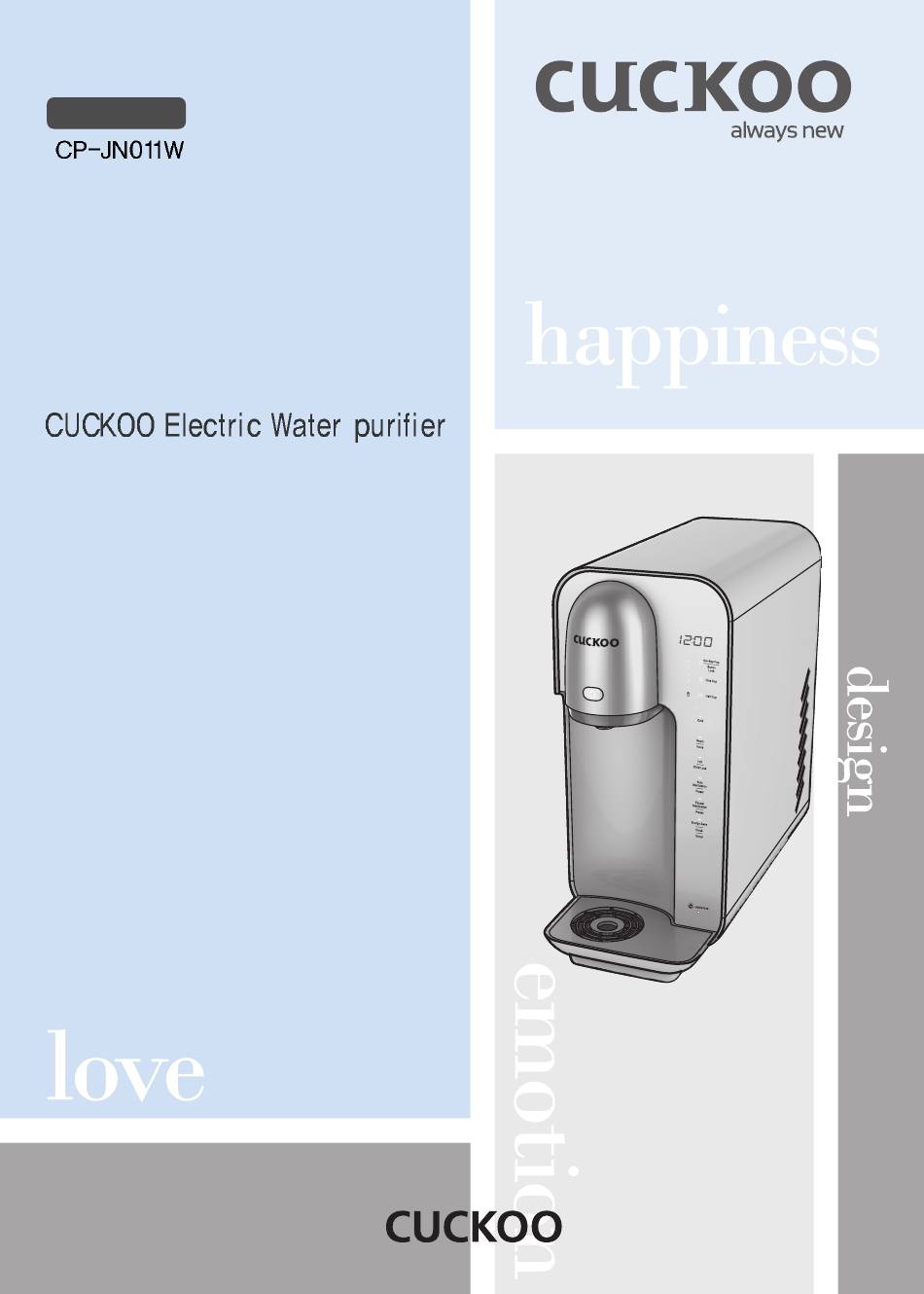

  • Page 1 User Manual...
  • Page 2 These are the merits of our Water urifier 2-Step Filtering System The 2-step filtering system of CUCKOO Water Purifier makes clean and healthy water including minerals. Sophisticated CUCKOO Electric Water Purifier with multiple functions You can use cold water, Room water, hot water, and sterilization on one water purifier, and also make a more efficient use of your space with it's slim and phisticated design.

  • Page 3: Table Of Contents

    CONTENTS Before Use Warnings for Safe Use Cautions for Safe Use Name of Parts / Accessories During Use Filtration Circuit / Filtration System How to Install the Product Details To Check before Use Function Setting How To Use How To Clean Tray / How To Clean Main Body How To Replace the Filters Expected Filter Replacement Cycle / Recommendations / Filter Arrangement...

  • Page 4: Warnings For Safe Use

    Warnings for Safe Use Please comply with the 'Warnings for Safe Use' as they are provided to ensure safe and proper use of the product and prevent accidents and dangerous situations. The 'Warnings for Safe Use' section is divided into 'Warning' and 'Caution' which are defined as follows. This symbol is to remind you to be cautious about a Warning potentially dangerous situation under special ircumstances.
  • Page 5 Warnings for Safe Use About the Power Supply Warning (Do not) Use only one for the When unplugging the altemating current product, hold the voltage of 220V-240V. Power Plug, not the Power Cord. This may cause electric shock of fire. The product will not operate properly.
  • Page 6 Warnings for Safe Use Installation Guide Warning (Do not) Avoid a place with much Do not place it in an moisture and dust and a area with potential place where water for gas leak or near spatters directly. a heating device. Install the product in a clean environment.
  • Page 7 Warnings for Safe Use During Use Warning (Do not) Do not place chemicals, Do not place any heating water bottles or small device, such as a microwave metal materials on top oven, electric oven or toaster, of the product. or inflammables, such as candles, gas containers, and They may enter the product and lighters on top of the product.

  • Page 8: Cautions For Safe Use

    Use only the genuine CUCKOO Filters. the water in the Tank, If you use another Filter than the genuine CUCKOO Filters, fill the Tank with water, it may cause a reduced purification performance, a strange and drain it again water taste, water leak, and malfunction of the product.

  • Page 9: Name Of Parts / Accessories

    Name of Parts Name of Parts < Front > Out Flow Display Panel button Faucet Tray...
  • Page 10 Name of Parts Name of Parts < Back > Top Cover Fastening Part Drain External Tap Water Hot/Cold Outlet Input Water Drain...
  • Page 11 Name of Parts Name of Parts < Details of Display Panel > FND, 88 SEGMENT Non-Stop Flow/Button Lock Button (Touch)+LED Cold Water Temperature One Cup Select Button Display LED (Touch)+LED Half Cup Select Button Out Flow Button (Touch)+LED (Tact)+LED "Cold" Button (Touch)+LED Faucet Lighting Room water/Voice Button (Touch)+LED...

  • Page 12: Filtration Circuit / Filtration System

    (Norovirus), remaining chlorine, and some heavy metals (lead, iron, aluminum, and hexavalent chrome). If the genuine filter manufactured by CUCKOO is not used or if the filter is used for a prolonged period, it will show reduced performance.

  • Page 13: How To Install The Product

    How to Install the Product How to Install the Product External Valve (Optional) Open Closed External Tube Cold Water Pipe Tap Water Supply Valve Pressure Reducing Tap Water Supply Tube Valve Tap Water Supply Tube External Outlet Drain Tube Connecting Tube Install the Tap Water Supply Valve, and close the valve.

  • Page 14: Details To Check Before Use

    Details To Check before Use Details To Check before Use Open the Tap Water Supply Valve. Open the Tap Water Supply Valve, and check if there is water leak on each connection part. Tap Water Supply Valve and the Tap Water Input and open the Drain of the product Connect the power supply.
  • Page 15 Waiting Status It is an Out Flow Waiting mode for extraction of cold water, Room water, and hot water (CP-JN011W). The Display Lamps on the front are turned ON according to the selected function, and display the current time. User Setting Mode You can set the function by pressing the Energy Save/Clock (Setting) button for three seconds in the Waiting status.

  • Page 16: Function Setting

    Function Setting How To Use the Cold Water function If the Cold Water function is turned OFF, press the "Cold" button for four seconds to turn ON the Cold Water function. While you are pressing the “Cold” button, the Voice Guide will say “Selecting Cold Water function”...
  • Page 17 Function Setting How To Extract Cold Water Check if the "Cold" Display Lamp is turned ON, and press the "Cold" button. The Voice Guide will say "Cold Water.“ In order to use the fixed Dispensing Volume, select the desired quantity from among the buttons of "Half Cup," "One Cup," and "Non-Stop Flow/Button Lock."...

  • Page 18: How To Use

    How To Use How To Use the Hot Water function Select the hot water by pressing the "Hot"/Hot Water Lock button. If you press the "Hot"/Hot Water Lock button, the "Hot"/Hot Water Lock Button Display Lamp will be turned ON. The Voice Guide will say "Hot Water.“...
  • Page 19 How To Use How To Use the Energy Save function This is a function to save energy by reducing the temperature of the cold water and the brightness of Display Lamps. Press the Energy Save/Clock (Setting) button while the Energy Save/Clock (Setting) Display Lamp is turned OFF.
  • Page 20 How To Use How To Change Voice Volume Press the Energy Save/Clock (Setting) button for three seconds in the Waiting status. The product will enter the User Setting mode. Set the Voice Volume Step by pressing the Room water/Voice button. Each time you press the button, the step will be changed by one step from the previously set voice level.
  • Page 21 How To Use How To Use Cold Water Circulating Pump Function (Low Noise Mode) Press the Energy Save/Clock (Setting) button for three seconds in the Waiting status. The product will enter the User Setting mode. Set the Cold Water Circulating Pump function by pressing the Automatic Sterilization/Preset button.
  • Page 22 How To Use How To Use the Automatic Sterilization Preset function If the Automatic Sterilization/Preset Button Display Lamp is turned ON in the Waiting status, the Automatic Sterilization Preset function is set to be used. Press the Automatic Sterilization/Preset button while the Automatic Sterilization/Preset Button Display Lamp is turned OFF.
  • Page 23 How To Use How To Use the Instant Automatic Sterilization function This is a function for the user to directly operate the buttons when you want to start the automatic sterilization not using the automatic sterilization Preset. The sterilization method and the time spent for the sterilization are the same as those for the reserved sterilization.
  • Page 24 How To Use How To Change Current Time Let the product enter the User Setting Mode by pressing the Energy Save/Clock (Setting) button for about three seconds in the Waiting status. After the product has entered the User Setting Mode, press the Energy Save/Clock (Setting) button again.
  • Page 25 How To Use How To Use the Drainage Function Let the product enter the User Setting Mode by pressing the Energy Save/Clock (Setting) button for about three seconds in the Waiting status. After the product has entered the User Setting Mode, press the Non-Stop Flow/Button Lock button.

  • Page 26: How To Clean Tray / How To Clean Main Body

    How To Clean Tray / How To Clean Main Body How to Clean Tray Disassembly of the Tray Hold the Tray, pull it forward and disassemble the Tray. When you pull the Tray, pull it slowly with both hands. If you strongly pull it, the water may pour out. Disassembly of Tray Grille Disassemble the Tray, hold and lift the hole of the Grille at the top of the Tray, and disassemble the Tray Grille.

  • Page 27: How To Replace The Filters

    How To Replace the Filters How To Replace the Filters (Use only the genuine CUCKOO Filters.) Close the Tap Water Supply Valve. closed Remove the residual pressure in the pipe. Put a cup under the Faucet, press the Room water button, and press the Out Flow button for about five seconds.
  • Page 28 How To Replace the Filters How To Replace the Filters (Use only the genuine CUCKOO Filters.) Take out a Filter from the product, and disassemble the Connector that connects Filter and Filter . You can disassemble with your hands without any separate tool.

  • Page 29: Expected Filter Replacement Cycle / Recommendations

    Expected Filter Replacement Cycle / Recommendations / Filter Arrangement Expected Filter Replacement Cycle The filter replacement cycle is determined with the use of 10 L per day at home as the standard, and may be affected by the condition of tap water. Filter Name Expected Replacement Cycle 4 months...

  • Page 30: Please Check Before Asking For Support

    Please check before asking for Support When the product is not used properly in compliance with the User Manual, the product may not work properly even if it is not out of order. Please take the following measures accordingly if there is a problem with the product. If there is still a problem, please contact our Customer Service Center.
  • Page 31 Haven't you closed the Tap Water Open the Tap Water Supply Valve. Supply Valve? decrease in the amount of Room Replace the Filter with a genuine CUCKOO Hasn't the time for replacing the filters water. Filter. passed? There is a loud Is the floor on which the product is Install the product on a flat and solid floor.

  • Page 32: Product Specifications

    Product Specifications Product Name Electric Water Purifier CP-JN011W Model Rated Voltage Single Phase AC 220V-240V / 50 Hz Power Consumption 2510W(Cold water : 110W, Hot water : 2400W) Nano Positive Filtrating System Filtration Method Filter Natural Plus Filter Charcoal, Silver Powder, Nylon-mesh, Ceramic Ball...
  • Page 36 Cuckoo International (MAL) Sdn. Bhd. (1102894H) A-20-4, Level 20, Northpoint Offices, Mid-Valley City, No. 1, Medan Syed Putra Utara, 59200, Kuala Lumpur, Malaysia Tel : +603-745 8888 Fax : +603-745 8899 00383-0989B0 Rev.1...
