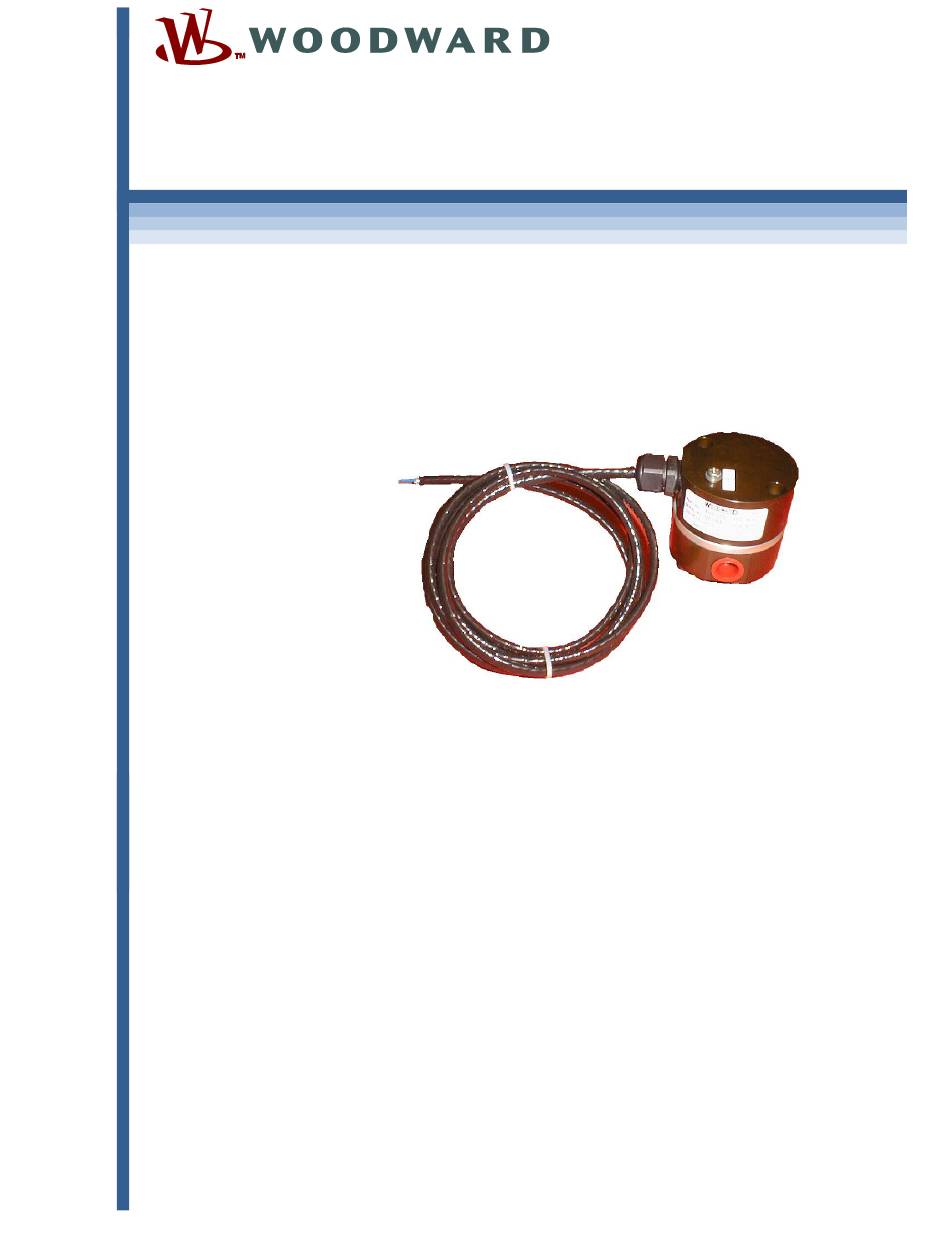

- Page 1 Product Manual 04153 (Revision P, 11/2016) Original Instructions SOGAV™ Solenoid Operated Gas Admission Valve Pre-Combustion Chamber (PCC) Valve SOGAV 2.2 Installation and Operation Manual...
- Page 2 Revisions—Changes in this publication since the last revision are indicated by a black line alongside the text. Woodward reserves the right to update any portion of this publication at any time. Information provided by Woodward is believed to be correct and reliable. However, no responsibility is assumed by Woodward unless otherwise expressly undertaken.
-
Page 3: Table Of Contents
PTIONS Product Support Options ..................14 Product Service Options ..................14 Returning Equipment for Repair ................15 Replacement Parts ....................15 Engineering Services .................... 16 Contacting Woodward’s Support Organization ............ 16 Technical Assistance .................... 17 ......... 18 PPENDIX NTERPRETING OLENOID ATINGS Introduction ...................... - Page 4 SOGAV 0.8 / 2.2 Manual 04153 Illustrations and Tables Figure 1-1a. SOGAV 2.2 Outline Drawing (MS Connector) ........2 Figure 1-1b. SOGAV 2.2 Outline Drawing (Cable/Gland) ........3 Figure 1-2. Electric Gas Admission (Main and Pre-Chamber Fuel Injection)..4 Figure A-1. Two Tier Current Waveform Parameters ...........19 Table A-1.
-
Page 5: Warnings And Notices
Start-up On- and off-highway Mobile Applications: Unless Woodward's control functions as the supervisory control, customer should install a system totally independent of the prime mover control system that... -
Page 6: Electrostatic Discharge Awareness
Do not touch the components or conductors on a printed circuit board with your hands or with conductive devices. To prevent damage to electronic components caused by improper handling, read and observe the precautions in Woodward manual 82715 , Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules. -
Page 7: Regulatory Compliance
Atmospheres Requirements pertain only to SOGAV™ 2.2 solenoids with the appropriate markings. SOGAV 2.2 solenoids are suitable for use in Class I, Division 2, Groups A, B, C, and D environments, per CSA for Canada and US, or non-hazardous location only. - Page 8 Class I, Division 2, or European Zone 2 wiring methods, and in accordance with the authority having jurisdiction. Wiring for the SOGAV 2.2 solenoid must be suitable for at least 105 °C and at least 10 °C above the maximum ambient temperature.
-
Page 9: Chapter 1. General Information
(the metering plate). The solenoid produces very high forces over short travels. The valve mechanism travels 0.25 mm from full closed to full open for the SOGAV 2.2 valve. The short travel along with the high forces result in fast and consistent opening and closing response. -
Page 10: Figure 1-1A. Sogav 2.2 Outline Drawing (Ms Connector)
SOGAV 0.8 / 2.2 Manual 04153 Figure 1-1a. SOGAV 2.2 Outline Drawing (MS Connector) Woodward... -
Page 11: Figure 1-1B. Sogav 2.2 Outline Drawing (Cable/Gland)
Manual 04153 SOGAV 0.8 / 2.2 Figure 1-1b. SOGAV 2.2 Outline Drawing (Cable/Gland) (for use in hazardous locations) Woodward... -
Page 12: Figure 1-2. Electric Gas Admission (Main And Pre-Chamber Fuel Injection)
SOGAV 0.8 / 2.2 Manual 04153 Figure 1-2. Electric Gas Admission (Main and Pre-Chamber Fuel Injection) Woodward... -
Page 13: Chapter 2. Installation/Adjustment
Tighten these screws evenly to a torque recommended by the engine manufacturer. Install the gas inlet line to the inlet side of the SOGAV 2.2 valve using a Parker O-Lok 6M16F80MLOS fitting or equivalent (per DIN 3852 Part 1). -
Page 14: Chapter 3. Application Guidelines
If the SOGAV valve is used for pre-chamber fuel admission, a check valve must be in place between the pre-chamber and the SOGAV 2.2 valve to prevent backflow of combustion gases. The SOGAV 2.2 valve is capable of 6 bar (600 kPa/87 psi) back pressure without backflow through the valve. -
Page 15: Sizing
Always consult a Woodward application engineer to determine the appropriate system and hardware for the specific application. To determine if the SOGAV 2.2 valve is sized appropriately for an application, use the following methodology: Assuming the full speed and full load condition: Port Injection: Determine the air manifold pressure required to achieve the desired A/F ratio. -
Page 16: Input Power Limitations
Manual 04153 Input Power Limitations Woodward solenoids are labeled with maximum rated values of input current and input power. These input ratings must not be exceeded during continuous solenoid operation, to prevent exceeding a prescribed coil temperature rise at the maximum rated ambient operating temperature. -
Page 17: Chapter 4. Servicing
Driver electronics used Therefore, SOGAV maintenance/reconditioning should be carried out at intervals determined by the engine manufacturer for the particular application. For optimum service/reconditioning, return SOGAV valves to Woodward, where trained personnel and sophisticated reconditioning and test equipment are available. -
Page 18: Chapter 5. Maintenance/Troubleshooting
2.3 to 2.6 Ω for the MS connector version of the SOGAV 2.2 valve or 2.5 to 2.9 Ω for the cable with gland nut version of the SOGAV 2.2 valve. Because of the low resistance levels, make sure to compensate for the meter lead resistance. - Page 19 Reset the power supply used in the previous test to a 4 A current limit. With no pressure applied to the SOGAV 2.2 valve, turn the switch ON and quickly reduce the current to 1.5 A (the valve can be continually operated at this current level without overheating).
- Page 20 (43.5 psi)? This will prevent valve pull-in. Are the cables and connectors in good condition? Each lead should have less than 0.4 Ω resistance. Have the cables been burnt? Are there intermittent connections at the connectors? Are the connectors tight? Woodward...
-
Page 21: Chapter 6. Specifications
The SOGAV™ valve is not IP rated. Performance Response (assumes the use of a Woodward In-Pulse™ control) is dependent on current wave form. The following times require an inlet pressure of 4 bar, outlet pressure of 2 bar, and the valve exit oriented down with respect to gravity. -
Page 22: Chapter 7. Product Support And Service Options
A current list of Woodward Business Partners is available at www.woodward.com/directory. Product Service Options Depending on the type of product, the following options for servicing Woodward products may be available through your local Full-Service Distributor or the OEM or Packager of the equipment system. -
Page 23: Returning Equipment For Repair
To prevent damage to electronic components caused by improper handling, read and observe the precautions in Woodward manual 82715, Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules. -
Page 24: Engineering Services
Field Service engineering on-site support is available, depending on the product and location, from one of our Full-Service Distributors. The field engineers are experienced both on Woodward products as well as on much of the non- Woodward equipment with which our products interface. -
Page 25: Technical Assistance
SOGAV 0.8 / 2.2 Technical Assistance If you need to contact technical assistance, you will need to provide the following information. Please write it down here before contacting the Engine OEM, the Packager, a Woodward Business Partner, or the Woodward factory: General... -
Page 26: Appendix . Interpreting Solenoid Ratings
(EADC) and “Equivalent Average Power” (EAP) ratings of Woodward Solenoids Introduction Woodward solenoids are labeled with maximum rated values of input current and input power. These input ratings must not be exceeded during continuous solenoid operation, to prevent exceeding a prescribed coil temperature rise at the maximum rated ambient operating temperature. -
Page 27: Equivalent Average Power (Eap)
Time (sec) = Pull-in Current = Hold-in Current = Initial Current Rise = Initial Fall of Pull-in Current = Initial Fall of Hold-in Current = Total Time of One Complete Current Waveform Figure A-1. Two Tier Current Waveform Parameters Woodward... -
Page 28: Sogav 2.2 Solenoids
5852-231 ..... 4.25 5852-237 ..... 4.25 5852-1087 ....4.25 Table A-1. Maximum Solenoid Coil Resistance (Rc) Values for Woodward SOGAV 2.2 Solenoids Coil resistance values listed represent the expected coil resistance when the coil has reached its maximum allowed operating temperature. -
Page 29: Revision History
Revision History Changes in Revision P— Added pressure requirements in Specifications section Changes in Revision N— Added new solenoid part number (Table A-1) Changes in Revision M— Removed disassembly information, since field disassembly is not recommended Woodward... -
Page 30: Declarations
SOGAV 0.8 / 2.2 Manual 04153 Declarations Woodward... - Page 31 Manual 04153 SOGAV 0.8 / 2.2 Woodward...
- Page 32 04153P Please reference publication ËB04153P¶¹ µ ¸ ´ ¹ Î PO Box 1519, Fort Collins CO 80522-1519, USA 1041 Woodward Way, Fort Collins CO 80524, USA Phone +1 (970) 482-5811 Fax +1 (970) 498-3058 Email and Website—www.woodward.com Woodward has company-owned plants, subsidiaries, and branches, as well as authorized distributors and other authorized service and sales facilities throughout the world.
