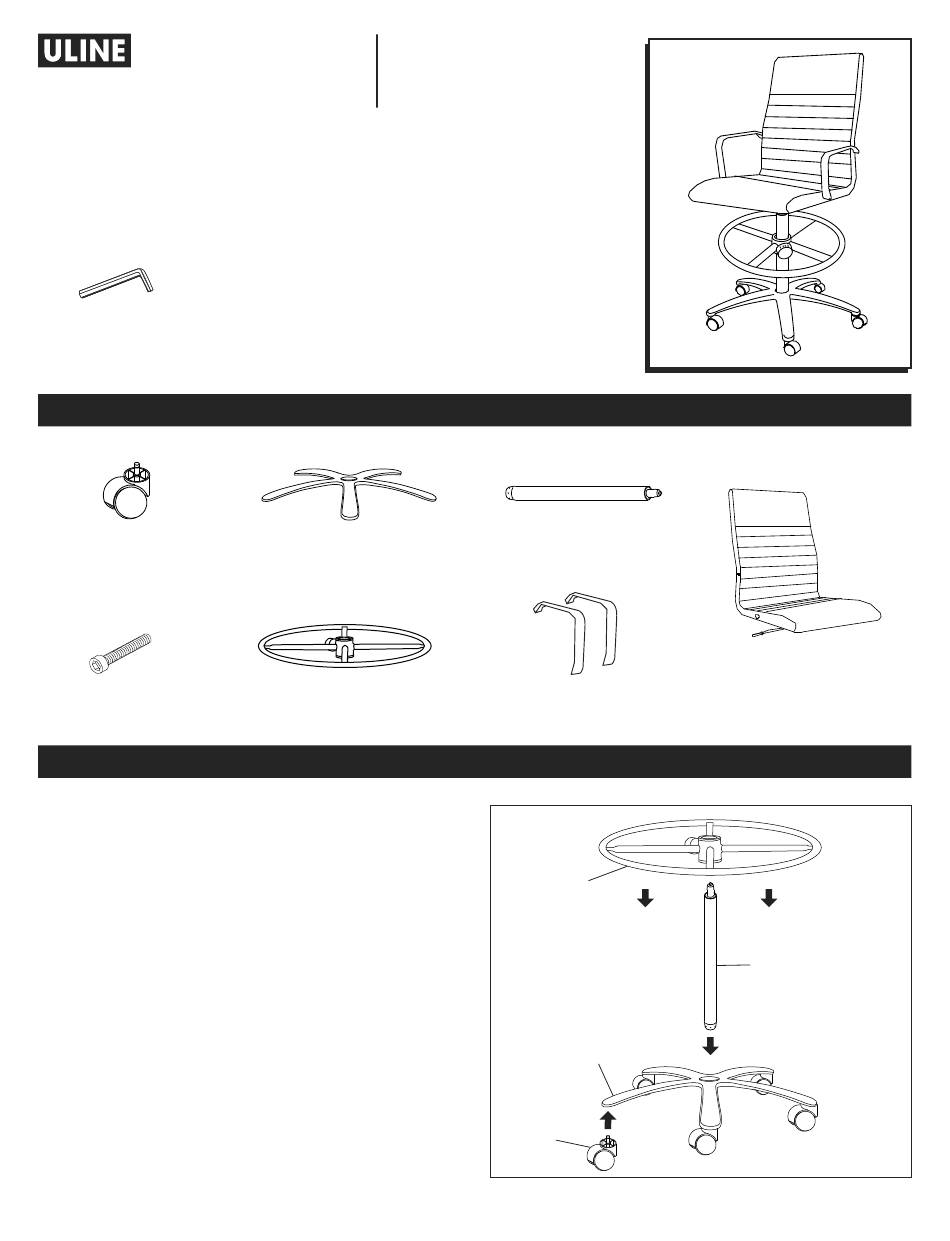

H-11688
LEATHER FASHION STOOL
TOOL NEEDED
Allen Wrench
(included)
Caster x 5
5/16 x 1¾" Screw x 4
1.
Insert casters into legs of five-star base. Turn base
upright. Insert gas lift into center of base. Attach
foot ring to gas lift. (See Figure 1)
PAGE 1 OF 6
1-800-295-5510
uline.com
PARTS
5-Star Base x 1
Foot Ring x 1
ASSEMBLY
Pour le français, consulter les pages 5-6.
Gas Lift x 1
Armrest x 2
Figure 1
Foot Ring
5-Star Base
Caster
Para Español, vea páginas 3-4.
Back and Seat Cushion x 1
Gas Lift
1124 IH-11688
