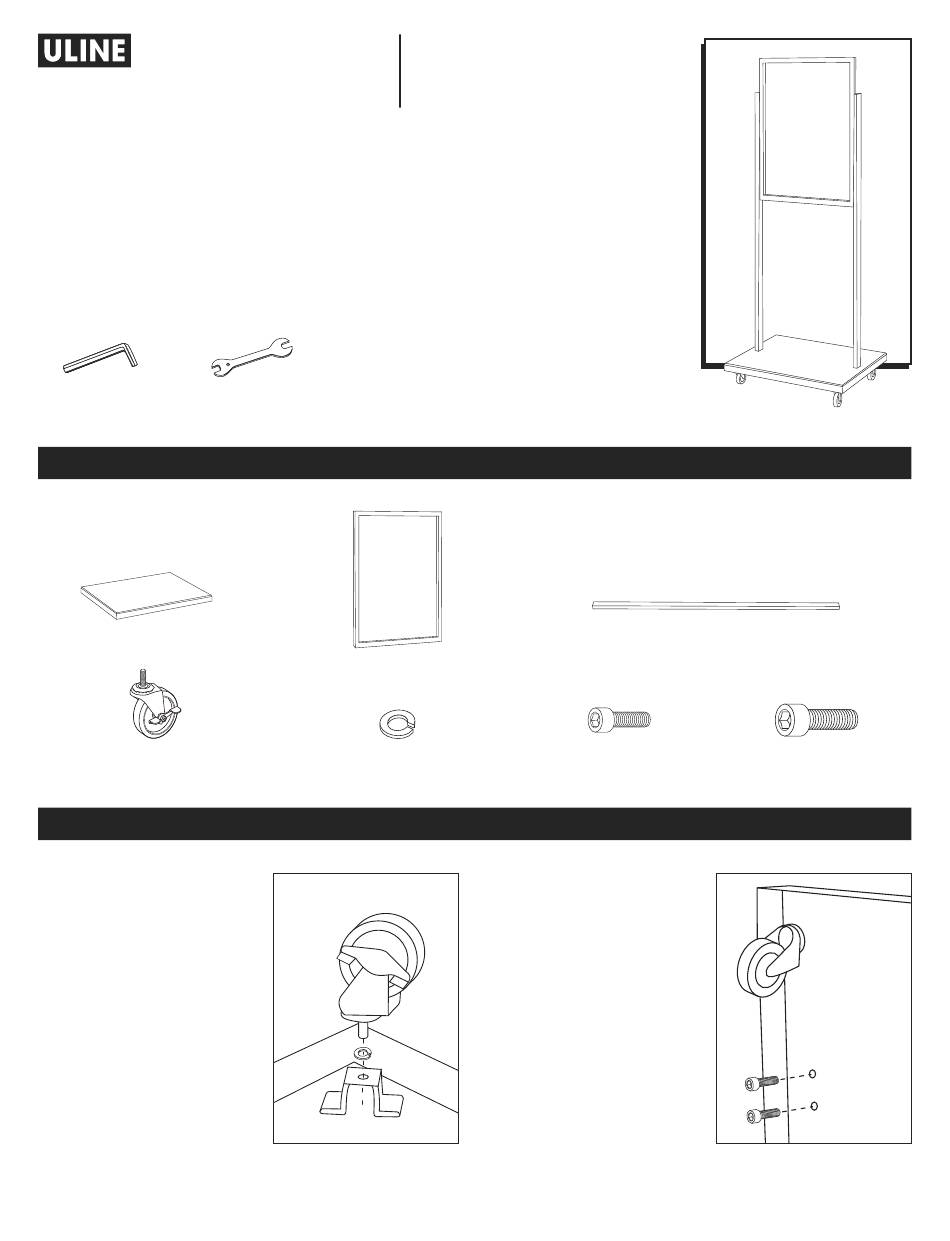

H-11486
MOBILE FLOOR STANDING
SIGN HOLDER
TOOLS INCLUDED
3 mm Allen Wrench
5 mm Allen Wrench
Base x 1
Caster x 4
1. Attach casters to base
using lock washers.
(See Figure 1)
2. Tighten casters using
13 x 14 mm wrench.
PAGE 1 OF 6
13 x 14 mm
Wrench
Frame x 1
Lock Washer x 4
Figure 1
1-800-295-5510
uline.com
PARTS
M4 x 12 mm Hex
Head Screw x 4
ASSEMBLY
3. After all casters are
secure, insert two
M6 x 35 mm hex head
screws inside the holes
located underneath
base between casters.
Repeat on opposite
side of base.
(See Figure 2)
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Pole x 2
M6 x 35 mm Hex
Head Screw x 4
1124 IH-11486
Figure 2
Advertisement
Related Manuals for U-Line H-11486
Summary of Contents for U-Line H-11486
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-11486 1-800-295-5510 uline.com MOBILE FLOOR STANDING SIGN HOLDER TOOLS INCLUDED 3 mm Allen Wrench 13 x 14 mm 5 mm Allen Wrench Wrench PARTS Base x 1 Pole x 2...
- Page 2 ASSEMBLY CONTINUED 4. Position threaded side 8. Position frame with Figure 3 Figure 5 of pole to align with open slot facing Slot holes on top of base. upward. (See Figure 5) Base (See Figure 3) 9. Align holes on interior NOTE: Poles have of post with frame.
- Page 3 H-11486 800-295-5510 uline.mx PORTALETRERO MÓVIL HERRAMIENTAS INCLUIDAS Llave Allen de 3 mm Llave de 13 x 14 mm Llave Allen de 5 mm PARTES 1 Base 2 Postes 1 Armazón 4 Ruedas 4 Rondanas de 4 Tornillos de Cabeza 4 Tornillos de Cabeza...
- Page 4 CONTINUACIÓN DEL ENSAMBLE 4. Alinee el lado roscado 8. Coloque el armazón Diagrama 3 Diagrama 5 del poste con los con la ranura abierta Ranura orificios en la parte boca arriba. Base superior de la base. (Vea Diagrama 5) (Vea Diagrama 3) 9.
-
Page 5: Montage
H-11486 1 800 295-5510 uline.ca SUPPORT D'ENSEIGNE SUR PIED MOBILE OUTILS INCLUS Clé Allen de 3 mm Clé de 13 x 14 mm Clé Allen de 5 mm PIÈCES Base x 1 Poteau x 2 Cadre x 1 Roulette x 4 Rondelle de Vis à... - Page 6 MONTAGE SUITE 4. Alignez le côté fileté du 8. Positionnez le cadre Figure 3 Figure 5 poteau sur les trous sur avec l'ouverture de Fente le dessus la base. la fente orientée vers le Base (Voir Figure 3) haut. (Voir Figure 5) REMARQUE : Les 9.
