H-11067, H-11068

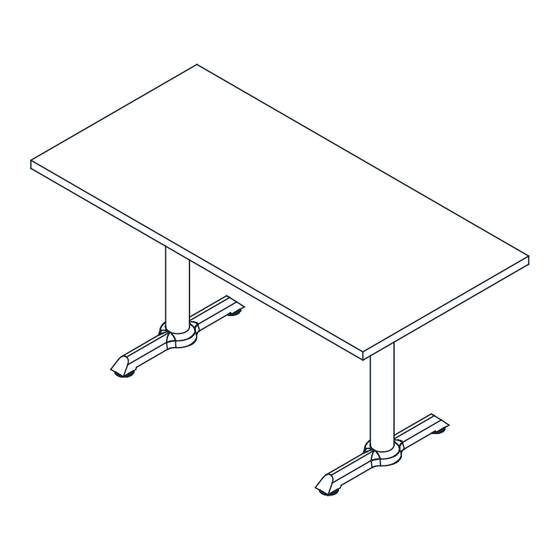

RECTANGLE CAFÉ TABLE
TOOLS NEEDED
Phillips
Screwdriver
Two Person Assembly
Recommended
Tabletop x 1
IMPORTANT! Check that all parts are included.
NOTE: Use Allen wrench to tighten bolts (A).
Use Phillips screwdriver to tighten screws (B).
NOTE: Assemble on a smooth, non-marring
surface to avoid scratching.
1. Align tabletop mounting plate (D) with holes on
column (E). Use three M8 x 1⁄" bolts (A) to secure.
Repeat for remaining mounting plate and column.
(See Figure 1)
NOTE: Ensure holes in brackets align with center
holes in edge of tabletop mounting plate.
PAGE 1 OF 6
Drill
Allen Wrench
(Optional)
(Included)
F
Base x 2
1-800-295-5510
uline.com
PARTS
D
Tabletop Mounting Plate x 2
E
Column x 2
ASSEMBLY
Figure 1
Bracket
A
M8 x 1⁄" Bolt x 12
B
#5 x 1" Screw x 16
A
D
E
1123 IH-11067
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-11067
Summary of Contents for U-Line H-11067
- Page 1 H-11067, H-11068 1-800-295-5510 uline.com RECTANGLE CAFÉ TABLE TOOLS NEEDED Phillips Drill Allen Wrench Screwdriver (Optional) (Included) Two Person Assembly Recommended PARTS Tabletop Mounting Plate x 2 M8 x 1⁄" Bolt x 12 Base x 2 Tabletop x 1 Column x 2 #5 x 1"...
- Page 2 ASSEMBLY CONTINUED 2. Align base (F) with holes on opposite end of column 3. With second person, place tabletop upside down. (E). Use three M8 x 1⁄" bolts (A) to secure. Repeat for Align tabletop mounting plate (D) from assembled remaining base.
-
Page 3: Herramientas Necesarias
H-11067, H-11068 800-295-5510 uline.mx MESA RECTANGULAR PARA CAFETERÍA HERRAMIENTAS NECESARIAS Desarmador Taladro Llave Allen de Cruz (Opcional) (Incluida) Se Recomienda Armar Entre Dos Personas PARTES 2 Placas de Instalación para 12 Pernos M8 x 1⁄" Cubierta de Mesa 2 Bases... - Page 4 CONTINUACIÓN DEL ENSAMBLE 2. Alinee la base (F) con los orificios en el lado opuesto 3. Con la ayuda de otra persona, voltee la cubierta. de la columna (E). Use tres pernos M8 x 1⁄" (A) Alinee la placa de instalación para la cubierta (D) para asegurarla.
-
Page 5: Montage
H-11067, H-11068 1-800-295-5510 TABLE À CAFÉ uline.ca RECTANGULAIRE OUTILS REQUIS Tournevis Perceuse Clé Allen cruciforme (optionnel) (inclus) Montage à deux personnes recommandé PIÈCES Plaque de fixation du dessus Boulon M8 x 1 ⁄ po x 12 de table x 2... - Page 6 MONTAGE SUITE 2. Alignez la base (F) sur les trous de l'extrémité ouverte 3. Placez le dessus de table à l'envers. À deux, alignez de la colonne (E). Fixez-la avec trois boulons la plaque de fixation du dessus de table (D) de la M8 x 1 ⁄...
