H-8796, H-8797
π
H-11601

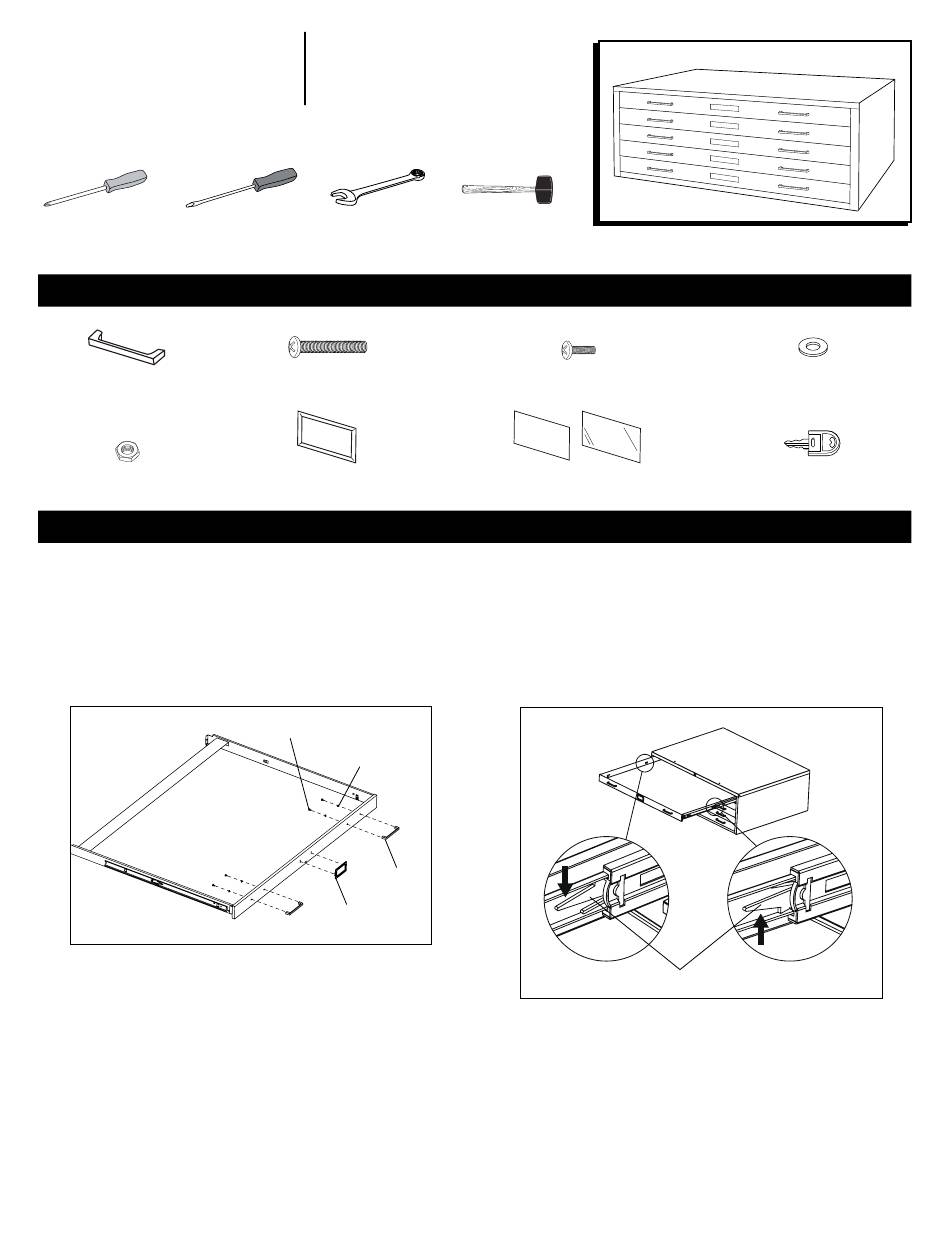

FLAT FILE CABINET
TOOLS NEEDED
Phillips Screwdriver
Flathead Screwdriver
Handle x 10
M6 Nut x 2
HANDLES AND LABEL HOLDERS
1.
Place handle on front of drawer and insert two
M4 x 6 mm handle screws with two M4 washers
through opposite side. Tighten using a Phillips
screwdriver. Repeat for all drawers. (See Figure 1)
Figure 1
2. Attach label holders by pushing tabs through slots in
front of drawer and bending tabs on back of drawer
toward center to secure.
PAGE 1 OF 6
1-800-295-5510
uline.com
10 mm Wrench
M6 x 55 mm Bolt x 2
Label Holder x 5
ASSEMBLY
M4 x 6 mm Screw
M4 Washer
Handle
Label Holder
Rubber Mallet
PARTS
M4 x 6 mm Handle Screw x 20
Paper Label and Plastic Cover x 5
STACKING
1.
Remove bottom drawer of top unit and top drawer
of bottom unit. To remove drawer, pull up on one
tab and push down on the opposite tab, then pull
cabinet body out. (See Figure 2)
Figure 2
Para Español, vea páginas 3-4.
Pour le français, consulter las page 5-6.
M4 Washer x 20
Key x 2
Plastic Tab
0924 IH-8796

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-8796 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for U-Line H-8796

  • Page 1 Para Español, vea páginas 3-4. Pour le français, consulter las page 5-6. H-8796, H-8797 π 1-800-295-5510 H-11601 uline.com FLAT FILE CABINET TOOLS NEEDED Phillips Screwdriver Flathead Screwdriver 10 mm Wrench Rubber Mallet PARTS Handle x 10 M6 x 55 mm Bolt x 2...
  • Page 2 ASSEMBLY CONTINUED 2. Remove knockout caps on top of bottom unit. (See Figure 3) NOTE: Knockout caps can be removed using a flathead screwdriver and rubber mallet. Stand the flathead screwdriver on the knockout caps and tap the top of the screwdriver handle with the rubber mallet to knock the caps off.
  • Page 3 H-8796, H-8797 π 800-295-5510 H-11601 uline.mx ARCHIVERO PLANO HERRAMIENTAS NECESARIAS Desarmador de Cruz Desarmador Plano Llave de 10 mm Mazo de Caucho PARTES 10 Asas 2 Pernos M6 x 55 mm 20 Tornillos para Asa M4 x 6 mm 20 Rondanas M4 5 Portaetiquetas 5 Etiquetas de Papel y Cubiertas de Plástico...
  • Page 4 CONTINUACIÓN DE ENSAMBLE 2. Retire los tapones que están en la parte superior de la unidad inferior. (Vea Diagrama 3) NOTA: Puede quitar los tapones utilizando un desarmador de cabeza plana y mazo de caucho. Coloque el desarmador de cabeza plana en los tapones y golpee la parte superior del mango del desarmador con el mazo de caucho para sacar los tapones.
  • Page 5 H-8796, H-8797 π 1 800 295-5510 H-11601 uline.ca CLASSEUR PLAT OUTILS REQUIS Tournevis cruciforme Tournevis à tête plate Clé de 10 mm Maillet en caoutchouc PIÈCES Poignée x 10 Boulon M6 x 55 mm x 2 Vis de poignée M4 x 6 mm x 20 Rondelle M4 x 20 Porte-étiquette x 5...
  • Page 6 ASSEMBLAGE SUITE 2. Enlevez les capuchons de protection sur le dessus de l'unité inférieure. (Voir Figure 3) REMARQUE : Les capuchons de protection peuvent être retirés à l'aide d'un tournevis à tête plate et d'un maillet en caoutchouc. Placez le tournevis à tête plate sur les capuchons de protection et tapez sur le dessus du manche du tournevis avec le maillet en caoutchouc pour faire tomber les capuchons.
