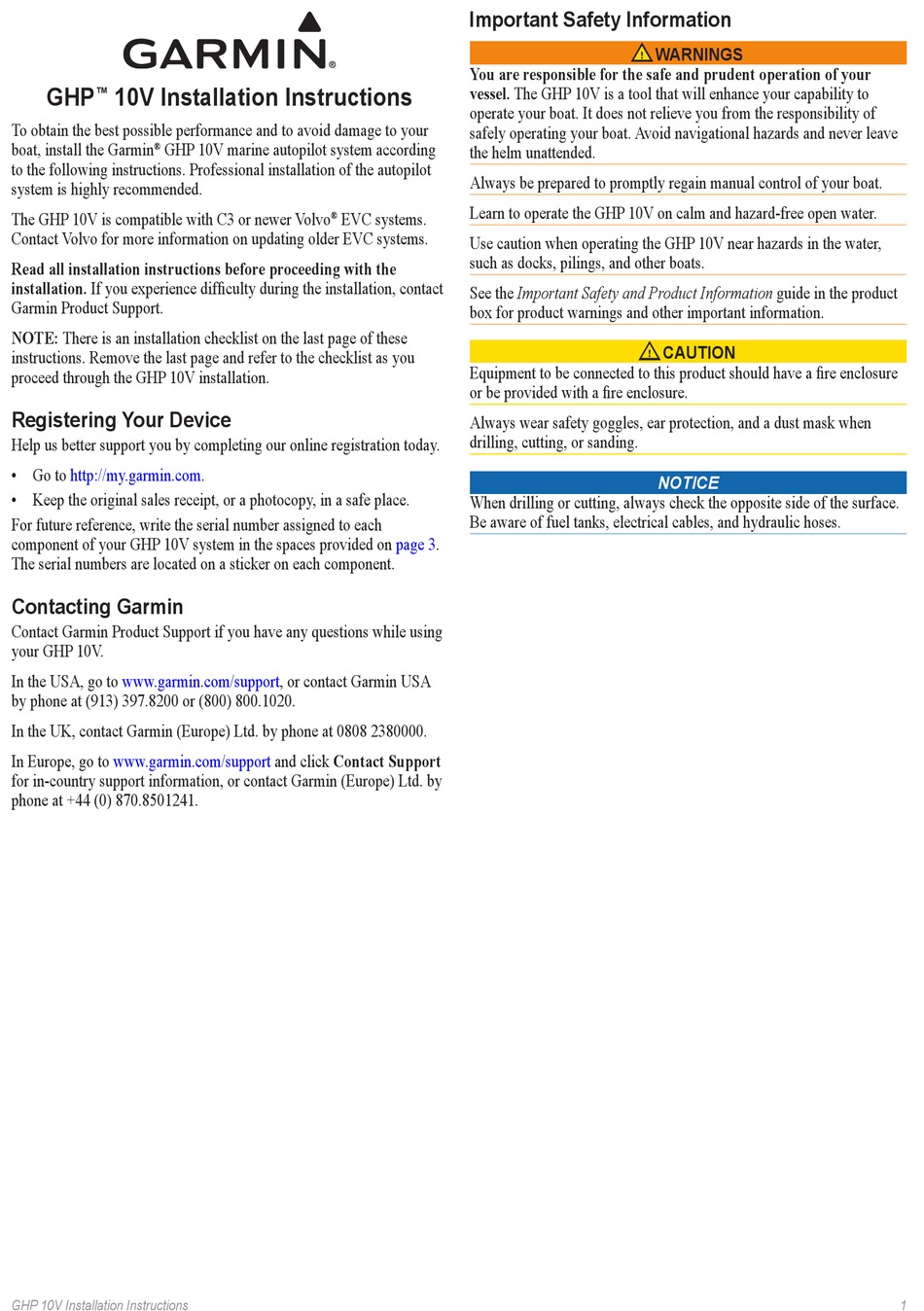

GHP
10V Installation Instructions
™
To obtain the best possible performance and to avoid damage to your
boat, install the Garmin
GHP 10V marine autopilot system according
®
to the following instructions. Professional installation of the autopilot
system is highly recommended.
The GHP 10V is compatible with C3 or newer Volvo
Contact Volvo for more information on updating older EVC systems.
Read all installation instructions before proceeding with the
installation. If you experience difficulty during the installation, contact
Garmin Product Support.
NOTE: There is an installation checklist on the last page of these
instructions. Remove the last page and refer to the checklist as you
proceed through the GHP 10V installation.

Registering Your Device

Help us better support you by completing our online registration today.
• Go to http://my.garmin.com.
• Keep the original sales receipt, or a photocopy, in a safe place.
For future reference, write the serial number assigned to each
component of your GHP 10V system in the spaces provided on
The serial numbers are located on a sticker on each component.

Contacting Garmin

Contact Garmin Product Support if you have any questions while using
your GHP 10V.
In the USA, go to www.garmin.com/support, or contact Garmin USA
by phone at (913) 397.8200 or (800) 800.1020.
In the UK, contact Garmin (Europe) Ltd. by phone at 0808 2380000.
In Europe, go to
www.garmin.com/support
for in-country support information, or contact Garmin (Europe) Ltd. by
phone at +44 (0) 870.8501241.
GHP 10V Installation Instructions
EVC systems.
®
page
3.
and click Contact Support

Important Safety Information

You are responsible for the safe and prudent operation of your
vessel. The GHP 10V is a tool that will enhance your capability to
operate your boat. It does not relieve you from the responsibility of
safely operating your boat. Avoid navigational hazards and never leave
the helm unattended.
Always be prepared to promptly regain manual control of your boat.
Learn to operate the GHP 10V on calm and hazard-free open water.
Use caution when operating the GHP 10V near hazards in the water,
such as docks, pilings, and other boats.
See the Important Safety and Product Information guide in the product
box for product warnings and other important information.
Equipment to be connected to this product should have a fire enclosure
or be provided with a fire enclosure.
Always wear safety goggles, ear protection, and a dust mask when
drilling, cutting, or sanding.
When drilling or cutting, always check the opposite side of the surface.
Be aware of fuel tanks, electrical cables, and hydraulic hoses.
WaRnInGS
CautIon
Notice
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GHP 10V Marine Autopilot System and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Garmin GHP 10V Marine Autopilot System

Summary of Contents for Garmin GHP 10V Marine Autopilot System

  • Page 1: Ghp ™ 10V Installation Instructions

    GHP 10V. In the USA, go to www.garmin.com/support, or contact Garmin USA by phone at (913) 397.8200 or (800) 800.1020. In the UK, contact Garmin (Europe) Ltd. by phone at 0808 2380000. In Europe, go to www.garmin.com/support and click Contact Support for in-country support information, or contact Garmin (Europe) Ltd.

  • Page 2: Table Of Contents

    ™ Adjusting the Autopilot Gain Settings ..........Registering Your Device ...............1 Advanced Configuration Procedure..........12 Contacting Garmin................1 Enabling the Advanced Configuration Procedure ......Important Safety Information ............1 Advanced Configuration Settings ..........12 GHP 10V Package Contents and needed tools .... Manually Running the Automated Configuration Procedures ..

  • Page 3: Ghp 10V Package Contents And Needed Tools

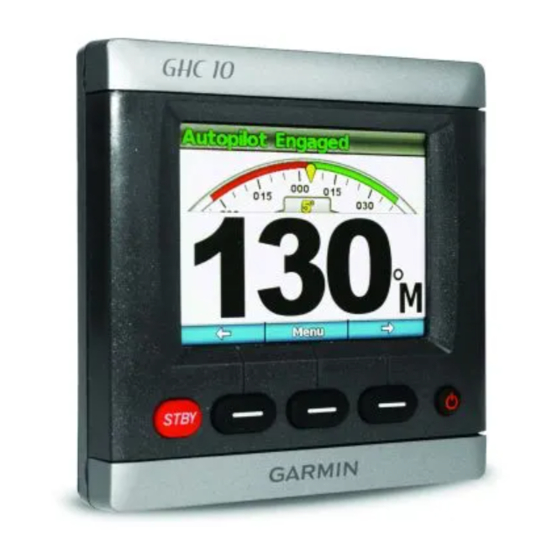

    As you familiarize yourself with the GHP 10V components, confirm that your package includes the following items. If any parts are missing, contact your Garmin dealer immediately. The GHC 10 is the primary interface used to operate the GHP 10V Record the serial number of each component in the space provided.

  • Page 4: Nmea 2000 Cables And Connectors

    NMEA 2000 T-connector (×3) ➌ NMEA 2000 terminator, male ➍ NMEA 2000 terminator, female ➎ nMEa 2000 Extension Cables NMEA 2000 extension cables are available if needed. Contact your local Garmin dealer or Garmin Product Support for ordering information. GHP 10V Installation Instructions...

  • Page 5: Installation Preparation

    Installation Preparation alarm Mounting Considerations • The alarm should be mounted near the helm station. Before installing the GHP 10V autopilot system, you must plan where • The alarm can be mounted under the dashboard. all the components will be located on your boat. Temporarily place all the components where you intend to install them.
  • Page 6 ➊ ➋ ➌ ➍ ➎ ➏ ➐ ➑ GHP 10V General Connection Diagram Item Description Important Considerations GHC 10 ➊ GHC 10 data cable Route the yellow wire to the location where you plan to install the GHC 10 (page ➋...

  • Page 7: Installation Procedures

    Installation Procedures Connecting the CCu 1. Route the five-pin connector end of the CCU interconnect cable to After you have completely planned the GHP 10V installation on your the location where you plan to access the Volvo multilink bus boat, and have satisfied all the mounting and connecting considerations (page for your particular installation, you can begin mounting and connecting 2.

  • Page 8: Connecting The Autopilot Gateway

    Stainless-steel screws may bind when screwed into fiberglass and You can install multiple GHC 10 devices (sold separately) to control the overtightened. Garmin recommends applying an anti-galling, stainless autopilot from different locations on the boat. anti-seize lubricant to the screws before installing them.

  • Page 9: Connecting The Devices To A Nmea 2000 Network

    To use advanced features of the GHP 10V, optional NMEA 2000-compatible devices, such as a GPS device, can be connected to the NMEA 2000 network. For more information on NMEA 2000, go to www.garmin.com. Connecting the GHC 10 to an Existing nMEa 2000 network 1.

  • Page 10: Ccu

    Connecting optional Devices to the GHP 10V Building a Basic nMEa 2000 network for the GHC 10 and the CCu autopilot System To use advanced features of the GHP 10V, optional NMEA Notice 2000-compatible or NMEA 0183-compatible devices, such as a GPS You must connect the included NMEA 2000 power cable to the boat device, can be connected to the NMEA 2000 network or to the GHC 10 ignition switch, or through another in-line switch.

  • Page 11: Configuring The Ghp 10V

    Configuring the GHP 10V 4. Select an option: • If the calibration completes successfully, select Done. The GHP 10V must be configured and tuned to your boat dynamics • If the calibration fails, select Retry and repeat steps 1–3. and motor configuration. Use the Sea Trial Wizard on the GHC 10 to configure the GHP 10V.

  • Page 12: Testing And Adjusting The Autopilot Configuration

    testing and adjusting the autopilot Configuration 5. Repeat steps 2 and 3 until the GHP 10V performance is satisfactory. 1. Drive the boat in one direction with the autopilot engaged (heading advanced Configuration Procedure hold). Advanced configuration options are not available on the GHC 10 under The boat should not oscillate significantly;...

  • Page 13: Appendix

    appendix Wire GHC 10 Wire nMEa 0183-Compatible Device Wire Color - Function Function nMEa 0183 Connection Diagrams Power ➊ The following three connection diagrams are examples of different NMEA 0183 ground ➋ situations you may encounter when connecting your NMEA 0183 Blue - Tx/A (+) ➌...

  • Page 14: Specifications

    Specifications Transmit 059392 ISO Acknowledgment Device Specification Measurement 059904 ISO Request Dimensions in. diameter (91.4 mm) 060928 ISO Address Claim Weight 5.6 oz. (159 g) 126208 NMEA - Command/Request/Acknowledge Temperature From 5°F to 131°F (from -15°C to 55°C) Group Function range 126464 Transmit/Receive PGN List Group Function...

  • Page 15: Nmea 0183 Information

    nMEa 0183 Information Category Setting Description When connected to optional NMEA 0183-compatible devices, the Rudder Gains Low Speed Allows you to set the rudder GHC 10 uses the following NMEA 0183 sentences. Gain gain for low speeds. This setting applies to the type Sentence vessel when operating below...

  • Page 16: Error And Warning Messages

    Error and Warning Messages Category Setting Description Error Message Cause autopilot action NMEA Setup Reversed XTE If the connected NMEA 0183 GPS unit sends the incorrect Autopilot is not The autopilot is no • Alarm sounds steering direction with the receiving navigation longer receiving •...

  • Page 17: Ccu Mounting Template

    CCu Mounting template ➊ Up, when installing on a ➊ vertical surface GHP 10V Installation Instructions...

  • Page 19: Ghp 10V Installation Checklist

    Detach this checklist from the installation instructions and use it to assist with the GHP 10V installation process. Read all installation instructions before installing the GHP 10V. Contact Garmin Product Support if you have any questions during the installation process.
  • Page 20 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.
