Spectrum 55568 Assembly Instructions

Assembly Instructions
Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts or
accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
1
Remove audience-side panel
1. Unlock and lift the audience-side panel.
2. Disconnect the (2) euro hinges by loosening the center screws and
remove the panel. This will provide easier access.
(1) 0181163
Logo panel
(6) 026059
1/4" Flat washer
Masking
(6) 0104260
Assembly tip: Do not tighten component fasteners completely
10-32 Keps nut
until all have been installed. Keeping them loose will help with
alignment between parts during assembly.

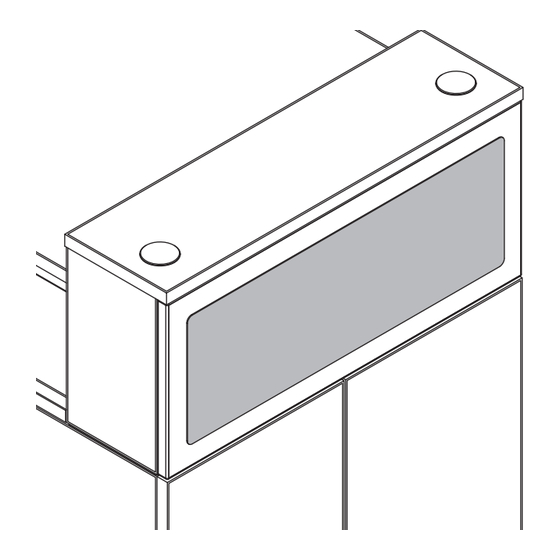

Logo Panel for Edge Lectern
55568
"
1/4
Drill with 1/4" drill bit
tape
l
a n e
e p
- s i d
n c e
d i e
A u
3 /
"
8
0193960R1 Page 1 of 2
