Owner's Manual
Media Manager Elite Lectern
55258

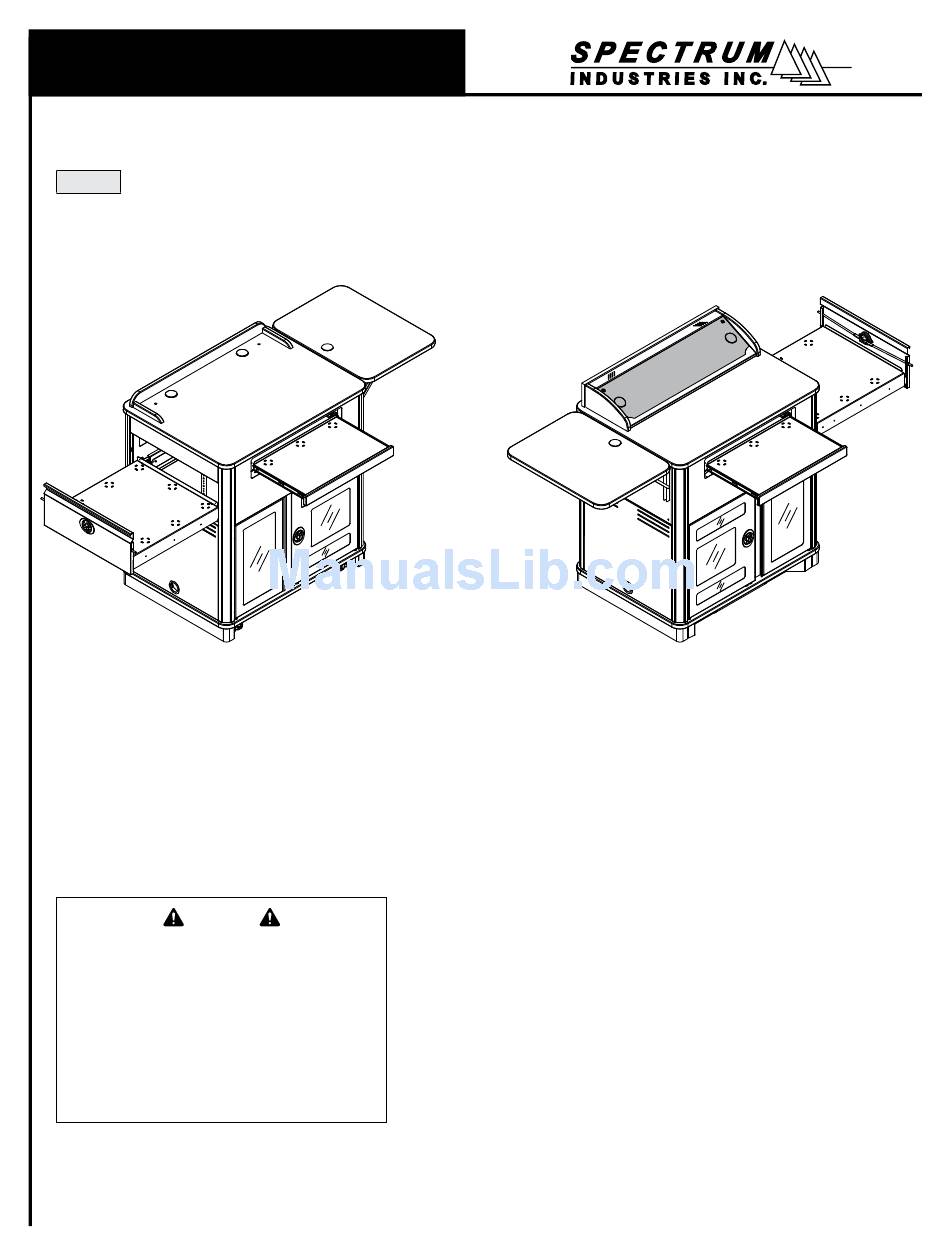

Media Manager Elite with surround,
left drawer, rack cube installed on right,
flip-up shelf on right
Important
Before using this product:
• Read this manual
• Comply with all safety and operating instructions
• Ensure all parts and correct quantities are included
Any parts damaged during shipment must be reported
within 5 days of receipt. To report information regarding
missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
Thank you for purchasing Spectrum products!
Spectrum Industries, Inc
925 First Avenue, Chippewa Falls, WI 54729 USA
800 235 1262
715 723 6750
www.spectrumfurniture.com
™
Media Manager Elite with overbridge,
right drawer, rack cube installed on left,
and toe kick, flip-up shelf on left
0118738R6 Page 1 of 15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Spectrum Media Manager Elite Lectern 55258
Summary of Contents for Spectrum Media Manager Elite Lectern 55258
- Page 1 5 days of receipt. To report information regarding missing parts or damage, to purchase parts or acces- sories, or if you have any questions, please contact us. Thank you for purchasing Spectrum products! Spectrum Industries, Inc 925 First Avenue, Chippewa Falls, WI 54729 USA...
- Page 2 If servicing is necessary, adults or with adult supervision. please contact Spectrum Industries for assistance. Warning - Relocating audio and/or video equipment to furniture not specifi cally designed to support audio and/or video equipment may result in death or serious injury due to the furnishing collapsing or over turning onto a child.
- Page 3 Assembly / Setup 1. Install 3-piece skirt Phillips screwdriver 1. Attach the two side skirts to the audience-side skirt with (4) 4mm Hex 8-32 x 1/2” PH Thread-cutting screws. Figure 1A. wrench 2. Move lectern into position over the assembled skirt as (included) shown.
- Page 4 Audience-side panel Phillips screwdriver The audience-side panel can be removed to access the rear portion of the rack cube and lectern. 1. To remove the panel, open the document camera drawer fully. Figure 2A. 2. Unscrew the (2) knobs inside the lectern behind the audience-side panel and remove.
- Page 5 Quick-release doors The doors can easily be removed for easier access using the quick- release hinge lever located on the upper hinge pin of each door. Figure 3A. To remove, lift the lever while lifting out the door. The doors can be switched to be hinged from the left or right-side. To switch the hinge side: Quick-release 1.
- Page 6 Keyboard tray / drawer Keyboard Tray Note: Can be used as a keyboard tray, or flipped and used as a drawer. Push here on both slides to release 1. To flip, pull the tray out fully and locate the black plastic lever on each slide.
- Page 7 Optional flip-up shelf Upper mounting position 19.25”W [48.9 cm] Shelf grommet Lower mounting position 5.5”H 26”D [14 cm] [66 cm] Release lever (press here) Figure 6B Figure 6A CAUTION Operation The shelf will automatically lock into place when lifted into the Keep clear of pinch points during shelf movement.
- Page 8 Optional overbridge insert panel cutouts 1. Before you begin, refer to the panel dimensions in Figure 7B for Drill Drill bit Jigsaw or router maximum recommended cutout sizes. 2. Identify the size and position (left, centered, or right) of each cutout needed.
- Page 9 Section View for many of the currently available controllers on the market, however, modified cutouts should be reviewed by Spectrum to ensure clearance of brackets, keyboard slides, or other objects under the worksurface. Contact Spectrum to specify cutout size(s) and location(s).
- Page 10 Optional toe kick 4mm Hex wrench (included) 1. Position the toe kick panel on the floor in the preferred final lectern location. Figure 8A. 2. Mark the (4) mounting hole locations onto the floor. (The toe kick mounting holes are 1/2” dia.) 3.
- Page 11 Caster operation 1. Lock the brake levers to lock movement of the casters. (Two instructor-side casters only). Figure 9. 2. To resume operation, lift up on brake levers. Skirt Brake lever Moving and parking the lectern Figure 9 • Before moving, unplug and secure all power cords. •...
- Page 12 Customized Logo Panel - 55199 • Attaches to audience-side of lectern • To get panel customized-contact Spectrum for details • New logos require a first time logo charge • Customer-installed Dimensions: 30”W [76.2 cm] x 12”H [30.48 cm]...
- Page 13 96507 - Blank panel 96507mod - Panel with cutout(s) • Panel for overbridge version only (overbridge not available separately) • Contact Spectrum to specify cutout size(s) and position(s) • Includes two 2” [5.08 cm] grommets with covers • Customer-installed Dimensions: 33.25”W [84.5 cm] x 9”D [22.9 cm] x .79”H [2 cm]...
- Page 14 10 lb [4.5 kg] Shipping weight: 10.8 lb [4.9 kg] The cord reel is intended to provide temporary access to electrical outlets for Spectrum mobile lecterns. Check local electrical codes prior to installation. Rack cube (Available positions on base with rack cube) See spectrumfurniture.com for the latest...
-
Page 15: Warranty
P.A.C.E. program (Product Assurance to meet Customer Expectations). We expressly warrant that Spectrum products will be of good quality and workmanship and free from defect for the period set out in the warranty table below from the date of delivery.
