Razor W15130412003 Battery Replacement Instructions

Dirt quad

Download this manual

Required Tools: (Not included)

• Phillips screwdriver

• 5 mm Allen wrench

• 4 mm Allen wrench

• 13 mm open wrench

• 10 mm open wrench

WARNING

CAUTION: To avoid potential shock or other injury, turn power switch OFF and disconnect

charger before conducting any assembly or maintenance procedures. Failure to follow these

steps in the correct order may cause irreparable damage.

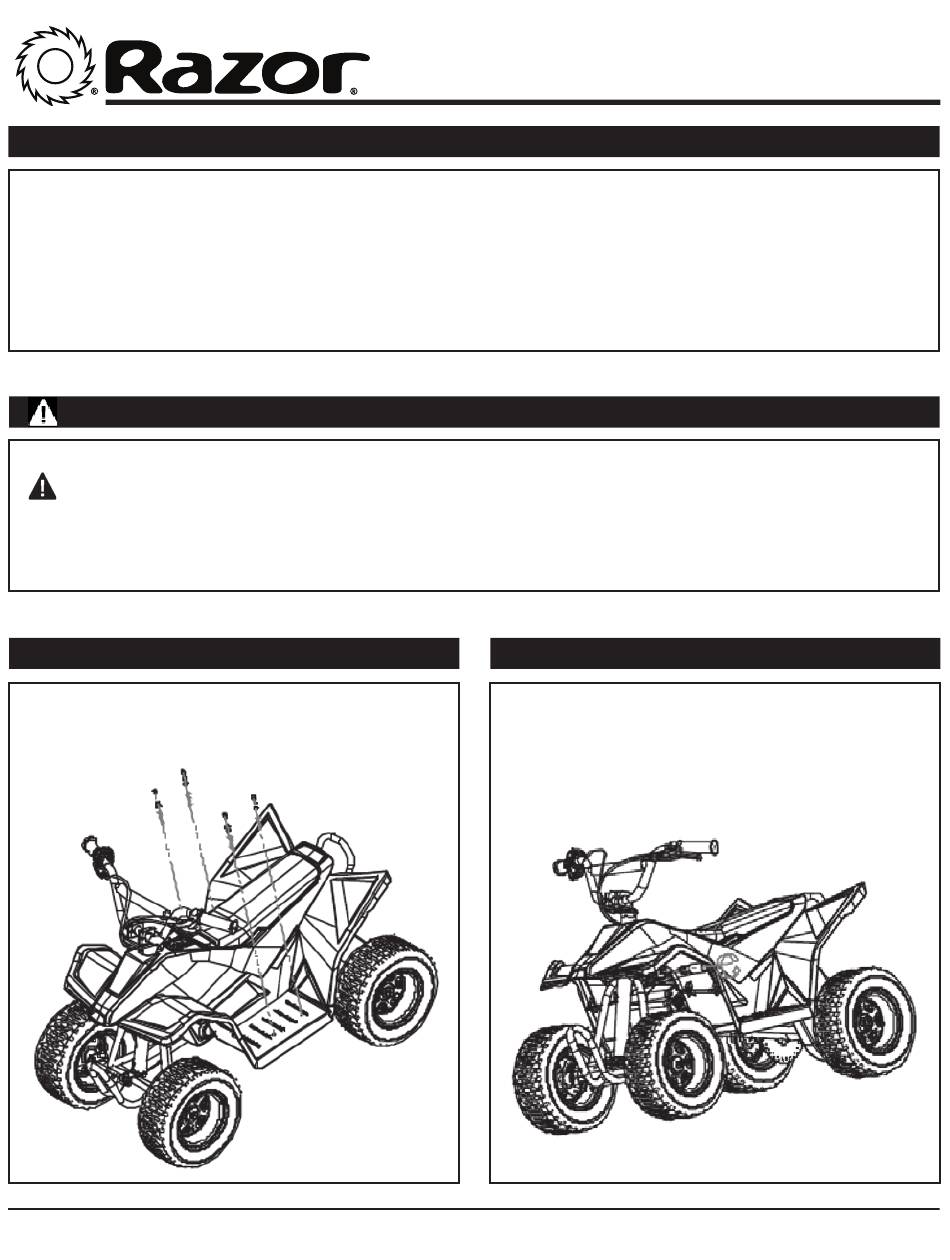

Step 1

Using a 5 mm Allen wrench, remove the four (4) bolts

located on the footrests.

Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.

BATTERY REPLACEMENT INSTRUCTIONS

Step 2

Using a Phillips screwdriver, remove the two (2) screws on

both the left and right sides of the front of the unit.

DIRT QUAD

PART # W15130412003

Need help?

Do you have a question about the W15130412003 and is the answer not in the manual?

Page 1 Using a Phillips screwdriver, remove the two (2) screws on located on the footrests. both the left and right sides of the front of the unit. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
Page 2 Lift and remove the body fairing from the unit. Unplug the brake cable may need to be disconnected from the caliper. connectors between the battery and the controller. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
Page 3 Using a 4 mm Allen wrench, loosen and remove the two (2) hex bolts that hold the battery bracket in place. Use both hands to lift and remove the batteries. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
Page 4 Step 11 To install a new battery, reverse steps 1-10. ATTENTION: Charge battery 12 hours before using. US_250319_R Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
