Razor W25143065280 Replacement Instructions

Dirt quad speed switch

Download this manual

Required Tools: (Not included)

• 5 mm Allen wrench

• Phillips screwdriver

• 13 mm open wrench

• 10 mm open wrench

WARNING

CAUTION: To avoid potential shock or other injury, turn power switch OFF and disconnect

charger before conducting any assembly or maintenance procedures. Failure to follow these

steps in the correct order may cause irreparable damage.

Step 1

Using a 5 mm Allen wrench, remove the four (4) bolts

located on the footrest.

Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.

DIRT QUAD SPEED SWITCH

REPLACEMENT INSTRUCTIONS

Step 2

Using a Phillips screwdriver, remove the two (2) screws on

both the left and right sides of the front of the unit.

PART # W25143065280

Need help?

Do you have a question about the W25143065280 and is the answer not in the manual?

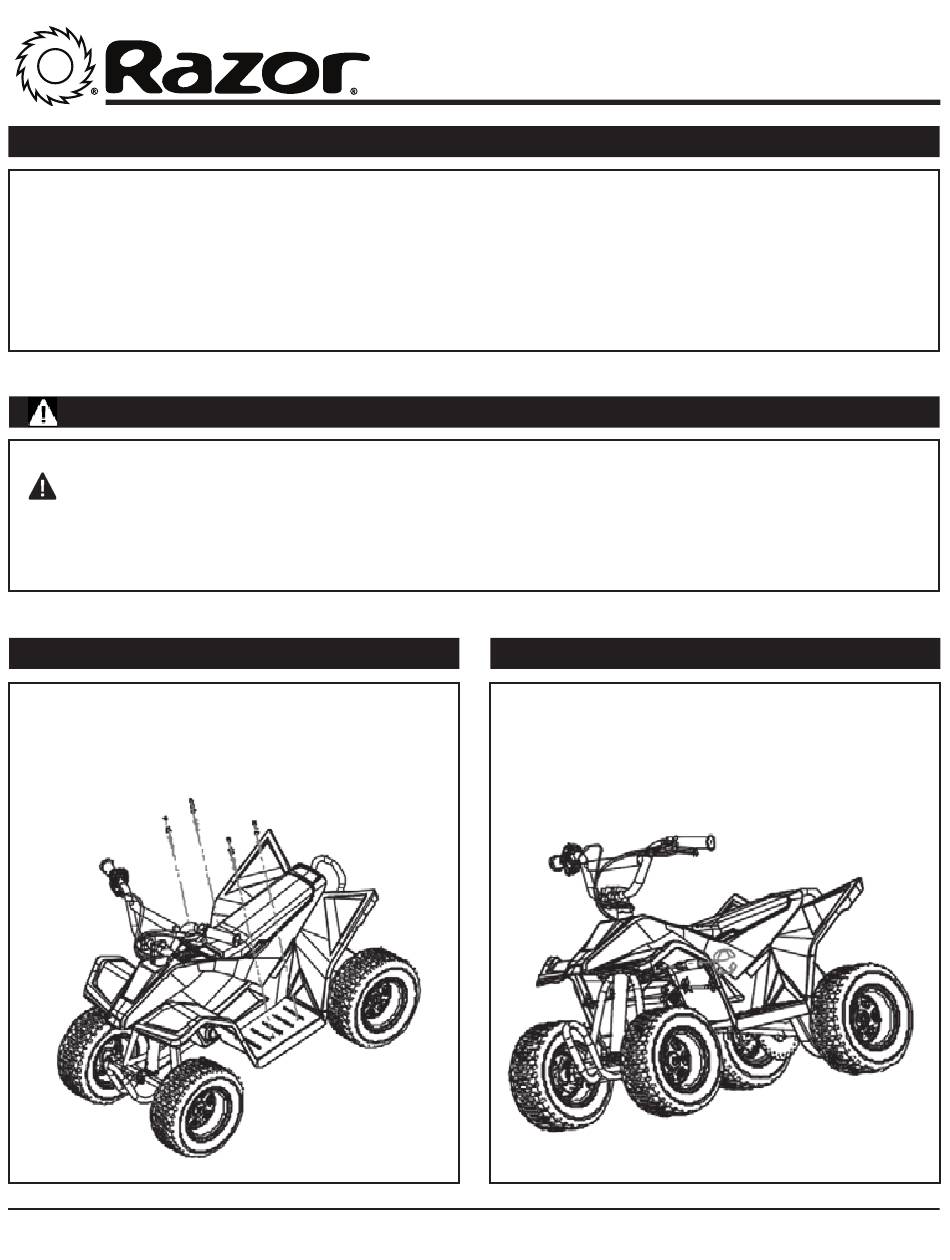

Page 1 Using a Phillips screwdriver, remove the two (2) screws on located on the footrest. both the left and right sides of the front of the unit. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
Page 2 Lift and remove the body fairing from the unit and unplug The brake cable may need to be disconnected from the connectors between the battery and the controller. the caliper. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
Page 3 Step 9 To install a new speed switch, reverse steps 1-8. ATTENTION: Charge battery 12 hours before using. US_250328_R Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
