QUICK START GUIDE
AIROC™ CYW55913 Wi-Fi & Bluetooth® LE
combo Connected MCU Evaluation Kit
CYW955913EVK-01
Kit contents
1. CYW55913 Evaluation Board
2. 30-pin FFC cable with M.2 adapter card
3. USB Type-C to Type-C cable
www.infineon.com/CYW955913EVK-01
4. Six jumper wires (five inches each)
5. Laird Triband PCB Antenna (2 Qty)
6. Quick start guide (this document)
-
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Infineon AIROC CYW55913
Summary of Contents for Infineon AIROC CYW55913
- Page 1 Kit contents 1. CYW55913 Evaluation Board 4. Six jumper wires (five inches each) 2. 30-pin FFC cable with M.2 adapter card 5. Laird Triband PCB Antenna (2 Qty) 3. USB Type-C to Type-C cable 6. Quick start guide (this document) www.infineon.com/CYW955913EVK-01...
- Page 2 Before you start 1. Ensure that you have the following: – PC with Type-C USB port – UART terminal so ware such as TeraTerm or Minicom – Download and install the AIROC™ Bluetooth® Connect app from Google Play Store or iOS App Store. 2.

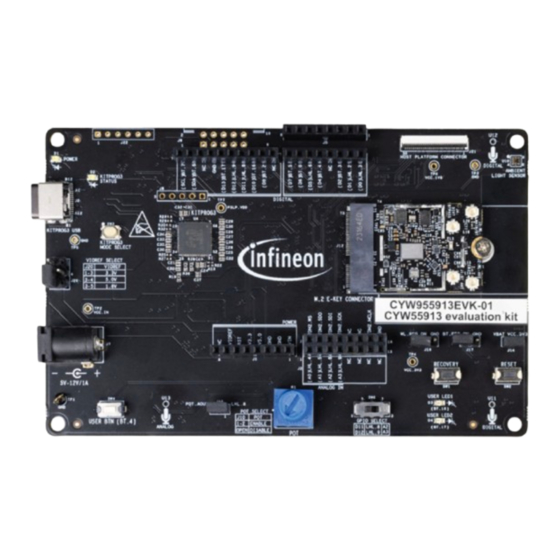

- Page 3 CYW955913EVK-01 Evaluation Board details 13 14 15 Power LED (LED1) 17 Digital mic 1 (U11)** KitProg3 status LED (LED2) 18 CYW55913 reset button (SW2) KitProg3 USB Type-C connector (J6) 19 CYW55913 recovery button (SW1) KitProg3 programming mode 20 VBAT current measurement jumper (J14) selection button (SW3) 21 Bluetooth®...
- Page 4 LHL_6/D5 BT_4/D4 NC/D3 BT_3/D2 LHL_2/D1 LHL_3/D0 See the kit guide available at www.infineon.com/CYW955913EVK-01 for details. Published by Infineon Technologies AG All rights reserved. © 2024 Document number: 002-36552 Rev. *B 81726 Munich, Germany Infineon Technologies AG Date: 03 / 2024...
