QUICK START GUIDE

Wi-Fi & Bluetooth

Raspberry Pi CM4 Host

CYW9RPIWIFIBT-EVK

Kit contents

1. CYW9RPIWIFIBT-EVK evaluation board

(with Raspberry Pi CM4 module and CYW955573 radio M.2 card)

2. Two tri-band dipole antenna

www.infineon.com/CYW9RPIWIFIBT-EVK

Evaluation Kit with

3. USB-C to USB-C cable

4. Quick start guide (this document)

Need help?

Do you have a question about the CYW9RPIWIFIBT-EVK and is the answer not in the manual?

Page 1 Evaluation Kit with ® Raspberry Pi CM4 Host CYW9RPIWIFIBT-EVK Kit contents 1. CYW9RPIWIFIBT-EVK evaluation board 3. USB-C to USB-C cable (with Raspberry Pi CM4 module and CYW955573 radio M.2 card) 4. Quick start guide (this document) 2. Two tri-band dipole antenna...
Page 2 Before you start 1. Ensure that you have the following: – PC with Type-C USB port – USB-compatible mouse and keyboard – Monitor with HDMI interface – Pre-flashed SD card present in the SD card slot (J17) 2. Connect the dipole antenna to SMA connectors on the baseboard and connect the antenna cable assembly to the UFL connectors (Main and Aux) on the M.2 radio card.
Page 3 Getting started with serial console access To access the serial debug console of the CYW9RPIWFIBT-EVK kit, do the following: 1. Ensure that you have the following: – PC with Type-C USB port – UART terminal so ware such as Tera Term or Minicom 2.

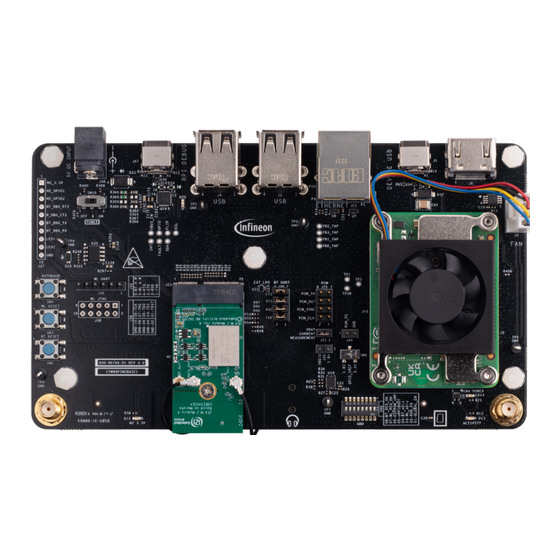

Page 4 CYW9RPIWIFIBT-EVK Evaluation Board details M.2 GPIO header (J37)** 16 CM4 activity LED (D13) Power on/o switch (SW10) 17 Micro SD card connector (J17)* 5 V DC jack (J48) 18 DIP control switches (SW8) WL UART connector (J35) 19 CM4 reset jumper (J49) Raspberry-Pi debug USB Type-C connector (J47) 20 M.2 VDDIO current measurement jumper (J36)
