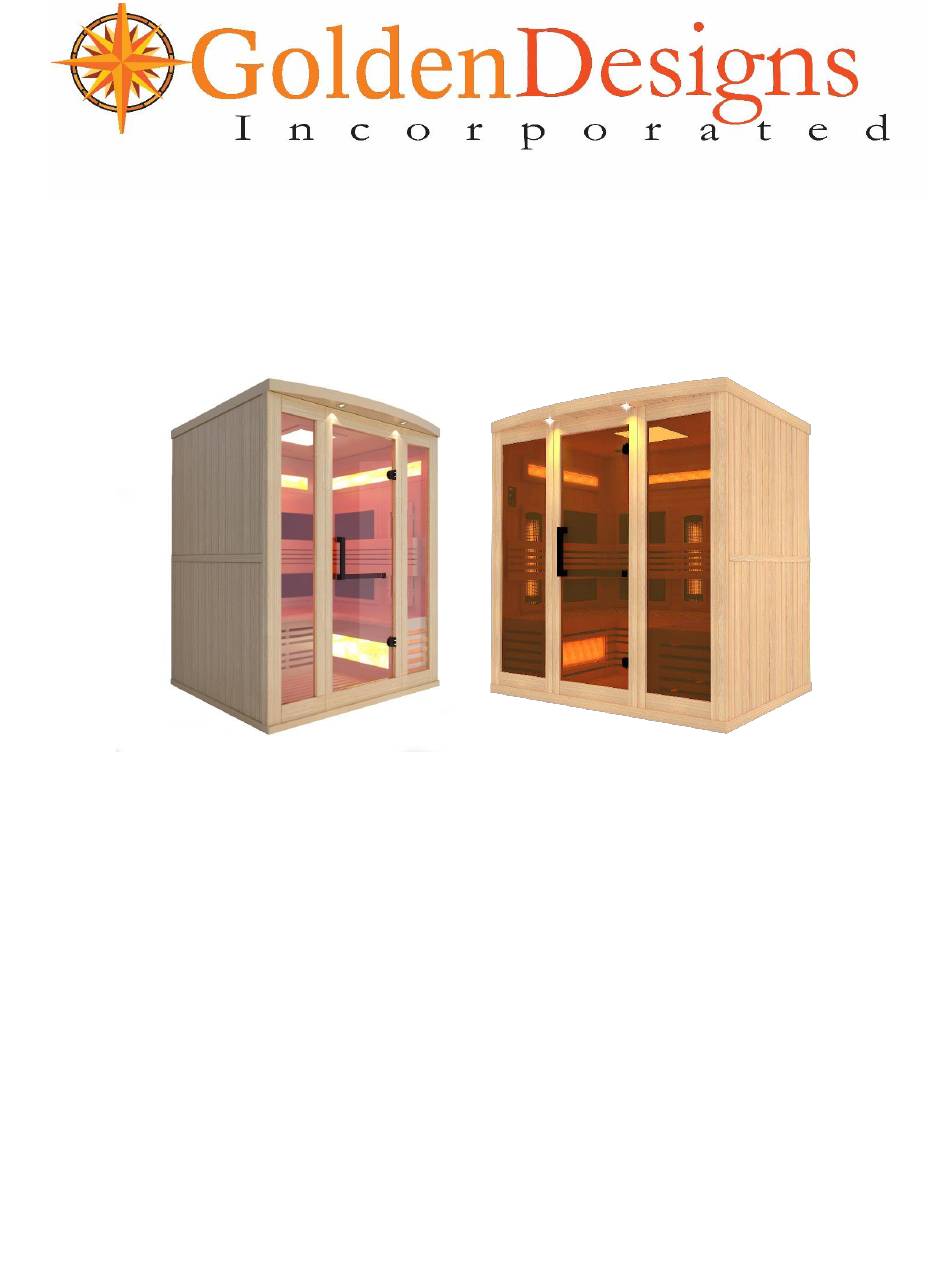

GDI-8230-01 / GDI-8260-01 2 and 3 Person Infrared Saunas Owner’s Manual CARBON MODEL SAUNA SAUNA IS FOR INDOOR USE ONLY Two 120VAC 15AMP Separate Dedicated Circuits Required Carefully and thoroughly read this Owner’s Manual before using/operating the sauna. We recommend keeping this Owner’s Manual for regular review and...
TABLE OF CONTENTS Packing List Visual Assembly Diagrams Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.
What Are Infrared Rays? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
Page 4
3mG-5mG, and our Near Zero EMF/Full Spectrum models range at less than 3mG (NIR heaters range at about 5mG-7mG at the same approximate 2 inches) EMF Levels from Common Homes Sources After many years and numerous studies on EMF exposure, no government body including the Occupational Safety and Health Administration (OSHA) have established permissible exposure limits (PEL).
HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* Visual Assembly Diagram GDI-8230-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.
Page 7
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* Visual Assembly Diagram GDI-8260-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* PARTS DESCRIPTION GDI-8230-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.
Page 9
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* PARTS DESCRIPTION GDI-8260-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.
Page 10
Power Supply The POWER SUPPLY is the control center of the sauna room. It is installed on the rooftop and has inputs/outputs connected to it. Your sauna should have two POWER SUPPLIES. (see Figure 1) Figure 1 POWER IN - main power of the sauna room HT1, HT2, HT3, HT4, HT5, HT6 –...
Page 11
III. MP3 Auxiliary Port The MP3 Auxiliary Port allows you to connect a MP3 player or other device with the auxiliary function to the speakers in the sauna room for your listening pleasure. (see Figure 2) Figure 2 Guide and Guide Inserts The guide and guide inserts are used to connect the wall panels to one another.
Page 12
FLOOR HEATER Cord FLOOR HEATER Figure 4 Understanding the Difference Between the Top and Bottom of the Wall Panels The wall panels are in the upright position when the Warning Labels and HIMALAYAN SALT panels are closer to the top of the wall. In addition, you will see the heat emitter cords coming from the topside of the wall panels.
Assembly Instructions 1. Choose a good location to assembly the sauna The location must be dry, level, and away from any source of water. The dedicated outlet must be easily accessible. Two adults will be needed to assemble. Wood Cabin Assembly: Floor Panel Front Panel Left Side Panel Right Side Panel...
Page 14
NOTE: If any of the wall panels do not slide all the way down, then follow this tip: 1. First, remove the side wall panel. 2. Locate the guide and guide insert brackets on the two wall panels (6 pieces total). 3.
Page 15
5. Installing the REAR PANEL A. Please note that the REAR PANEL comes in two pieces. It would be easiest to assemble the two pieces on your floor and then lift the entire REAR PANEL (as a single panel) up and onto the FLOOR PANEL. You may need to open up the RIGHT SIDE PANEL and LEFT SIDE PANEL to fit the REAR PANEL between the two.
PANEL SUPPORT connection to the connection coming from the RIGHT PANEL. C. You will have (3) BENCH pieces for sauna model GDI-8230-01 and (5) pieces for sauna model GDI-8260-01. When installing the BENCHES, start from the left and work your way to the right. Install the BENCHES by sliding them over the BENCH HEAT EMITTER PANEL SUPPORT and HIMAYLAYAN SALT PANEL SUPPORT.
Page 17
Figure 16 7. Installing the BACKRESTS A. It is time to install the BACKRESTS. If you have sauna model GDI-8230-01, then you will have (2) BACKRESTS of which the longer one will be installed on the REAR PANEL and the shorter one on the RIGHT SIDE PANEL. If you have...
Page 18
Figure 17 Figure 18 8. Installing the REAR WALL HIMAYLAYAN SALT BAR A. Locate the area on the REAR PANEL to install the REAR WALL HIMAYLAYAN SALT BAR. You will first need to connect the LED BACKGROUND LIGHT as seen in Figure 19. Use the provided (6) screws to mount the REAR WALL HIMAYLAYAN SALT BAR to the REAR PANEL.
Page 19
Figure 20 9. Installing the ROOF PANEL A. The side of the ROOF PANEL with the power supply (control box) is the top of the roof panel. B. The edge with the curve is the front of the ROOF PANEL. Be careful of the wires coming from the SIDE and REAR PANELS when you set the ROOF PANEL down onto the panels.
Page 20
10. Connecting the plugs on the ROOF PANEL A. Connect the cords according to their respective labels. (see Figure 22) B. Connect the CTRL connection from the power supply to the CTRL connection from the control panel. (see Figure 22 & 23) C.
Page 21
the long handle and rotate clockwise. Finally, you can secure the other end of the vertical handle by screwing it to the glass door. (see Figure 26) Figure 26 Please Note: The black plastic protective corners around the glass door corners will need to be removed upon using the sauna.
Page 22
Please Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR (inside the Accessory Box) in the case that the TEMPERATURE SENSOR is damaged during transit. The manufacturer decides this according to sauna models and packaging. 11. Installing the ROOF DUST COVER (optional) A.
Operating the Sauna NOTE: Before the sauna is turned on, remove plastic protective covering from the CONTROL PANELS. Please check and confirm that the connections to the POWER SUPPLY (including the power cord), HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected properly and are snug and tight. The power supply voltage and frequency must match the requested voltage and frequency of the sauna (120VAC 15AMP Dedicated Circuit or 120VAC 20AMP Dedicated Circuit).
Page 24
1. Plug the sauna into the wall outlet. 2. Press the POWER button once. The POWER light will come on, the TIME DISPLAY will show 90 (minutes), the TEMPERATURE DISPLAY will show 151 F / 66 C, and the control panel will flash. 3.
Page 25
panel. The white light will come on. While pointing the remote at the ceiling light, you can press any of the colors on the remote and that color will be displayed. You can use the SHADE button on the remote to go through a sequence of colors. If you want to turn the light off during your sauna session, you can press the POWER button on the remote.
sauna room before it has reached the set temperature. Also, the most commonly used temperature setting is between 118 degrees Fahrenheit / 48 degrees Celsius and 122 degrees Fahrenheit / 50 degrees Celsius. The way the sauna room works is when you set the Control Panel to say 120 degrees F / 49 degrees C, the heat emitters will turn off when that set temperature is reached.
9. To utilize the sauna’s heat therapy effect, put oil and treatment into your hair and wrap it with a towel. After your sauna session is over, rinse your hair thoroughly. 10. The peaceful and relaxed state rendered by a sauna session may help you to sleep easier and deeper.
12. Do not use any type of cleaning agents on the interior of the sauna. Only wipe down the sauna room with water and a damp cloth. Never use any chemical based cleaners. 13. Do not stack or store any objects on top of or inside the sauna. 14.
near a swimming pool (if water will splash on the sauna). 2. Do not use liquid cleaners or aerosol cleaners on the sauna. Unplug the sauna from the wall outlet before cleaning. Use plain water and a soft damp cloth for cleaning.
Page 30
temperature reading, then the temperature sensor may not be plugged in properly or it may be damaged or the power supply may be defective. Go up to the rooftop of the sauna and locate the temperature sensor connection wires near the air vent towards the rear of the sauna. After you have located the wires labeled “TEMP SENSOR”, disconnect the connection and reconnect the connection.
Page 31
the power supply on the roof of the sauna to make sure there are no signs of malfunctioning, such as a high temperature, burning odor, or strange sounds. Also, check to make sure none of the power cords are damaged. If the power supply is malfunctioning or power cords are damaged, then unplug the sauna immediately and contact the Customer Service.
Page 32
2. Disconnect the "PANEL CONTROL" harnesses (both ends) and then reconnect making sure that the connection is snug and tight. 3. Also and while up on the roof, please located the temperature sensor wire. The temperature sensor is the black probe that is sticking out of the interior ceiling above your head as you sit on the bench.
Page 33
outlet. You will need to contact Customer Service if the power supply cord is damaged as the power supply will need to be replaced. 6. Bluetooth Solution: Please note that you can only have a single device connected to the Bluetooth at any given time. You must unpair your device before connecting with another device.
Page 34
10. Lower Heat Emitters Solution: With regards to the lower heat emitters under the bench and on the floor, these heat emitters operate a bit different than the wall heat emitters. As the bench heat emitter and floor heat emitter (200W/125W each) are of much less wattage than the wall heat emitters (300W each), they will not get nearly as hot as the wall heat emitter panels.
Page 35
a majority of your perspiration while adding comfort as you sit on the bench. Use the second towel to constantly wipe the perspiration from your body to perspire faster and also to avoid having too much perspiration dripping onto the floor heater. Never place any towels over the floor heater. 13.
Limited Lifetime Warranty 5 Year Limited Warranty: Golden Designs, Inc. under the Dynamic brand name warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only.
Page 37
▪ Use of product not in accordance with instructions ▪ Worn out receptacle Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods. This includes minor cracks due to wood expansion and contraction. Note: Since the wood used in construction has been kiln dried, a certain amount of expansion and contraction occurs in the wood in a sauna environment.
WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
