Summary of Contents for Reed Instruments R9030

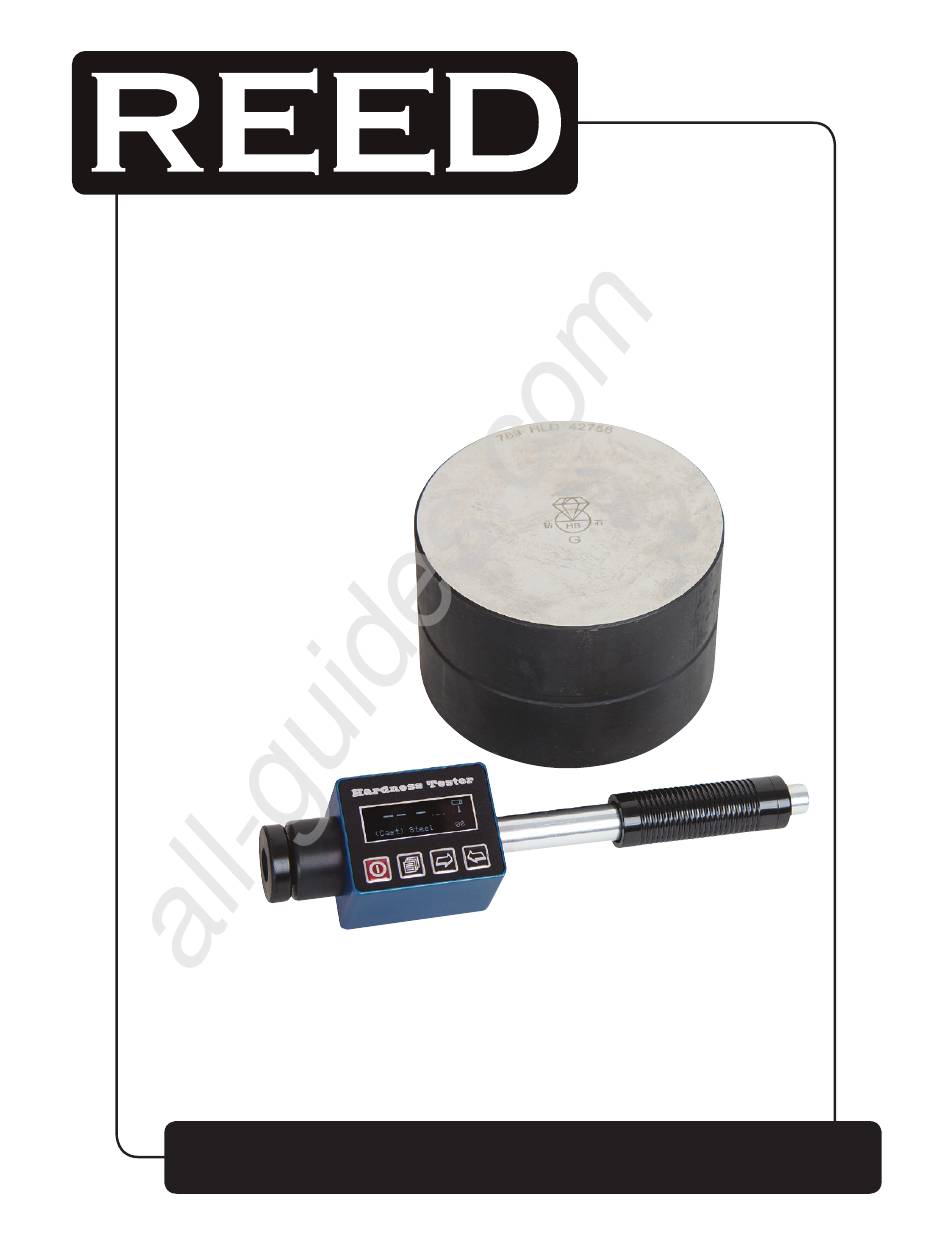

  • Page 1 All manuals and user guides at all-guides.com Rich Black - 20/20/20/100 R9030 Model Hardness Tester Only if you REALLY need them: Instruction Manual reedinstruments REED-Direct.com info@REED-Direct.com 1.888.610.7664...
  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents Features ...................... 2 Applications ....................3 Specifications ..................3-5 Instrument Description ................6 Operating Instructions ................7 Navigating Instrument Menu ..............7 Instrument Calibration ................7 Charging ....................8 Battery Replacement .................. 8 Maintenance ....................
  • Page 3: Applications

    All manuals and user guides at all-guides.com Applications • Ideal for hardness testing of large and heavy objects • In production lines of mass produced components • Materials identification in stores and warehouses • In locations with difficult access, or in confined spaces • The assembled machinery and permanently installed parts • Failure analysis of pressure vessel, steam turbo-generator set and other equipment Specifications • Measuring device type: D, DL, DC, D+15 or C • Measuring device feature: Type D is included. Type DL, DC, D+15 or C are optional accessories. Non conventional impact devices DC(D)/DL D+15 Impacting energy...
  • Page 4 Available type D: General test D+15: C: small, DC: Hole or hollow-cylindrical test groove or light,thin impact device DL: Slender narrow groove or hole reentrant parts or test surface surface of hardend layer R9030 includes D impact device. Please note that impact devices DL, DC, D+15 and C can be ordered seperately. For more information please contact us at 1-877-849-2127 or at info@REEDinstruments.com. Type of impact Hardness value Error of Repeatability device of standard displayed of displayed Leeb hardness value value block D (included) 760±30HLD...
  • Page 5 All manuals and user guides at all-guides.com DL (optional) 878±30HLDL ±12 HLDL 12 HLDL 736±40HLDL D+15 (optional) 766±30HLD+15 ±12 HLD+15 12 HLD+15 544±40HLD+15 C (optional) 822±30HLC ±12 HLC 12 HLC 590±40HLC Measuring Range HLD 170~960 HLD Measuring Direction 360° Hardness Scale HL, HB, HRB, HRC, HRA, HV, HS Display OLED, 128×36 dot matrix Operating Conditions Ambient Temperature 32 - 104 °F (0 °-40 °C) Operating Conditions Relative Humidity 0-90% Memory up to 350 groups of information Range of Upper and Lower Limit the same as measuring range Charging Time 2 hours...
  • Page 6: Instrument Description

    All manuals and user guides at all-guides.com Instrument Description On / Off Menu / Confirm / Scan enter / Scan exit Measuring set short cut / Scan direction / Increase number Back space / store notice / Delete notice / Decrease number Display Description 1. Battery information: Current battery level. 2. Impact direction: Current impact direction. 3. Hardness scale: Hardness scale of current measuring value. 4. Measured value: Current single measured value (without average Blue - 100/80/30/5 ntone 534 Blue Yellow - 0/27/100/0 ntone 123 Yellow value indicator), current average value (with average value indica- Red - 10/100/100/5 ntone 485 Red tor). Yellow - 0/27/100/0 ntone 123 Yellow 5. Material: Current set material.
  • Page 7: Operating Instructions

    All manuals and user guides at all-guides.com Operating Instructions Power On/OFF Press key to turn power on or off. Note: if the tester has been shut down, it will start up automatically when charging The tester will display main interface once powered on as follows: Navigating Instrument Menu When testing is finished, press key to browse data. Press key to scroll through data. If you want to delete displayed data, press the key. Use the key to confirm selection. Press the key to return back to main menu. Press key again to exit. Instrument Calibration The tester and impact device must be calibrated with a standard Leeb hardness test block prior to the first use, or after not using the instrument for an extended period of time. Press key as well as key at the same time to enter instrument cali- bration. The interface impact times is set to 5. And the impact direction should be vertically down on the Leeb hardness test block. Average value will be showed after measuring. Press key to input nominal value. Press key to finish calibration and back to the main unit.
  • Page 8: Charging

    All manuals and user guides at all-guides.com Charging Battery symbol will flash if battery capacity is close to empty. The tester will automatically switch on during charging. and will flash alternately while in charge mode. will flash once fully charged. Battery Replacement The R9030 is equipped with a lithium rechareable battery. Battery life expectancy with regular use is 3 years. Should you require a new battery please contact REED Instruments 1-877-849-2127 or at info@REEDinstruments.com Maintenance • After using the impact device 1000 times, it is recommended to use the nylon brush provided to clean the guide tube and the impact body of the impact device. To clean the guide tube, unscrew the support ring and then take out the impact body. Use the nylon brush to clean in a counter-clock direction. Repeat this 5 times and remount the impact body and the support ring. • Remember to release the impact body after use • It is strongly recommended to not use any lubricant agent to clean the impact device • The tester should be stored at room temperature, away from vibration, strong magnetic field, corrosive medium, dampness and dust. For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com Blue - 100/80/30/5 ntone 534 Blue...
