Summary of Contents for Reed Instruments BX-500

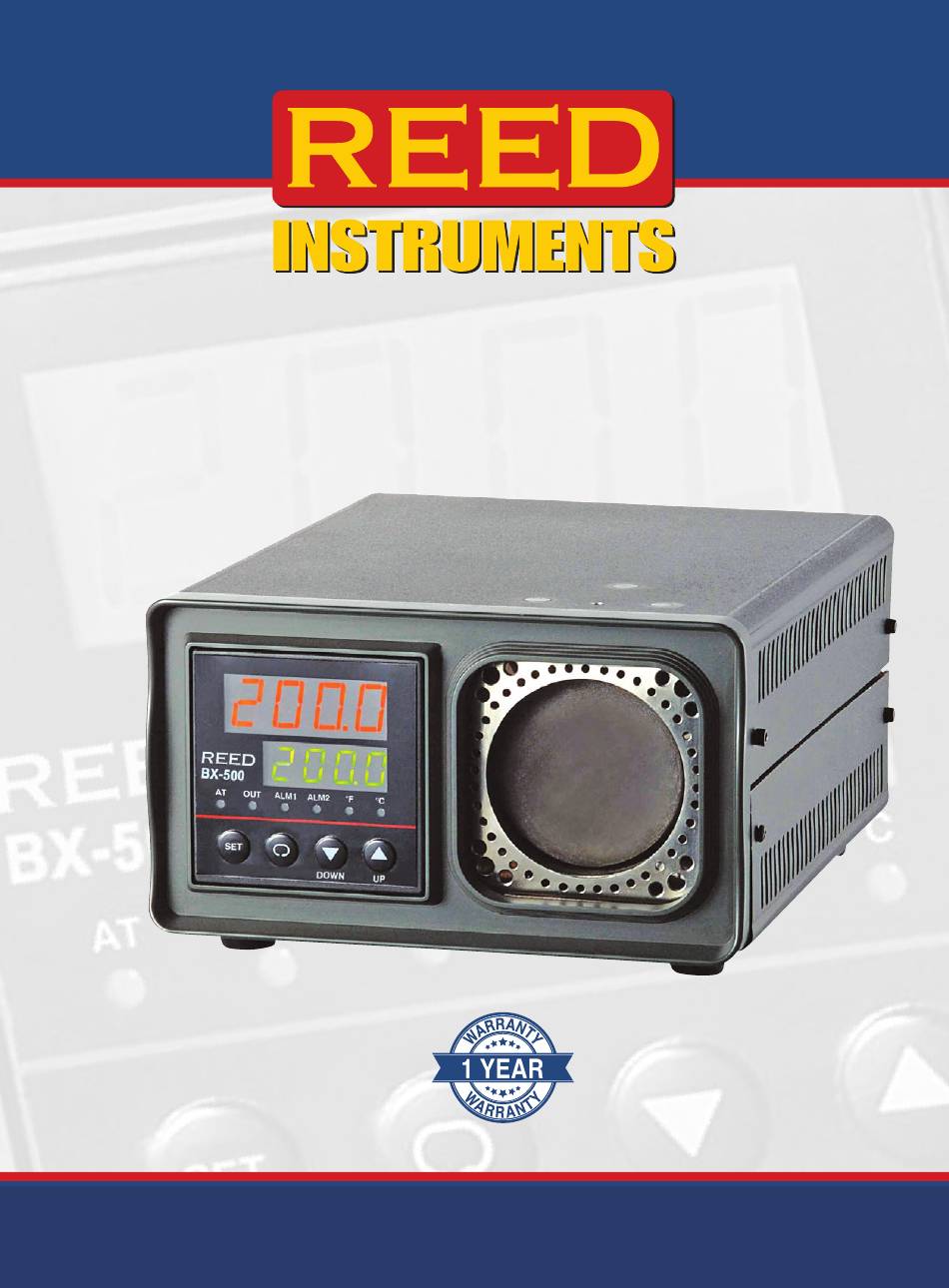

- Page 1 BX-500 Infrared Temperature Calibrator Instruction Manual www.REEDINSTRUMENTS.com REED-Direct.com info@REED-Direct.com 1.888.610.7664...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Product Quality ................... 3 Safety ......................3-4 Features ...................... 4 Specifications ..................... 5 Included ...................... 5 Environmental Conditions ................6 Instrument Description ................7-8 Status Indicator Description ............... 8 Keypad Description ..................9 Operating Instructions ................9-12 Initial Start Up .................. -
Page 3: Introduction

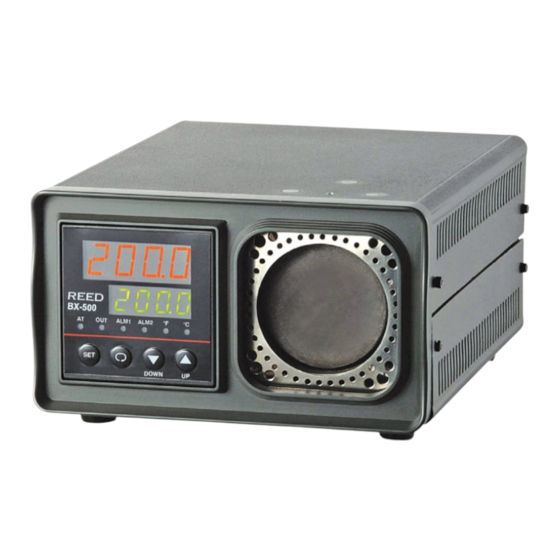

Introduction Thank you for purchasing your REED BX-500 Infrared Temperature Calibrator. This calibrator provides accurate temperatures to calibrate non-contact temperature instruments. The BX-500 is capable of generat- ing temperatures up to 932°F (500°C) and is designed to accommodate various infrared thermometers. Please read the following instructions carefully before using your instrument. -
Page 4: Features
• High voltage is used in the operation of this equipment. Severe injury or death may result if one fails to observe safety precautions. • Always replace the fuse with one of the same rating, voltage, and type. • Overhead clearance is required. Do not place this instrument under a cabinet or other structure. • Do not operate near flammable materials. • Use of this instrument at high temperatures for extended periods of time requires caution. • Components and heater lifetime can be shortened by continuous high temperature operation. • Do not use fluids to clean the target surface. Features • For calibrating non-contact temperature instruments (infrared thermometers, pyrometers and thermal imagers) • Wide aperture compensates for optical infrared thermometer variations • Contact RTD reference well located directly behind the blackbody target to assure accurate results www.REEDINSTRUMENTS.com REED-Direct.com... -
Page 5: Specifications
Specifications Temperature Range: 122 to 932°F (50 to 500°C) Accuracy: ≤212°F (100°C): ±1.6°F (0.8°C) 212 to 392°F (100 to 200°C): ±3.2°F (1.6°C) 392 to 932°F (200 to 500°C): ±5.6°F (2.8°C) Stability: ≤212°F (100°C): ±0.2°F (0.1°C) 212 to 392°F (100 to 200°C): ±0.4°F (0.2°C) 392 to 932°F (200 to 500°C): ±0.8°F (0.4°C) Resolution: 0.1°F (0.1°C) -
Page 6: Environmental Conditions
Environmental Conditions This instrument should not be operated in an excessively dusty or dirty environment and operates safely under the following conditions: • Temperature range: 41 to 95°F (5 to 35°C) • Ambient relative humidity: 15 to 80% • Pressure: 75 to 106kPa • Mains voltage within ±10% of nominal • Temperature difference between the target surface and the RTD PT100 reference well located directly behind the target surface are calculated as shown in the graph below. -
Page 7: Instrument Description
Instrument Description BX-500 1. Temperature Indicator 8. Infrared Target Surface (Red LED) 9. RTD Reference Well (For Calibration Purposes Only) 2. Set Temperature Indicator (Green LED) 10. Fan 3. Status Indicators 11. Heating System Fuse 12. Control System Fuse 4. Set Button 13. Power Socket 5. -
Page 8: Status Indicator Description
Note: The fan inside the calibrator has two speeds and runs continu- ously when the unit is in operation. The fan runs slow for heating and maintaining operation and runs fast for rapid cooling. The area around the calibrator must be kept clear to allow adequate ventilation. The airflow is directed out the front and can be extremely hot. Status Indicator Description Note: Using any other parameter other than the ones described in this manual will affect performance and could damage the calibrator. -
Page 9: Keypad Description
Keypad Description The four button keypad allows for easy set-point temperature. The temperature set-point can be set to a resolution of 0.1°F or °C. The SET button is used to confirm the selected value within the parameter and to exit the set up mode and resume normal operation. -
Page 10: Turning Off The Calibrator
Turning Off the Calibrator It is recommended to select a set-point less than 140°F (60°C) and allow the unit to cool down before turning it off. Warning: Do not turn the instrument off at a temperature higher than 212°F (100°C). Lower the temperature below 212°F (100°C) before powering off. -
Page 11: Setting Overload Alarms 1 & 2
Setting Overload Alarms 1 & 2 The calibrator allows a user to set overload alarms when the calibrator temperature is over the temperature set-point. When set and triggered, will turn off the heating power. When set and triggered, will turn the cooling fan on. Note: The default high overload alarms are set to 5°C (8°F). These alarms can be set by following the steps below: Press the button two times until the top screen displays Use the... -
Page 12: Keypad Lock/Unlock
Keypad Lock/Unlock The calibrator allows a user to lock/unlock the keypad to avoid unwanted changes to the settings. Follow the steps below to lock or unlock the keypad. Press the button four times until the screen displays & Use the arrows to select between LoC1, LoC2 & oFF which will fl ash until confi rmed. -
Page 13: Product Care
(1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. In order to begin the warranty service process, please contact us by phone at 1-877-849-2127 or by email at info@reedinstruments.com to discuss the... -
Page 14: Product Disposal And Recycling
Your product contains electronic components and must be disposed of separately from standard waste products. Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 15 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! www.REEDINSTRUMENTS.com REED-Direct.com info@REED-Direct.com 1.888.610.7664...
- Page 16 www.REEDINSTRUMENTS.com REED-Direct.com info@REED-Direct.com 1.888.610.7664...
