Product Disposal and Recycling ..............8 Product Support ..................8 Introduction Thank you for purchasing your REED R7200 LED Stroboscope. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Safety
Safety • Do not use this instrument in any manner inconsistent with these operating instructions or under any conditions that exceed stated environmental specifications. • WARNING! Certain strobe frequencies can trigger epileptic seizures. • Do not stare directly at the light source. •... -
Page 4: Specifications
Specifications Measuring Range: 60 to 99,999FPM/RPM Accuracy: ±0.001% Resolution: 1FPM/RPM General Specifications Display Type: 5-digit LCD Internal Phase Shift: Light Source: 16 LED Array Selectable Units: FPM or Hz Low Battery Indicator: Power Supply: 7.4V 2000mAh rechargeable Li-ion battery Battery Life: Approx. -
Page 5: Instrument Description

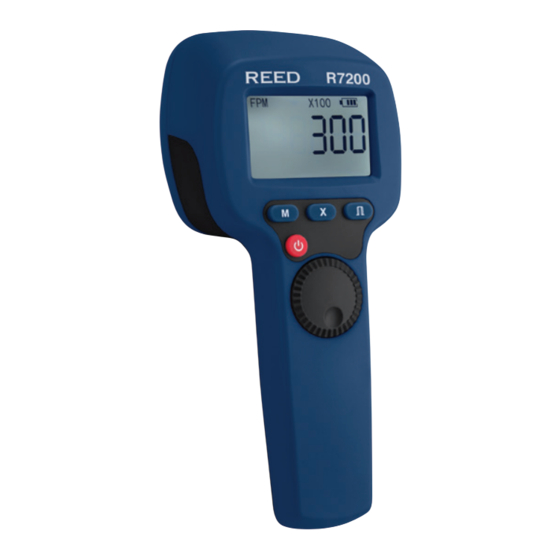

Instrument Description 1. LEDs 7. FLASH OUTPUT SPEED/RESET Button 2. MODE Button 8. Battery Status Indicator 3. POWER Button 9. Flash Rate 4. Rotary Dial Multiplier Indicator 5. USB Interface 10. Unit of Measurement 6. COUNTER CLOCKWISE ROTATION Button 1.800.561.8187 information@itm.com www. -
Page 6: Operating Instructions
Operating Instructions Power ON/OFF The R7200 is powered by an internal rechargeable battery and should be charged before use. (See the Charging the Battery section for further details) To turn the meter ON or OFF, press the POWER button. Using the Function Buttons... -
Page 7: Measuring Procedure
Charging the Battery Connect the R7200 via the included cable to a USB port on your PC or into a wall outlet using a USB Power Adapter (not included) to charge the Li-ion battery. -
Page 8: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 9 TEST & MEASURE WITH CONFIDENCE Access our Product Catalog Over 200 portable test and measurement instruments 1.800.561.8187 information@itm.com www. .com...
