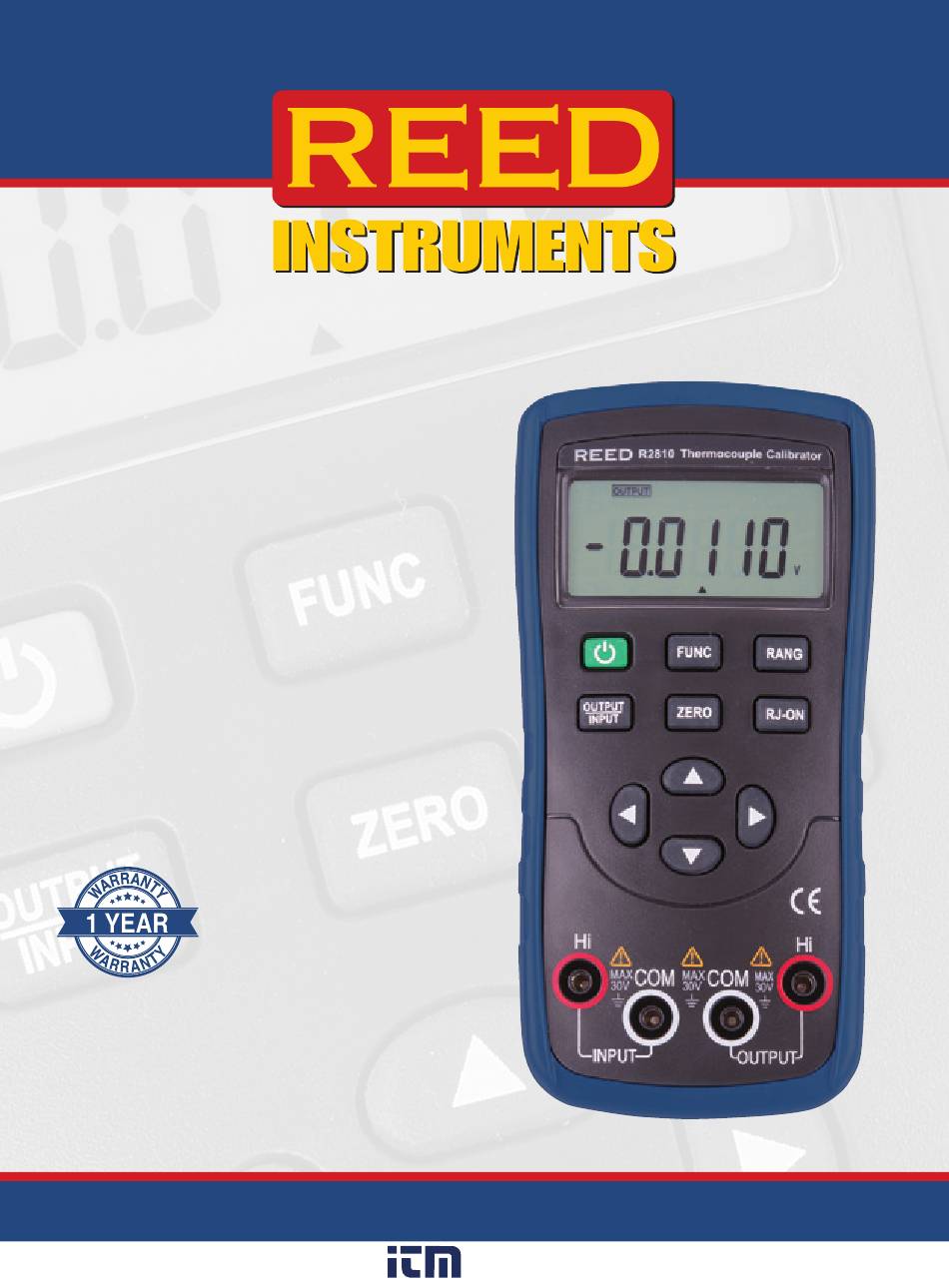

- Page 1 R2810 Thermocouple Calibrator Instruction Manual 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................2 Product Quality ................... 3 Safety ......................3 Features ...................... 4 Included ...................... 4 Specifications ..................4-5 Output Functions ................... 4 Measure Functions................. 5 General Specifications ................5 Instrument Description ................6 Display Description ..................7 Operating Instructions ................8-11 Power ON/OFF .................. -
Page 3: Introduction
Introduction Thank you for purchasing your REED R2810 Thermocouple Calibrator. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality This product has been manufactured to meet the stated product specifications. -
Page 4: Features
Features • Source and measure 8 thermocouple types, including R, S, B, E, K, J, T, N; and volts • Basic accuracy of 0.05% • Internal cold junction compensation • Easy to read 6-digit LCD display • Zero adjustment button • User selectable unit of measure (°F/°C) • Low battery indicator and auto shut off Included • Test Leads • Alligator Clips • Thermocouple Adapter • Protective Holster • Batteries Specifications Output Functions Accuracy specified at 23°C ±5°C & 75% RH for a period of one year after calibration. Output Range Output Range Resolution Accuracy 100mV... -
Page 5: Measure Functions
Measure Functions Output Range Output Range Resolution Accuracy 100mV -10.00mV to 110.00mV 0.01mV 0.05% rdg. +30µV ±0.05% rdg. +3°C -40 to 1760°C 1°C (≤100°C) ±0.05% rdg. -20 to 1760°C 1°C +2°C (>100°C) ±0.05% rdg. +3°C 400 to 1800°C 1°C (≤600°C); ±0.05% rdg. +2°C (>600°C) -200.0 to 1000.0°C 0.1°C -200.0 to 1370.0°C 0.1°C ±0.05% rdg. +2°C -200.0 to 1200.0°C 0.1°C (≤-100°C) ±0.05% rdg. +1°C (>-100°C) -200.0 to 400.0°C 0.1°C -200.0 to 1300.0°C 0.1°C General Specifications Display: 6-Digit LCD Zero Adjustment Button: Kick Stand:... -
Page 6: Instrument Description

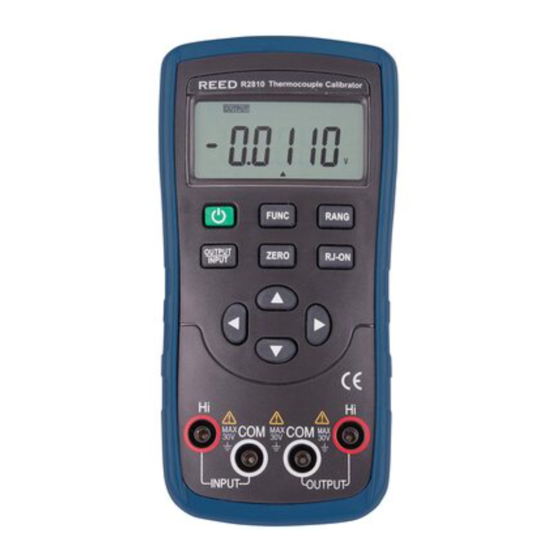

Instrument Description R2810 Thermocouple Calibrator RJ-ON OUTPUT Pt1000 Pt200 Pt500 Cu50 Cu10 Ω°C°F OUTPUT INPUT 1. LCD Display 2. POWER Button 3. Input/Output Button 4. Zero Reset Button 5. Function Selection Output Button 6. Range Selection Button 7. RJ-ON Button (T/C Cold Junction Compensation Button) Output Value Setting Button 9. Output Digit Selection Button 10. I nput/Output terminals... -
Page 7: Display Description
Display Description RJ-ON OUTPUT INPUT C°F OUTPUT Indicates that the instrument is in output mode. INPUT Indicates that the instrument is in input mode. Indicates that the instrument is performing its reference cold junction compensation. Indicates battery power is low and batteries need to be replaced. -
Page 8: Operating Instructions
Operating Instructions Power ON/OFF Press the POWER button to turn the instrument on. To turn the instrument off, press and hold the POWER button. Auto Power-Off As a default, the instrument will automatically turn off after 15 minutes of inactivity. To turn off this feature: Turn the meter off. -
Page 9: Output Function
Output Function • The output terminal of the instrument can produce DC voltages or can simulate thermocouple temperature set by the user. Do not apply any voltage to the output terminal during the operation. If any improper voltage is applied to the output terminal, it will cause damage to the internal circuit. Simulating Output from DC Voltage Insert one end of the test lead into the output (OUTPUT) terminal of the... -
Page 10: Measure Function
Press the button to change the numerical value of each digit. (Numerical value cannot be changed beyond range maximum.) Automatic compensation for cold junction temperature. Note: While calibrating an instrument with cold junction temperature compensation, press the RJ-ON button so that the meter can start the function of automatic cold junction compensation. The meter will output the necessary temperature thermoelectric force, and display 'RJ-ON': Output thermoelectric force = corresponding thermoelectric force of set temperature –... -
Page 11: Measuring Dc Voltage
• Pay particular attention not to connect the current signal to the input terminal. Incorrect connection may cause damage to the meter and the instrument under test. Measuring DC Voltage Insert one end of the test lead into the INPUT terminal of the meter and connect the other end to the output terminal of the instrument under test, as shown in the diagram to the right. Press INPUT/OUTPUT button to select the Input function. 'INPUT', 'mV' will be displayed. -
Page 12: Battery Replacement
Battery Replacement When the battery symbol appears on the display that the battery needs to be replaced. Ensure that the meter is turned OFF and remove any test leads from the meter terminals. Lift the tilt stand on the back of the unit to access the battery compartment door which can be removed using a Phillips head screwdriver. -
Page 13: Accessories And Replacement Parts
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 14: Product Disposal And Recycling
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 15 TesT & MeasuRe wITh ConfIdenCe CheCk ouT ouR laTesT PRoduCTs! 1.800.561.8187 information@itm.com www. .com...
- Page 16 1.800.561.8187 information@itm.com www. .com...
