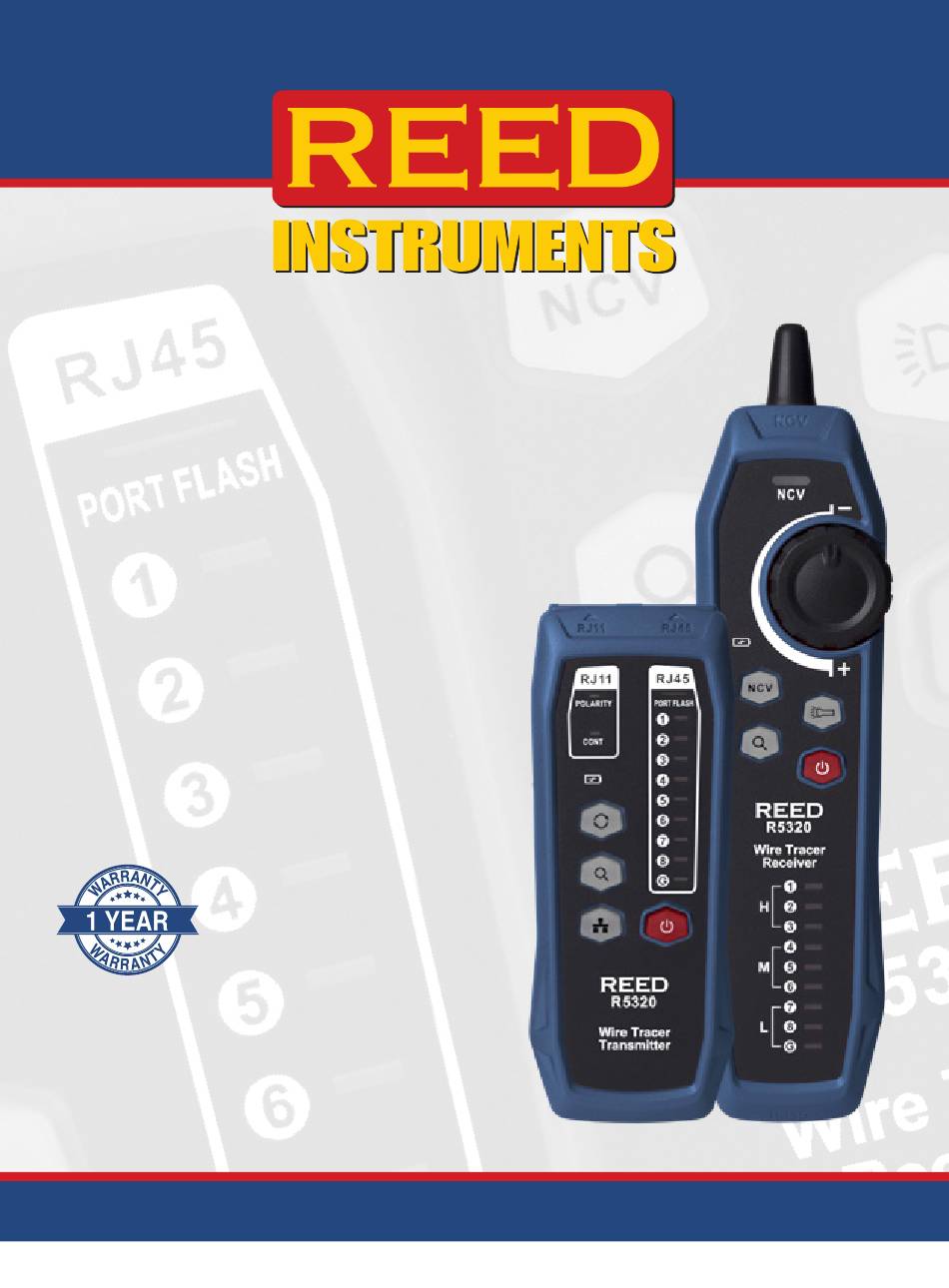

- Page 1 R5320 Wire Tracer and Circuit Testing Kit Instruction Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Product Disposal and Recycling ..............10 Product Support ..................10 Introduction Thank you for purchasing your REED R5320 Wire Tracer and Circuit Testing Kit. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Product Quality
Product Quality This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet the stated product specifications. If a certificate of calibration is required please contact the nearest authorized REED distributor or authorized Service Center. Please note an additional fee for this service will apply. -
Page 4: Included
Included • Transmitter • Receiver • Micro-USB Charging Cable • RJ11 Adapter Cable • RJ45 Adapter Cable • RJ11 Alligator Clip Adapter Cable • Carrying Case Specifications Testing Modes • RJ45 (Ethernet) Network cable tracing • RJ11 (Telephone) Line tracing •... - Page 5 General Specifications Signal Mode: Modulation signal (125kHz) Visual Indicator: Yes (LEDs) Audible Indicator: Yes (Pulsating beeper) Sensitivity Settings: Yes (Adjustable wheel) Compatible Wire Type: RJ-11, RJ-45, Alligator clips for connection to non-terminated wire Non-Contact Voltage Detector: Yes (40 to 1000VAC) Earphone Jack: Yes (3.5mm) Built-in Flashlight:...
-
Page 6: Instrument Description

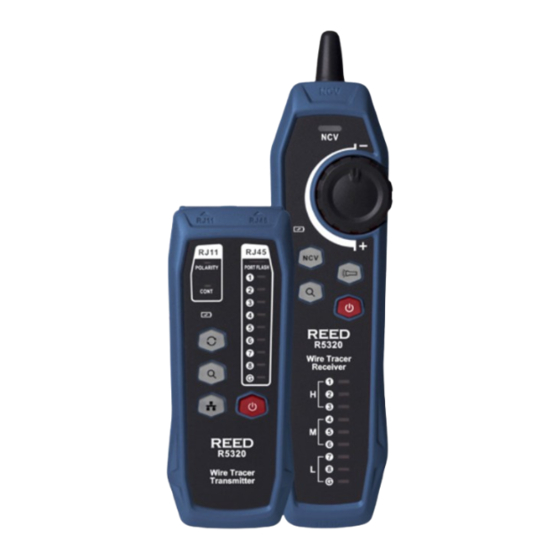

Instrument Description R5320 Wire Tracer Receiver R5320 Wire Tracer Transmitter 11. Antenna 1. RJ11 Jack 12. NCV Indicator 2. POLARITY Indicator 13. Charging State Indicator 3. CONT Indicator 14. NCV Button 4. Switch Button 15. Tracking Button 5. Tracking Button 16. -
Page 7: Operating Instructions
Operating Instructions Network Line Tracking Insert the RJ45 plug of the network line into the RJ45 jack of the transmitter. Plug the other end of the RJ45 plug into the port. Turn on the transmitter by pressing the Power button. Press the button on the transmitter to enable the tracking function. -
Page 8: Demonstration Of Tracking Operation
Locating cables Isolating cables Wall socket (RJ11/RJ45 socket) Volume control Test indicators R5320 Wire Tracer Transmitter RJ45 Cable Validating Insert both ends of the RJ45 cable under test into the RJ45 jacks of the transmitter and receiver. Power ON the transmitter and receiver. -
Page 9: Rj11 Cable Validating
Verify the state of the cable (good wiring, short circuit, open circuit, miswire) according to the line sequence indicators on the transmitter and receiver. See image below for additional information on the indicators. R5320 Transmitter Lamp Signal R5320 Receiver Lamp Signal 1 to 8... -
Page 10: Non-Contact Voltage Detector
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 11: Product Disposal And Recycling
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 12 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
