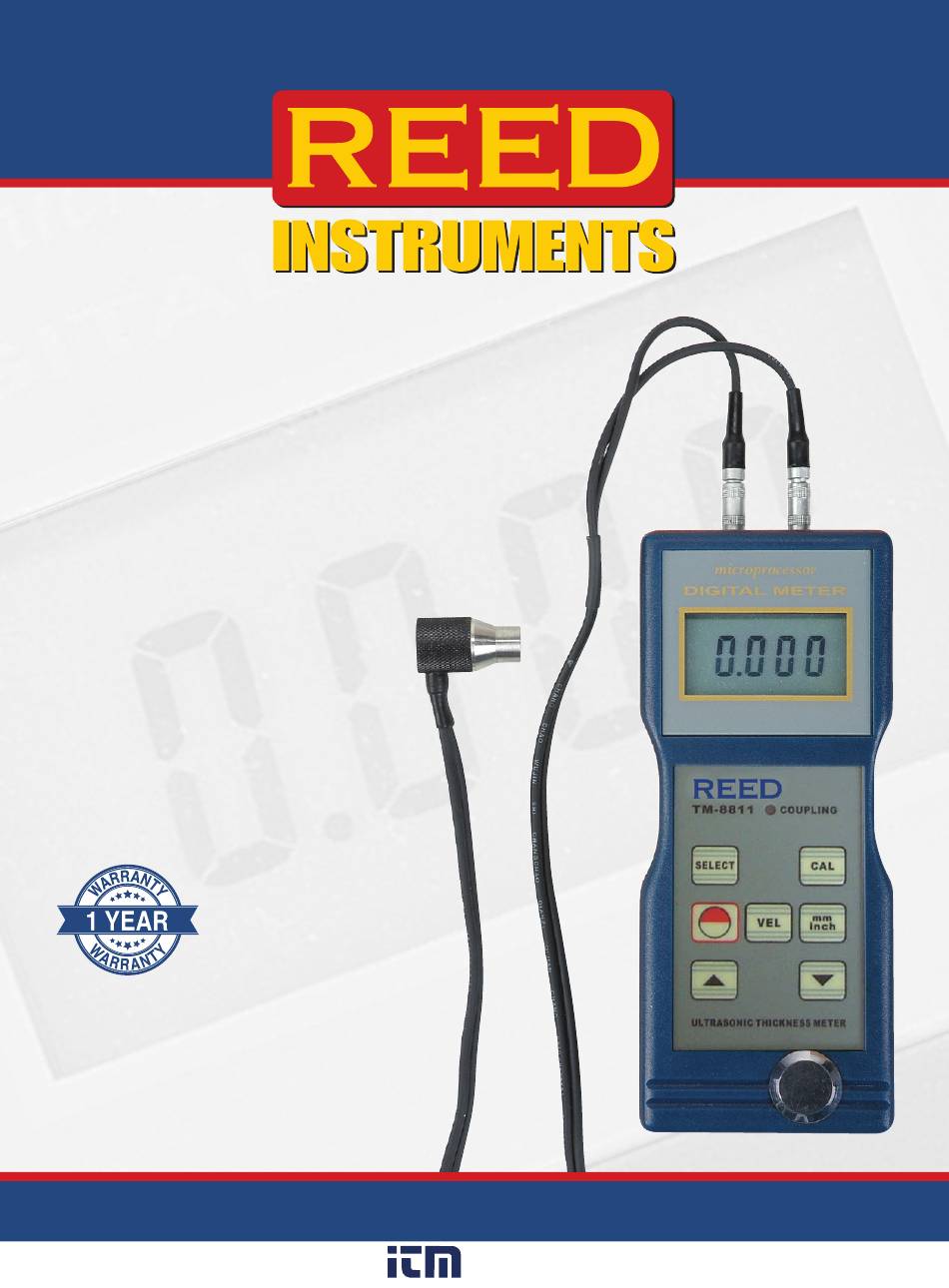

- Page 1 TM-8811 Ultrasonic Thickness Gauge Instruction Manual www.REEDINSTRUMENTS.com 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Product Quality ................... 3 Safety ......................3 Features ...................... 3 Specifications ..................... 4 Included ...................... 4 Instrument Description ................5 Operating Instructions ................6-12 Initial Calibration ..................6 Material Mode Selection ..............6-8 Selecting Pre-loaded Materials .............6-7 Measuring Procedure ............... -
Page 3: Introduction
Introduction Thank you for purchasing your REED TM-8811 Ultrasonic Thickness Gauge. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality This product has been manufactured in an ISO 9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. -
Page 4: Specifications
Specifications Measuring Range: 0.05 to 7.9" (1.5 to 200mm) Accuracy: ±(0.5% + 0.1mm) Resolution: 0.004"/0.1mm Velocity Range: 500 to 9000m/s Compatible Materials: Steel, cast iron, aluminum, red copper, zinc, quartz glass, polyethylene, PVC, grey cast iron and nodular cast iron Sampling Time: Less than 1 second Display: 4-Digit, LCD Probe Length: 3' (36") Low Battery Indicator: Power Supply: 4 x AA Batteries Product Certifications: Operating Temperature: 32 to 122°F (0 to 50°C) -
Page 5: Instrument Description

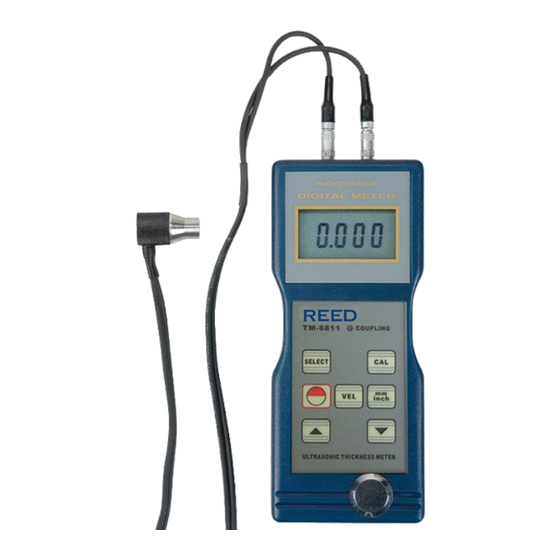

Instrument Description 1. Ultrasonic Sensor 8. LCD Display 9. Coupling LED 2. Material Selection Button 3. Power Button 10. Calibration Button 4. Up Arrow 11. Unit of Measure Button 5. Calibration Test Block 12. Down Arrow 6. Probe Connectors 13. Velocity Button 14. Battery Cover (Back) 7. -
Page 6: Operating Instructions
Operating Instructions Insert the ultrasonic sensor into the probe connectors on the meter. Press the Power button to turn the meter on. The LCD will display "0" and the selected unit of measure. Initial Calibration Place a small drop of coupling gel (R7950) on the 5mm calibration test block. Press the CAL button and "CAL" will appear on the display. Place the sensor on the calibration test block while ensuring the coupling indicator appears on the display and the coupling LED turns on. - Page 7 "XXXX" is a 4-digit number that represents the sound velocity of the material that can be adjusted by the user (For entering and adjusting Sound Velocity please see "Setting the Sound Velocity for a known Material". Code Material Cd01 Steel Cd02 Cast Iron Cd03 Aluminum Cd04 Copper Cd05 Brass Cd06 Zinc Cd07 Quartz / Glass Cd08...
-
Page 8: Measuring Procedure
Measuring Procedure Once the material has been selected, follow steps 1 through 4 below to perform a measurement. While the meter is on, press the mm/inch button to select the cor- rect unit of measure. After applying coupling gel on the material, place the sensor firmly against the desired measurement area. - Page 9 Press the SELECT button to confirm your selection. The display will show "0" confirming the material has been selected. If you select a material code without confirming the selection the instrument will automatically resume normal operation after a few seconds. Press the VEL button and the display will show the last saved sound velocity measurement.
-
Page 10: Determining The Sound Velocity For A Material With A Known Thickness
Sound Velocity Material (m/s) (inch/µs) Plexiglass 2692 0.106 Grey Cast 4600 0.180 Porcelain 5842 0.230 Glass (Quartz) 5570 0.220 Polystyrene 2337 0.092 2388 0.094 Quartz Glass 5639 0.222 Rubber, Vulcanized 2311 0.091 Teflon 1422 0.058 Water 1473 0.058 Press the arrows to adjust the sound velocity value by 10m/s. Press and hold the arrows to adjust the sound velocity value by 100m/s. -
Page 11: Measurement Methods
Measurement Methods There are three base measurement methods: Single measurement method: This method involves measuring the thickness at a single point. Double measurement method: This method involves performing two thickness measurements near a single spot rotating the ultrasonic sensor from 0 to 90° respectively, with respect to the split face (Fig.1).Take the smaller of the two indicated values as the thickness of the material. -
Page 12: Maintenance
Maintenance Cleaning the Test Piece After taking a measurement, clean the test pieces to prevent them from rusting. If the pieces are not being used for a long period of time coat them with oil to prevent rust. Protecting the Ultrasonic Sensor Be sure to clean the ultrasonic sensor and cable after each use. -
Page 13: Accessories And Replacement Parts
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 14: Product Disposal And Recycling
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 15 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! www.REEDINSTRUMENTS.com 1.800.561.8187 information@itm.com www. .com...
-
