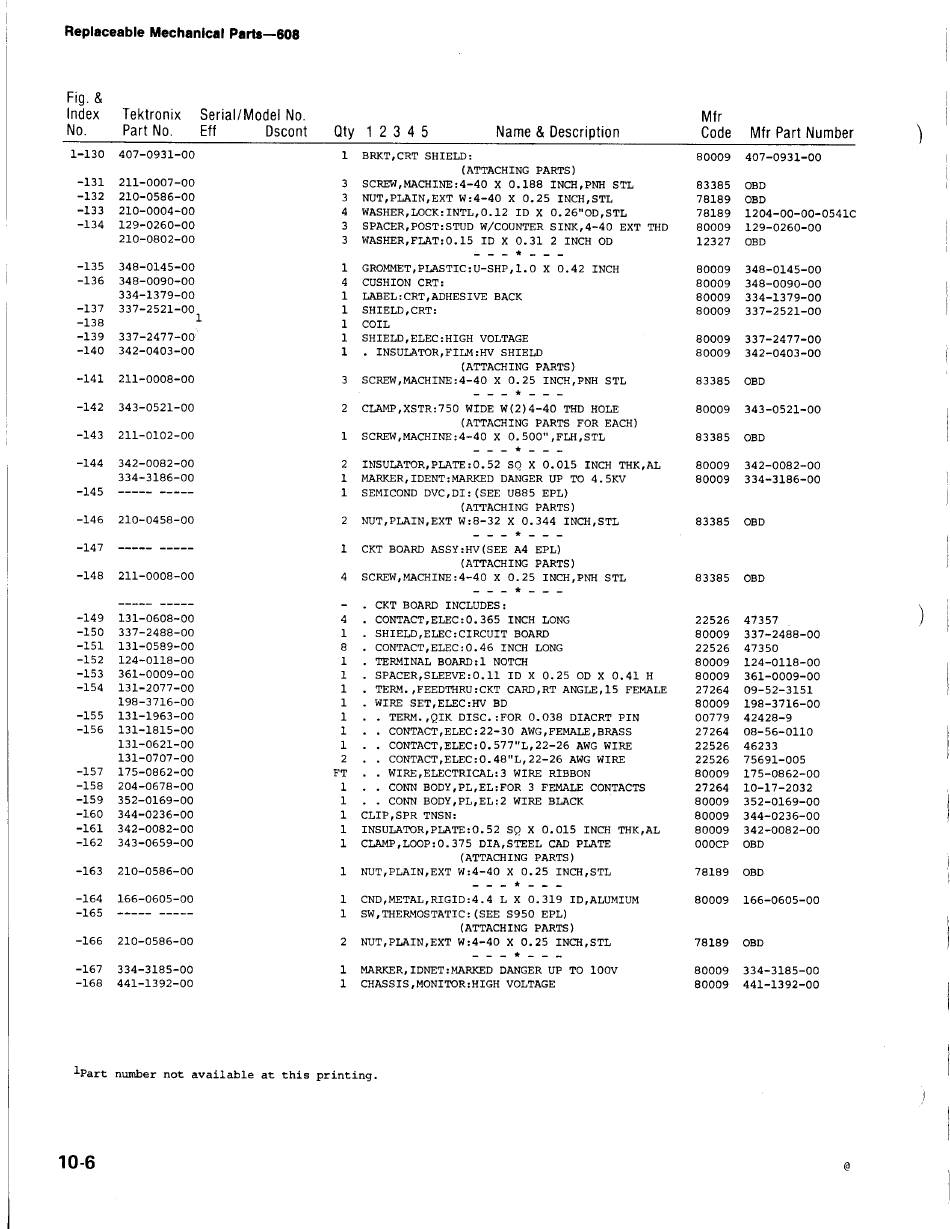

Tektronix 608 monitor Instruction Manual page 154

No. PartNo. Eff Dscont Qty 12345 Name & Description Code Mfr Part Number
-132 210-0586-00 3 NUT,PLAIN,EXT W:4=-40 X 0.25 INCH,STL 78189 OBD
-133 210-0004-00 4 WASHER,LOCK:INTL,O.12 ID X 0.26"0D,STL 78189 1204-00-00-0541¢C
-134 129-0260-00 3 SPACER,POST:STUD W/COUNTER SINK,4-40 EXT THD 80009 129-0260-00
210-0802-00 3 WASHER,PLAT:0.15 ID X 0.31 2 INCH OD 12327 OBD
ee
-135 348-0145-00 1 GROMMET,PLASTIC:U-SHP,1.0 X 0.42 INCH 80009 348-0145-00
334-1379-00 1 LABEL:CRT,ADHESIVE BACK 80009 334-1379-00
-137 337-2521-00 1 SHIELD,CRT: 80009 337-2521-00
-139 337-2477-00 1 SHIELD,ELEC:HIGH VOLTAGE 80009 337-2477-00
"140 342-0403-00 1. INSULATOR,FILM:HV SHIELD 80009 342-0403-00
(ATTACHING PARTS)
-141 211-0008-00 3 SCREW,MACHINE:4-40 X 0.25 INCH,PNH STL 83385 OBD
en
-142 343-0521-00 2 CLAMP,XSTR:750 WIDE W(2)4-40 THD HOLE 80009 343-0521-00
(ATTACHING PARTS FOR EACH)
-143 211-0102-00 1 SCREW,MACHINE:4-40 X 0.500",FLH,STL 83385 OBD
-144 342-0082-00 2 INSULATOR,PLATE:0.52 SO X 0.015 INCH THK,AL 80009 342-0082~-00
334-3186-00 1 MARKER, IDENT:MARKED DANGER UP TO 4.5KV 80009 334~-3186~00
-145 ----~ ----- 1 SEMICOND DVC,DI: (SEE U885 EPL)
(ATTACHING PARTS)
-146 210-0458-00 2 NUT,PLAIN,EXT W:8-32 X 0.344 INCH,STL 83385 OBD
|j-- = Fone =
"147 -+--- ----- 1 CKT BOARD ASSY:HV(SEE A4 EPL)
(ATTACHING PARTS)
-148 211-0008-00 4 SCREW,MACHINE:4-40 X 0.25 INCH,PNH STL 83385 OBD
ee
maeene -oo-- - . CKT BOARD INCLUDES:
-149 131-0608-00 4. CONTACT,ELEC:0.365 INCH LONG 22526 47357
-150 337~2488-00 1. SHIELD,ELEC:CIRCUIT BOARD 80009 337-2488-00
-151 131-0589-00 8 . CONTACT,ELEC:0.46 INCH LONG 22526 47350
-152 124~0118-00 1. TERMINAL BOARD:1 NOTCH 80009 124-0118-00
-153 361-0009-00 1. SPACER,SLEEVE:0.11 ID X 0.25 OD X 0.41 H 80009 361-0009-00
-154 131+2077-00 1 . TERM. ,FEEDTHRU:CKT CARD,RT ANGLE,15 FEMALE 27264 09-52-3151
198-3716-00 1 . WIRE SET,ELEC:HV BD 80009 198-3716-00
-155 131-1963-00 1. . TERM. ,QIK DISC.:FOR 0.038 DIACRT PIN 00779 42428-9
-156 131-1815-00 1. . CONTACT,ELEC:22-30 AWG,FEMALE,BRASS 27264 08-56-0110
131-0621-00 1 . CONTACT, ELEC:0.577"L,22-26 AWG WIRE 22526 46233
131-0707-00 2 . CONTACT, ELEC:0.48"L,22-26 AWG WIRE 22526 75691-005
~157 175-0862-00 FT . . WIRE,ELECTRICAL:3 WIRE RIBBON 80009 175-0862-00
-158 204-0678-00 1. . CONN BODY,PL,EL:FOR 3 FEMALE CONTACTS 27264 10-17-2032
-159 352-0169-00 1. . CONN BODY,PL,EL:2 WIRE BLACK 80009 352-0169-00
-160 344-0236-00 1 CLIP,SPR TNSN: 80009 344-0236-00
-161 342-0082-00 1 INSULATOR,PLATE:0.52 SQ X 0.015 INCH THK,AL 80009 342-0082-00
-162 343-0659-00 1 CLAMP,LOOP:0.375 DIA,STEEL CAD PLATE OOOCP OBD
(ATTACHING PARTS)
~163 210-0586-00 1 NUT,PLAIN,EXT W:4-40 X 0.25 INCH,STL 78189 OBD
-164 166-0605-00 1 CND,METAL,RIGID:4.4 L X 0.319 ID,ALUMIUM 80009 166-0605-00
"165 ----- ----- 1 SW, THERMOSTATIC: (SEE $950 EPL)
(ATTACHING PARTS)
-166 210-0586-00 2 NUT,PLAIN,EXT W:4-40 X 0.25 INCH,STL 78189 OBD
ee
-167 334-3185-00 1 MARKER, IDNET:MARKED DANGER UP TO 100V 80009 334-3185-00
-168 441-1392-00 1 CHASSIS,MONITOR:HIGH VOLTAGE 80009 441-1392-00
