Operating Instructions—608
@
THIS INSTRUMENT, IN WHOLE OF IN PART, X INPUT
SEAVERTON. OREEON S707 MOOR CAUTION DIRECT PATIENT MAX -(2)
FOR CONTINUED PROTECTION ELECTRIC SHOCK HAZARD
INPUT
+ 25V
me)
TO CHANGE LINE VOLTAGE
REFER TO MANUAL
AT 60Hz LINE FUSE
120V: 0.84 SLOW BLOW
240V: 0.4A SLOW BLOW
Nett
VOLTS
PRIMARY TAPS SET FOR
®
(1) TRACE ROTATION—Adjustment to align the trace with the horizontal axis.
+X INPUT—BNC input connector to allow application of input signals. A positive signal applied
deflects beam to the right; a negative signal deflects beam to the left.
+¥ INPUT—BNC input connector. A positive signal applied deflects beam up; a negative signal
deflects beam down.
+Z INPUT—BNC input connector. A positive signal! applied provides a linear function to increase crt
brightness; a negative signal decreases crt brightness.
LINE FUSE—120 V: 0.8 A SLOW; 220 V: 0.4 A SLOW. (Line fuse is internal for Option 6
instruments.)*
* Refer qualified service personnel to the servicing information sections of the 608 Instruction Manual! for further

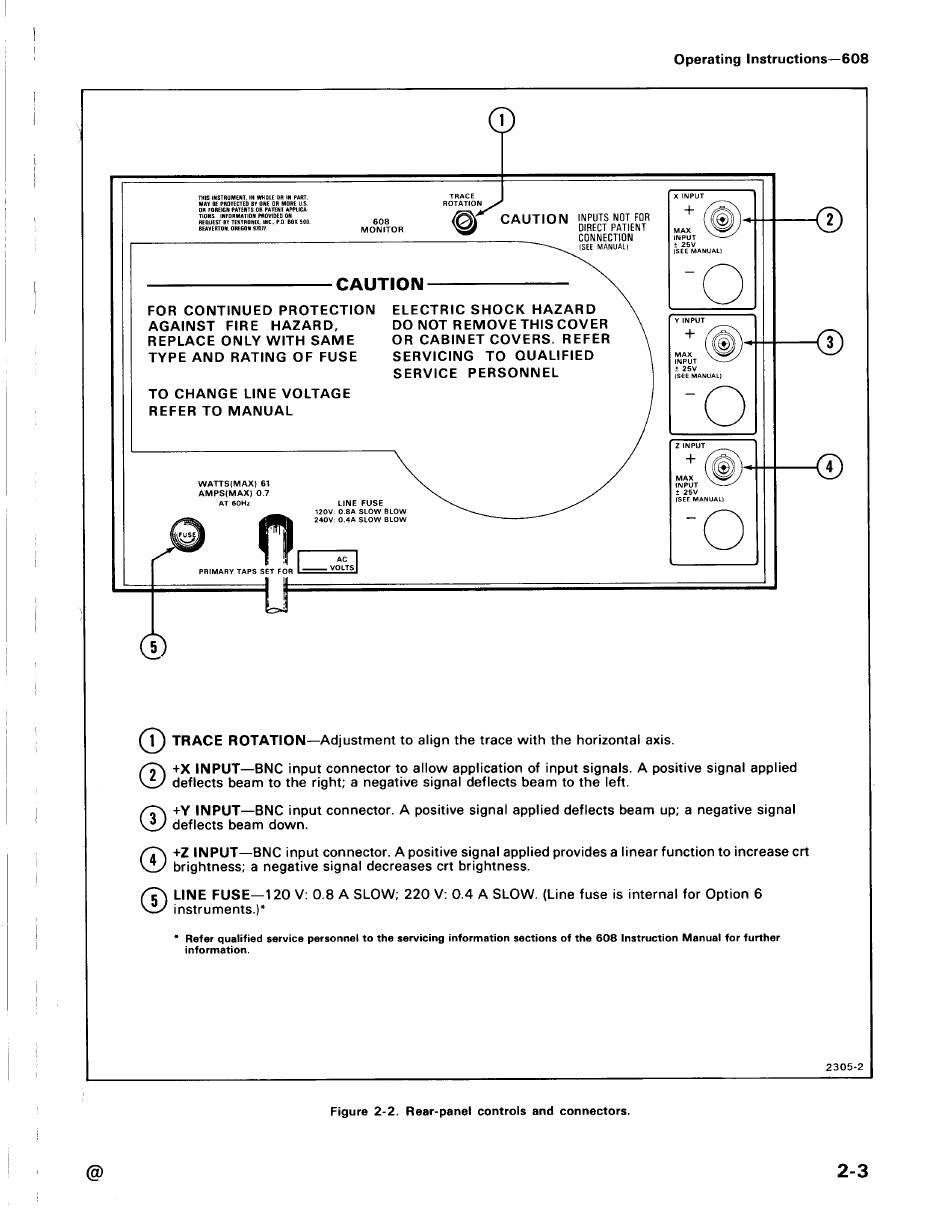

Figure 2-2. Rear-panet controls and connectors.
