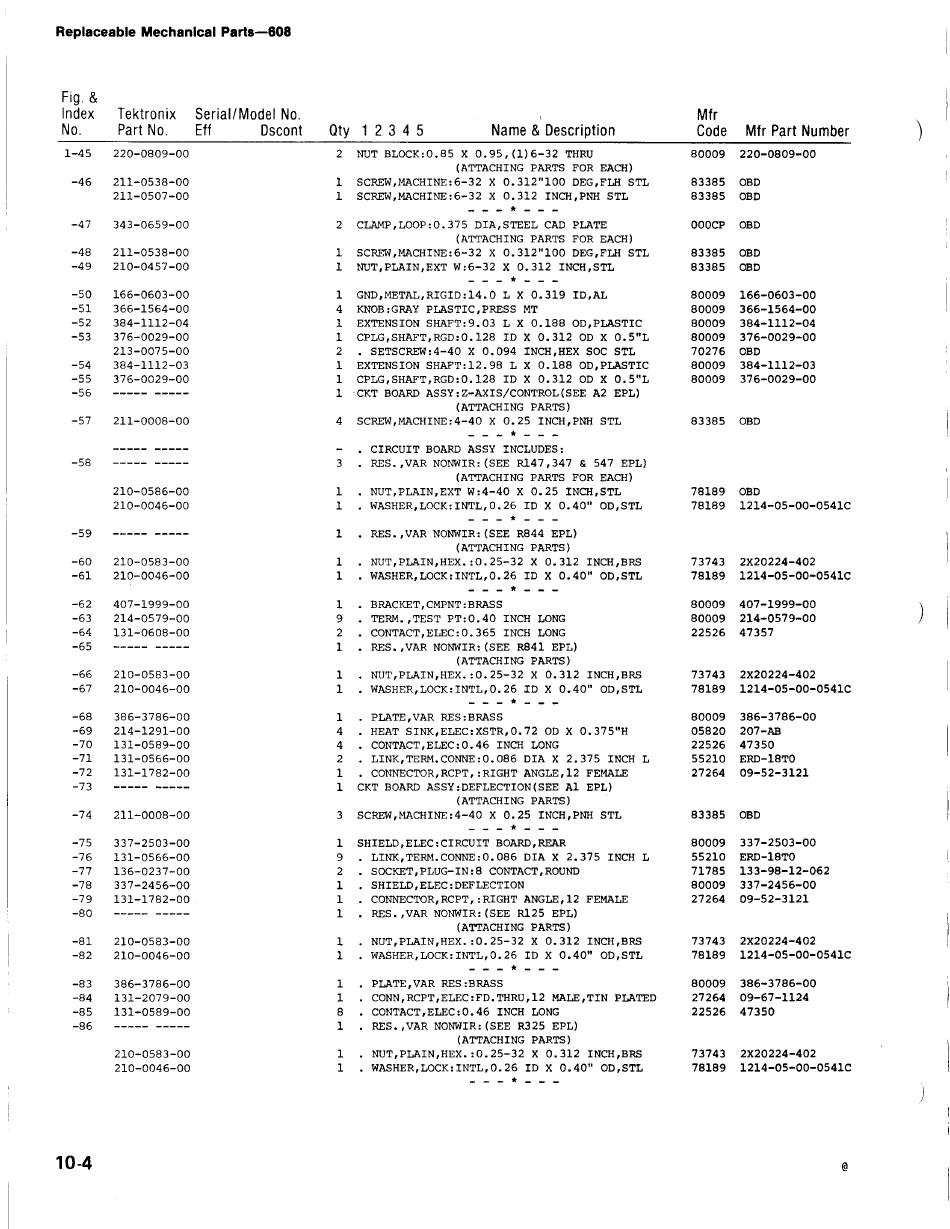

Tektronix 608 monitor Instruction Manual page 152

Replaceable Mechanical Parts—608
Index Tektronix Serial/Model No. : Mfr
No. Part No. Eff Dscont Qty 12345 Name & Description Code Mfr Part Number
1-45 220-0809-00 2 NUT BLOCK:0.85 X 0.95,(1)6-32 THRU 80009 220-0809-00
(ATTACHING PARTS FOR EACH)
-46 211-0538-00 1 SCREW,MACHINE:6-32 X 0.312"100 DEG,FLH STL 83385 OBD
211-0507-00 1 SCREW,MACHINE:6-32 X 0.312 INCH,PNH STL 83385 OBD
~~ = Fee
-47 343-0659-00 2 CLAMP,LOOP:0.375 DIA,STEEL CAD PLATE OO0CP OBD
(ATTACHING PARTS FOR EACH)
-48 211-0538-00 1 SCREW,MACHINE:6-32 X 0.312"100 DEG,FLH STL 83385 OBD
-49 = 210-0457-00 1 NUT,PLAIN,EXT W:6-32 X 0.312 INCH,STL 83385 OBD
re ed
-50 166-0603-00 1 GND,METAL,RIGID:14.0 L X 0.319 ID,AL 80009 166-0603-00
-51 366-1564~-00 4 KNOB:GRAY PLASTIC,PRESS MT 80009 366-1564-00
-52 384-1112-04 1 EXTENSION SHAFT:9.03 L X 0.188 OD,PLASTIC 80009 384-1112-04
-53 376-0029-00 1 CPLG,SHAFT,RGD:0.128 ID X 0.312 OD X 0.5"L 80009 376-0029-00
213-0075-00 2 . SETSCREW:4~40 X 0.094 INCH,HEX SOC STL 70276 OBD
-54 384-1112-03 1 EXTENSION SHAFT:12.98 L X 0.188 OD,PLASTIC 80009 384-1112-03
-55 376-0029-00 1 CPLG,SHAFT,RGD:0.128 ID X 0.312 OD X 0.5"L 80009 376-0029-00
"56 ----- ----- 1 -CKT BOARD ASSY:Z-AXIS/CONTROL(SEE A2 EPL)
(ATTACHING PARTS)
-57 211-0008-00 4 SCREW,MACHINE:4-40 X 0.25 INCH,PNH STL 83385 OBD
=e we Few e
moon ----- ~ . CIRCUIT BOARD ASSY INCLUDES:
-58 0 -we-- =o == 3. RES.,VAR NONWIR: (SEE R147,347 & 547 EPL)
(ATTACHING PARTS FOR EACH)
210-0586-00 1 . NUT,PLAIN,EXT W:4-40 X 0.25 INCH,STL 78189 OBD
210-0046-00 1 . WASHER,LOCK:INTL,O.26 ID X 0.40" OD,STL 78189 1214-05-00-0541Cc
|=_ =- = *& 2. oe =
-59 9 ----- ----- 1 . RES.,VAR NONWIR: (SEE R844 EPL)
(ATTACHING PARTS)
-60 210-0583-00 1. NUT,PLAIN,HEX.:0.25-32 X 0.312 INCH,BRS 73743 2X20224-402
-61 210-0046-00 1 . WASHER, LOCK: INTL,O.26 ID X 0.40" OD,STL 78189 1214-05-00-0541c
= =f = * om
-62 407-1999-00 1. BRACKET, CMPNT: BRASS 80009 407-1999-00
-63 214-0579-00 9 . TERM.,TEST PT:0.40 INCH LONG 80009 214-0579-00
-64 131-0608-00 2 . CONTACT,ELEC:0.365 INCH LONG 22526 47357
Oo 1. RES.,VAR NONWIR: (SEE R841 EPL)
(ATTACHING PARTS)
-66 210-0583-00 1 =. NUT,PLAIN,HEX.:0.25-32 X 0.312 INCH,BRS 73743 2X20224-402
-67 210-0046-00 1 =. WASHER,LOCK:INTL,O.26 ID X 0.40" OD,STL 78189 1214-05-00-0541Cc
-68 386-3786-00 1. PLATE,VAR RES:BRASS 80009 386-3786-00
69 214-1291-00 4 . HEAT SINK,ELEC:XSTR,0.72 OD X 0.375"H 05820 207-AB
-70 131-0589-00 4 . CONTACT,ELEC:0.46 INCH LONG 22526 47350
-71 131-0566-00 2 . LINK, TERM.CONNE:0.086 DIA X 2.375 INCH L 55210 ERD-18T0
-72 131-1782-00 1. CONNECTOR, RCPT,:RIGHT ANGLE,12 FEMALE 27264 09-52-3121
-7300 weeee ~---- 1 CKT BOARD ASSY:DEFLECTION(SEE Al EPL)
(ATTACHING PARTS)
-74 211-0008-00 3 SCREW,MACHINE:4-40 X 0.25 INCH,PNH STL 83385 OBD
a
-75 337-2503-00 1 SHIELD,ELEC:CIRCUIT BOARD, REAR 80009 337-2503-00
-76 131-0566-00 9 . LINK, TERM.CONNE:0.086 DIA X 2.375 INCH L 55210 ERD-18T0O
-77 —-136=0237-00 2 . SOCKET,PLUG-IN:8 CONTACT, ROUND 71785 133-98-12~062
-78 337-2456-00 1. SHIELD,ELEC:DEFLECTION 80009 337-2456-00
-79 131-1782-00 1. CONNECTOR, RCPT,:RIGHT ANGLE,12 FEMALE 27264 09-52-3121
"80 9 see - ----- 1 . RES.,VAR NONWIR: (SEE R125 EPL)
(ATTACHING PARTS)
-81 210-0583-00 1 =. NUT,PLAIN,HEX.:0.25-32 X 0.312 INCH,BRS 73743 2X20224-402
-82 210-0046-00 1 . WASHER, LOCK: INTL,O.26 ID X 0.40" OD,STL 78189 1214-05-00-0541c
-83 386-3786-00 1. PLATE,VAR RES:BRASS 80009 386-3786-00
-84 131-2079-00 1 . CONN,RCPT,ELEC:FD.THRU,12 MALE,TIN PLATED 27264 09-67-1124
~85 131-0589-00 8 . CONTACT,ELEC:0.46 INCH LONG 22526 47350
"B86 -ee-- ----- 1. RES.,VAR NONWIR: (SEE R325 EPL)
(ATTACHING PARTS)
210-0583-00 1. NUT,PLAIN,HEX.:0.25-32 X 0.312 INCH,BRS 73743 2X20224-402
210-0046-00 1 . WASHER,LOCK:INTL,0O.26 ID X 0.40" OD,STL 78189 1214-05-00-0541Cc
