Tektronix 608 monitor Instruction Manual page 23

Monitor with options
Hide thumbs Also See for 608 monitor:

Advertisement

LINE FUSE
HOLDER ON
REAR PANEL
ALTERNATE
@ we) &
ooooody)
OPERATION SHOWN)
Line-Voltage
Regulating Range and Fuse Data
Position
120 Volts (Nominal)
220 Volts (Nominal)
LO
90 V ac to 110 V ac
180 V ac to 220 V ac
MED
99 V ac to 121 V ac
198 V ac to 242 V ac
HI
108 V ac to 132 V ac
216 V ac to 250 V ac
Line
Fuse
0.8 A slow-blowing type
0.4 A slow-blowing type
Data

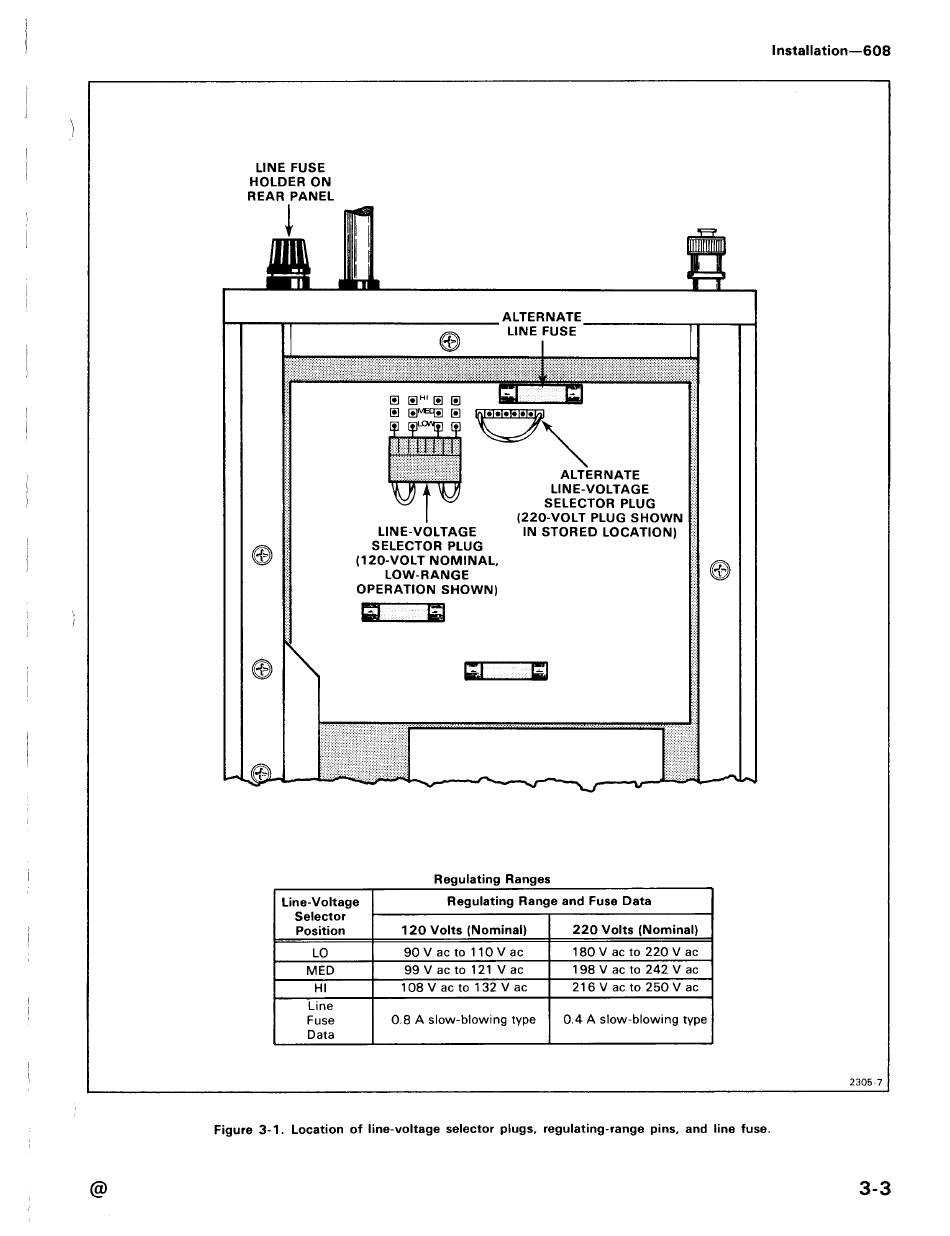

regulating-range pins, and line fuse.
