Tektronix 608 monitor Instruction Manual page 103

A S S E M B L Y A 4
Assembly or Partial Board
A Cc |=] E F G a | rf |
a]
3
a
5
| | | | 2305-18

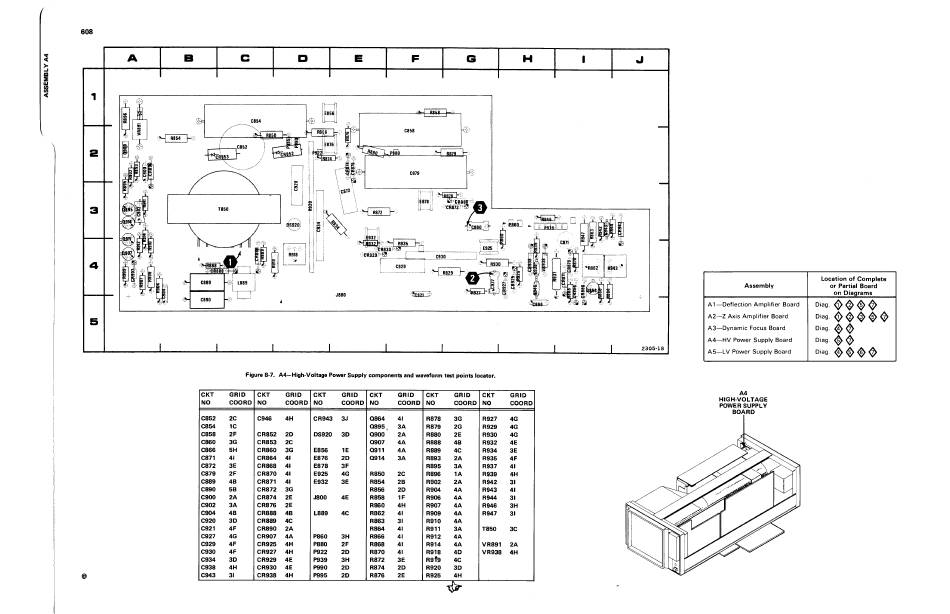

Figure 8-7. A4—High-Voltage Power Supply components and waveform test points locator.
CKT GRID CKT GRID CKT GRID CKT GRID CKT GRID CKT GRID
NO COORD | NO COORD | NO COORD | NO COORD | NO COORD | NO COORD
C852 2c C946 4H CR943 «3J Q864 4i R878 3G R927 4G
C854 1c Q895, 3A R879 2G R929 4G
cs58 2F CR852 2D DS920 3D aQ900 2A R880 2E R930 4G
C860 3G CR853 2C Q907 4A R888 4B R932 4E
C866 5H CR860 3G E856 1E Q911 4A R889 4c R934 3E
C871 4i CR864 4I E876 2D a914 3A R893 2A R935 4F
C872 3E crees 4! E878 3F R895 3A R937 4l
c879 2F CR870 4Il E925 4G R850 2c R896 1A R939 4H
c8ss9 4B CR871 4I E932 3E R854 2B R902 2A R942 3l
cs90 5B CR872 3G R856 2D R904 4A R943 4l
c900 2A CR874 2E J800 4E R858 1F R906 4A R944 31
c902 3A CR876 2E R860 4H R907 4A R946 3H
c904 4B CR888 4B L889 4c R862 4 R909 4A R947 3!
c920 3D CR889 4C R863 3! R910 4A
/C921 4F CR890 2A R864 4l R911 3A T850 3c
C927 4G CR907 4A P860 3H R866 4l R912 4A
c929 4F CR925 4H P880 2F R868 4t R914 4A VR891 2A
C930 4F CR927 14H P922 2D R870 4l R918 4D VR938 4H
C934 3D CR929 4E P939 3H R872 3E Rofo 4c
C938 4H CR930 4E P990 2D R874 2D R920 3D
@ C943 3l CR938 4H P995 2D R876 2E R925 4H
ur
A1i—Deflection Amplifier Board
A2—-Z Axis Amplifier Board
A3—Dynamic Focus Board
A4—HV Power Supply Board
A5—LV Power Supply Board
A4
HIGH-VOLTAGE
BOARD
