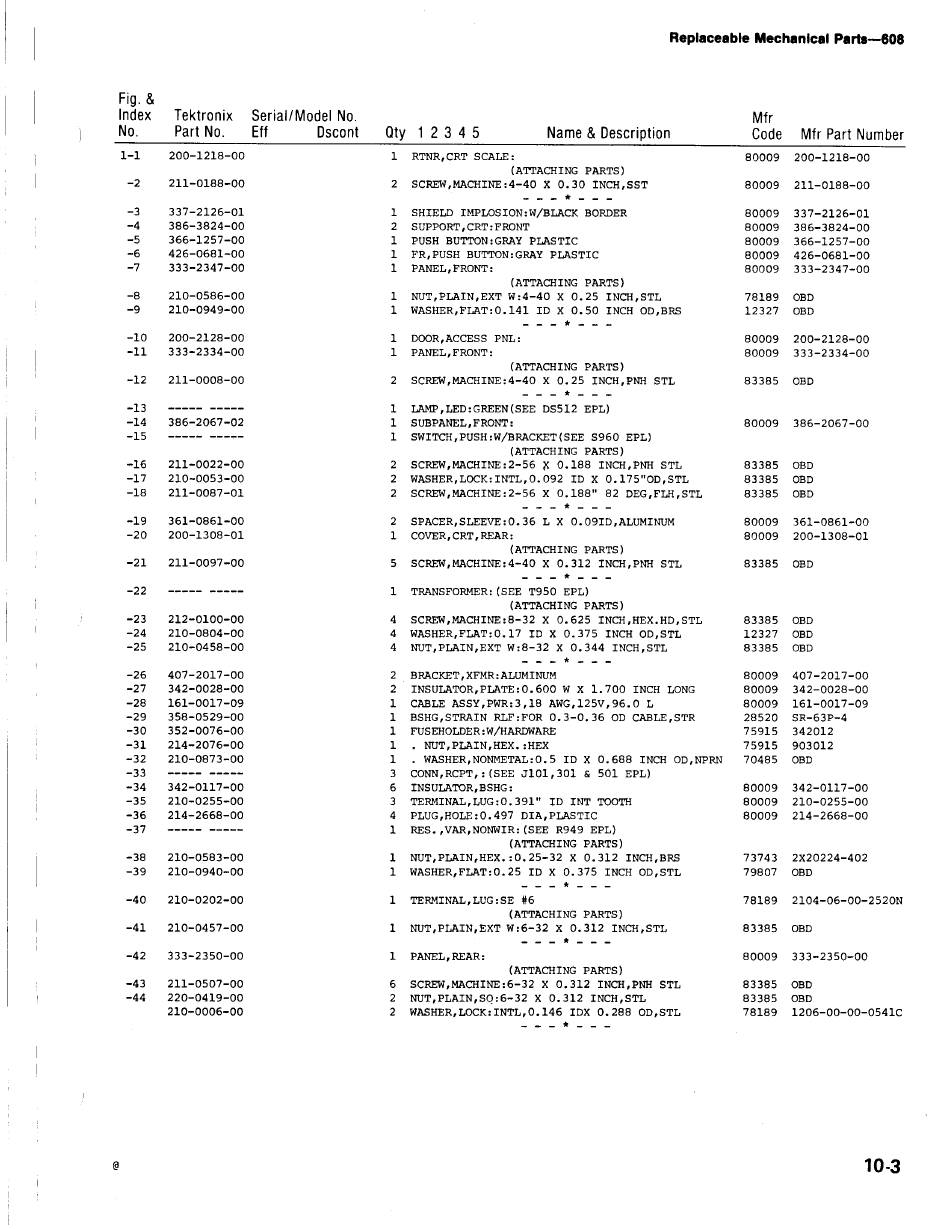

Tektronix 608 monitor Instruction Manual page 151

Index Tektronix Seriai/Model No. Mfr
No. PartNo. Eff Dscont Qty 12345 Name & Description Code Mfr Part Number
1-1 200-1218-00 1 RTNR,CRT SCALE: 80009 200-1218-00
(ATTACHING PARTS)
-2 211-0188-00 2 SCREW,MACHINE:4-40 X 0.30 INCH,SST 80009 211-0188-00
a
-3 337-2126-01 1 SHIELD IMPLOSION:W/BLACK BORDER 80009 337-2126-01
-4 386-3824-00 2 SUPPORT, CRT:FRONT 80009 386-3824-00
-5 366-1257-00 1 PUSH BUTTON:GRAY PLASTIC 80009 366-1257-00
-6 426-0681-00 1 ¥FR,PUSH BUTTON:GRAY PLASTIC 80009 426-0681-00
-7 333-2347-00 1 PANEL, FRONT: 80009 333-2347-00
-8 210-0586-00 1 NUT,PLAIN, EXT W:4-40 X 0.25 INCH,STL 78189 OBD
~9 210-0949-00 1 WASHER,FLAT:0.141 ID X 0.50 INCH OD,BRS 12327 OBD
]|_ = = Few we
-10 200-2128-00 1 DOOR,ACCESS PNL: 80009 200-2128-00
-11 333-2334-00 1 PANEL,FRONT: 80009 333-2334-00
(ATTACHING PARTS)
-12 211-0008-00 2 SCREW,MACHINE:4-40 X 0.25 INCH,PNH STL 83385 OBD
"1300 ----- ----- 1 LAMP,LED:GREEN(SEE DS512 EPL)
-14 386-2067-02 1 SUBPANEL,FRONT: 80009 386-2067-00
-15 0 ----- ----- 1 SWITCH,PUSH:W/BRACKET(SEE S960 EPL)
(ATTACHING PARTS)
-16 211-0022-00 2 SCREW,MACHINE:2-56 X 0.188 INCH,PNH STL 83385 OBD
-17 210~0053-00 2 WASHER,LOCK:INTL,O.092 ID X 0.175"0D,STL 83385 OBD
-18 211-0087-01 2 SCREW,MACHINE:2-56 X 0.188" 82 DEG,FLH,STL 83385 OBD
a
-19 361-0861-00 2 SPACER,SLEEVE:0.36 L X 0.09ID,ALUMINUM 80009 361-0861-00
-20 200-1308-01 1 COVER,CRT,REAR: 80009 200-1308-01
-21 211-0097-00 5 SCREW,MACHINE:4~40 X 0.312 INCH,PNH STL 83385 OBD
a
2200 ween anne 1 TRANSFORMER: (SEE T950 EPL)
(ATTACHING PARTS)
-23 212+0100-00 4 SCREW,MACHINE:8-32 X 0.625 INCH,HEX.HD,STL 83385 OBD
-24 210-0804-00 4 WASHER,FLAT:0.17 ID X 0.375 INCH OD,STL 12327 OBD
-25 210-0458-00 4 NUT,PLAIN,EXT W:8-32 X 0.344 INCH,STL 83385 OBD
a
-26 407-2017-00 2 BRACKET, XFMR: ALUMINUM 80009 407-2017-00
~27 342-0028-00 2 INSULATOR, PLATE:0.600 W X 1.700 INCH LONG 80009 342-0028-00
-28 161-0017-09 1 CABLE ASSY,PWR:3,18 AWG,125V,96.0 L 80009 161-0017-09
-29 358-0529-00 1 BSHG,STRAIN RLF:FOR 0.3-0.36 OD CABLE,STR 28520 SR-63P-4
-30 352-0076-00 1 FUSEHOLDER:W/HARDWARE 75915 342012
-31 214-2076-00 1. NUT,PLAIN,HEX. :HEX 75915 903012
~32 210-0873-00 1 . WASHER,NONMETAL:0.5 ID X 0.688 INCH OD,NPRN 70485 OBD
3300 were comme 3 CONN,RCPT,:(SEE J101,301 & 501 EPL)
+~34 342-0117-00 6 INSULATOR,BSHG: 80009 342-0117-00
-35 210-0255-00 3. TERMINAL, LUG:0.391" ID INT TOOTH 80009 210-0255-00
-36 214-2668-00 4 PLUG,HOLE:0.497 DIA,PLASTIC 80009 214-2668-00
"3700 ween oe 1 RES.,VAR,NONWIR: (SEE R949 EPL)
(ATTACHING PARTS)
-38 210-0583-00 1 NUT,PLAIN, HEX. :0.25-32 X 0.312 INCH,BRS 73743 2x%20224-402
-39 210-0940~-00 1 WASHER,FLAT:0.25 ID X 0.375 INCH OD,STL 79807 OBD
a,
-40 210-0202-00 1 TERMINAL,LUG:SE #6 78189 2104-06-00-2520N
(ATTACHING PARTS)
~41 210-0457-00 1 NUT,PLAIN, EXT W:6-32 X 0.312 INCH,STL 83385 OBD
-42 333-2350-00 1 PANEL, REAR: 80009 333-2350-00
(ATTACHING PARTS)
-43 211-0507-00 6 SCREW,MACHINE:6-32 X 0.312 INCH,PNH STL 83385 OBD
-44 220-0419-00 2 NUT,PLAIN,SO:6-32 X 0.312 INCH,STL 83385 OBD
210-0006-00 2 WASHER, LOCK: INTL,0.146 IDX 0.288 OD,STL 78189 1206-00-00-0541C
ee,
@ 10-3
