Wallenstein WE235 Operator's Manual

Hide thumbs Also See for WE235:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL
Serial number 1103843 and up
WE 235
Log Splitter
Revision: Dec-2024
Document number: Z97112_En

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WE235 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wallenstein WE235

Summary of Contents for Wallenstein WE235

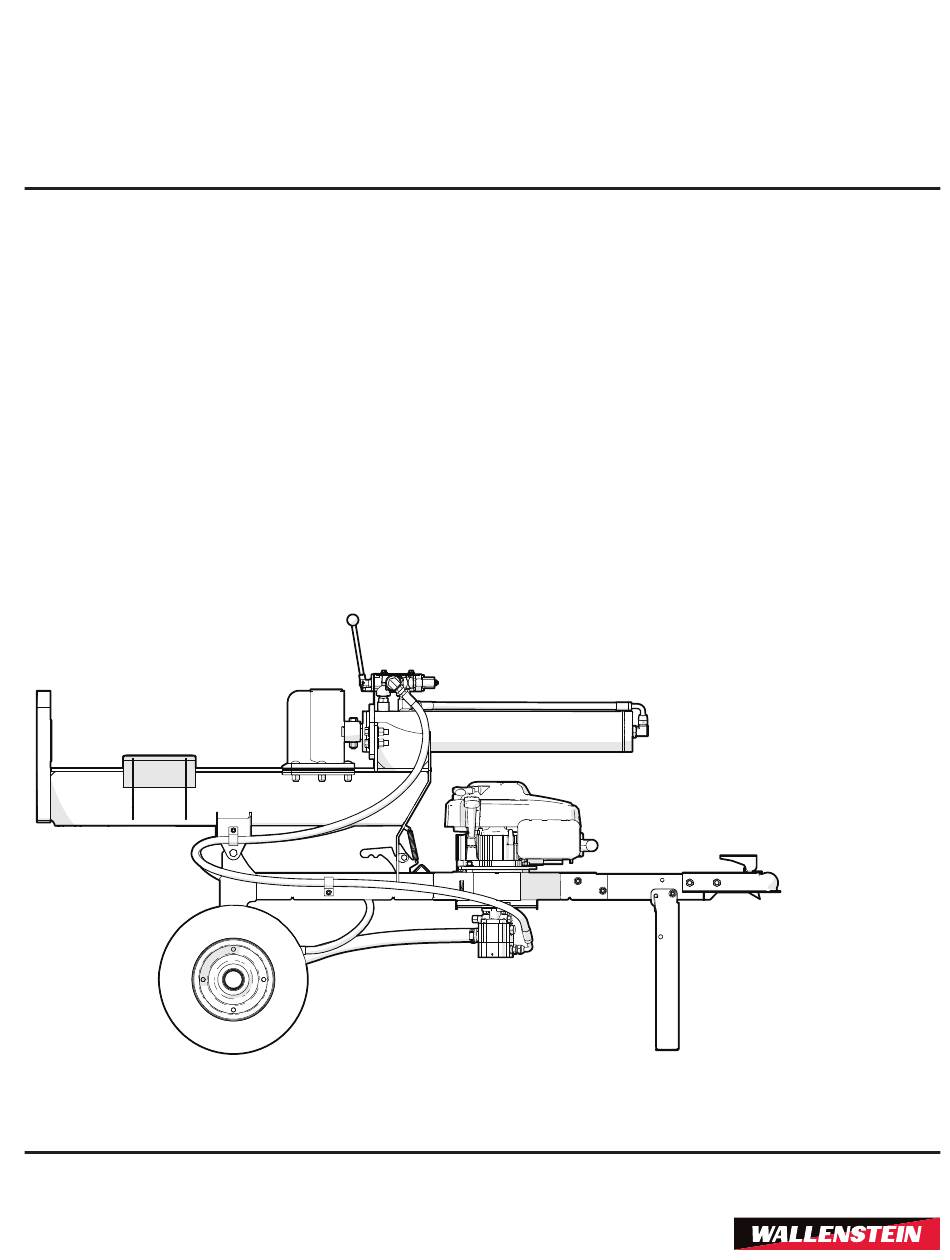

  • Page 1 OPERATOR'S MANUAL Serial number 1103843 and up WE 235 Log Splitter Revision: Dec-2024 Document number: Z97112_En...

  • Page 2: Table Of Contents

    WE235 Log Splitter Table of Contents 1. Introduction ............3 7. Transport ............34 1.1 Delivery Inspection Report ........4 7.1 Transport Safety ............. 34 1.2 Serial Number Location ..........5 7.2 Prepare the Machine for Transport ......34 1.3 Types of Labels on the Machine ........ 6 7.3 Ball-mount Hitch .............

  • Page 3: Introduction

    Keep this manual with the machine at all times and available for frequent reference. W034 Congratulations on your choice of a Wallenstein WE235 Log Splitter! This high-quality machine is designed and manufactured to meet the needs of homeowners or small businesses.

  • Page 4: Delivery Inspection Report

    Log Splitter 1.1 Delivery Inspection Report Wallenstein WE235 Log Splitter To register your product and start the warranty, go to WallensteinEquipment.com. This form must be completed by the dealer at the time of delivery, and then signed by the dealer and customer.

  • Page 5: Serial Number Location

    WE235 Introduction Log Splitter 1.2 Serial Number Location Always provide the model and serial number of your Wallenstein product when you order parts, or request service or other information. The product information plate location is shown in the following illustration.

  • Page 6: Types Of Labels On The Machine

    This type of label gives the operator information or shows the operation of There are different types of labels on your Wallenstein product. a control. The labels are for safety, information, and product identification.

  • Page 7: Safety

    • Accidents are preventable. You are responsible for the safe operation and maintenance of your Wallenstein Equipment product. You must make sure that you and anyone who uses, maintains, or works around the machine is familiar with the operation and maintenance procedures and related safety information in this manual.

  • Page 8: Safety Rules

    • Protective glasses, goggles, or a face shield. W016 • Long exposure to loud noise can Wallenstein Equipment puts considerable effort into designing cause permanent hearing loss. Power products that are safe to use; however, it is the responsibility of equipment, with or without a vehicle the operator to use the equipment safely.

  • Page 9: Equipment Safety Guidelines

    WE235 Safety Log Splitter 2.5 Equipment Safety Guidelines 2.7 Safe Condition Safety is one of the primary concerns in equipment design and References are made to safe condition throughout this manual. development. However, every year there are accidents that can Safe condition means that you put the machine in a state that be prevented.

  • Page 10: Training Record

    WE235 Safety Log Splitter 2.8 Training Record The design and manufacture of this product conforms to the applicable provisions in the following standards: Everyone who uses this machine must read and fully understand • ANSI/OPEI B71.7:2018 Powered Consumer Ram-Type Log all safety and operation information in this manual.

  • Page 11: Work Site

    WE235 Safety Log Splitter 2.9 Work Site 2.9.2 Create a Safe Work Area Read and obey the instructions for safe operation of the CAUTION! machine. Keep bystanders and workers safe from hazards. Obey the The operator must be fully familiar with the work following important guidelines: site before starting work.
  • Page 12 WE235 Safety Log Splitter 1. Safe zone 2. Work zone 10 ft (3 m) 10 ft (3 m) 10 ft (3 m) 10 ft (3 m) 02843 Figure 2 – Example of a safe work area...

  • Page 13: Safety Labels

    Replace all safety labels that are missing, have become illegible. Replacement safety labels are damaged, or illegible. If a component is replaced available from your local Wallenstein dealer or go to and it has a safety label on it, apply a safety WallensteinEquipment.com.

  • Page 14: Safety Label Locations

    WE235 Safety Labels Log Splitter 3.2 Safety Label Locations Numbers correspond with the Safety Label Definitions on page 15. 02844 Figure 3 – Safety label locations...

  • Page 15: Safety Label Definitions

    WE235 Safety Labels Log Splitter 3.3 Safety Label Definitions 4. Warning! Crush, pinch, cut, or sever hazard 1. Warning! Hands or fingers can be crushed, High-pressure injection hazard pinched, cut, or severed in this area. Injection of pressurized hydraulic fluid...
  • Page 16 WE235 Safety Labels Log Splitter 7. Warning! Risk of cancer and reproductive harm The machine materials contain chemicals or machine operation can produce gases or dust that are identified by the state of California as causes of cancer, birth defects, or other reproductive harm.

  • Page 17: Familiarization

    WE235 Familiarization Log Splitter 4. Familiarization Wallenstein WE235 log splitters are designed to split logs into 4.3 Operator Orientation firewood. When a log is put onto the split bed, the operator extends the IMPORTANT! When controls are described throughout this wedge to split the log.

  • Page 18: Machine Components

    WE235 Familiarization Log Splitter 4.4 Machine Components Know the machine components before you operate, service, or maintain the machine. 02846 Figure 5 – Machine components 1. Stop-block 8. Document storage tube 15. Frame 2. Split bed 9. Engine switch 16. Split-bed latch 3.

  • Page 19: Controls

    WE235 Controls Log Splitter 5. Controls WARNING! Do not operate the machine until you know the location of all the controls and how to use them correctly. WARNING! Before you start the engine, read and understand the safety and operating information under Engine Operation on page 24.

  • Page 20: Engine Controls

    WE235 Controls Log Splitter 5.2 Engine Controls IMPORTANT! For complete information about the engine controls, see the engine manufacturer's manual. 5.2.1 Engine Switch The engine switch has the following functions: Standby Push the top of the switch to set the engine to standby.

  • Page 21: Split-Bed Latch

    WE235 Controls Log Splitter 5.3 Split-bed Latch The split-bed latch holds the split bed in the horizontal position. The split-bed latch has two conditions: Engaged The latch is engaged with the latch plate. When the latch is Engaged, you cannot move the split-bed.

  • Page 22: Operating Instructions

    WE235 Operating Instructions Log Splitter 6. Operating Instructions The operator must be familiar with and obey the operating • Read and understand this manual before you start the and safety procedures. machine. Review all safety information annually. • Park the machine in a clear location on dry, level ground.

  • Page 23: Pre-Start Checklist

    WE235 Operating Instructions Log Splitter 6.2 Pre-start Checklist 6.3 Machine Break-in Do the following before you start the machine the first time and Before and during the first eight hours of operation, do the each time after that. following tasks.

  • Page 24: Engine Operation

    WE235 Operating Instructions Log Splitter 6.4 Engine Operation IMPORTANT! In some regions, when an engine is used on any forest covered, brush covered, or grass covered CAUTION! unimproved land it is necessary by law to have a spark arrestor installed on the muffler. A spark arrestor traps Before you start the engine, read the safety, exhaust particles that are expelled from the engine.

  • Page 25: Fuel Safety

    WE235 Operating Instructions Log Splitter 6.4.2 Fuel Safety 5. Check the fuel level. The fuel tank is full when the fuel level is visible 1/2 inch (12 mm) below the filler neck. There must be room for fuel expansion. WARNING! 6.

  • Page 26: Check The Engine Oil Level

    WE235 Operating Instructions Log Splitter 6.4.5 Check the Engine Oil Level 6.4.6 Add Oil to the Engine IMPORTANT! For more information about engine oil, see IMPORTANT! For more information about engine oil, see the engine manufacturer's manual and Engine Oil on page...

  • Page 27: Hydraulic System Operation

    WE235 Operating Instructions Log Splitter 6.5 Hydraulic System Operation • High-pressure hydraulic fluid leaks: • Do not use your hand to check A hydraulic system is a closed-loop system that provides for hydraulic fluid leaks. Injection pressurized hydraulic fluid to the splitter control.

  • Page 28: Set Up The Machine

    WE235 Operating Instructions Log Splitter 6.6 Set Up the Machine 1. Do the tasks in the Pre-start Checklist on page 23. 2. Select a work site and set up a safe work area. For more information, see Work Site on page 11.

  • Page 29: Start The Machine

    The procedures in this section only apply to an emergency situation IMPORTANT! If the engine does not start after repeated tries, contact your local Wallenstein dealer or go to In an emergency: BriggsandStratton.com. 1. Push the engine switch to the STOP position.

  • Page 30: Change The Split Bed Position

    WE235 Operating Instructions Log Splitter 6.10 Change the Split Bed Position 6.10.2 Move the Split Bed to the Horizontal Position For more information about the split-bed latch, see Split-bed This procedure tells you how to move the split bed to the Latch on page 21.

  • Page 31: Operate The Log Splitter

    WE235 Operating Instructions Log Splitter 6.11 Operate the Log Splitter WARNING! Put on the personal protective equipment (PPE) that is necessary to do the work safely. This includes, but is not limited to, hearing protection, heavy gloves, a face shield, and protective footwear.
  • Page 32 WE235 Operating Instructions Log Splitter 6.11.2 Split a Log in the Horizontal Position 6.11.3 Split a Log in the Vertical Position IMPORTANT! Release the splitter control immediately when IMPORTANT! Release the splitter control immediately when the wedge gets to the fully extended position. If you hold the wedge gets to the fully extended position.
  • Page 33 WE235 Operating Instructions Log Splitter 6.11.4 Remove a Blockage WARNING! Put the machine in a safe condition before you remove a blockage. Do not reach into the machine when it is not in a safe condition. When the machine is not in a safe condition, there are impact, crush, and sever hazards that can cause serious injury or death.

  • Page 34: Transport

    For instructions, see Ball-mount Hitch on page 34. Make sure that the jack stand is lifted. WE235 models are not intended for use or transport on public roadways. Therefore, the machine does not include the necessary lights, reflectors, and markings. Also, the engine does not have a fuel shutoff valve.

  • Page 35: Jack Stand

    WE235 Transport Log Splitter 7.3.1 Connect to a Ball-mount Hitch 7.4 Jack Stand Make sure that there is space and clearance to safely reverse the tow vehicle to the machine. CAUTION! 1. Reverse the tow vehicle to the machine. Stop approximately Do not pull the pin out of a jack stand when there 1 ft (30 cm) away from the hitch coupler.
  • Page 36 WE235 Transport Log Splitter 7.4.2 Lift the Jack Stand 1. Support the machine to remove all weight from the jack stand. Attach the machine to a tow vehicle or support the front of the machine with blocks. 2. Remove the snap-lock pin from the jack stand and trailer tongue.

  • Page 37: Storage

    WE235 Storage Log Splitter 8. Storage At the end of the season or when the machine is not going to be 9. If the machine must be on soft ground, put boards or plates used for an extended period of time, store the machine correctly under the jack stand to increase the surface area.

  • Page 38: Service And Maintenance

    WE235 Service and Maintenance Log Splitter 9. Service and Maintenance Regular preventive maintenance can improve performance and SAFE CONDITION prolong the service life of the machine. Machine maintenance is your responsibility. 1. If the machine is attached to a tow vehicle, set the tow-vehicle parking brake, stop the engine, and remove the key from the ignition.

  • Page 39: Fluids And Lubricants

    WE235 Service and Maintenance Log Splitter 9.2.3 Engine Fuel • When replacement parts are necessary, use genuine factory replacement parts to restore your machine to For complete fuel information and use at high altitudes, see the original specifications. The manufacturer cannot be the engine manufacturer's manual.

  • Page 40: Maintenance Schedule

    WE235 Service and Maintenance Log Splitter 9.3 Maintenance Schedule Annually Reference Replace the engine spark plug. See the engine IMPORTANT! For more information, see the engine manual. manufacturer's manual. Service the engine fuel system. See the engine The engine includes Briggs & Stratton Just Check & Add™...

  • Page 41: Grease Points

    WE235 Service and Maintenance Log Splitter 9.4 Grease Points Lubricate the machine at the recommended intervals. Hinge and pivot points can rust and become difficult to move without the correct maintenance. For rust-protection oil specifications, see Rust Protection Oil on page 39.

  • Page 42: Engine Maintenance

    WE235 Service and Maintenance Log Splitter 9.5 Engine Maintenance 9.5.2 Clean the Engine Air Filter For full engine maintenance information, see the engine IMPORTANT! If you operate the engine without an air filter, manufacturer's manual. or with a damaged air filter, dirt can get into the engine.

  • Page 43: Hydraulic System Maintenance

    WE235 Service and Maintenance Log Splitter 9.6 Hydraulic System Maintenance • Immediately replace a hydraulic hose or tube that shows signs of swelling, wear, leaks, or damage. A swollen, worn, damaged, or leaking hose or tube can burst and cause a The hydraulic system provides pressurized hydraulic fluid to hazardous and unsafe condition.

  • Page 44: Tire Maintenance

    WE235 Service and Maintenance Log Splitter 9.7 Tire Maintenance 1. Set the machine to a safe condition. For instructions, see Safe Condition on page 9. 2. Put a container below the fluid filter. WARNING! Make sure that the container is sufficient to collect and...

  • Page 45: Troubleshooting

    If you find a problem that is difficult to solve, even after reading Service and Maintenance Safety on page 38. this information, contact your local dealer or Wallenstein Set the machine to a safe condition. Equipment. When you contact someone, please have the serial number of your product available.

  • Page 46: Specifications

    WE235 Specifications Log Splitter 11. Specifications For engine specifications, see the engine manufacturer's 11.2.2 Hydraulic Fluid Flow Rate documentation. Hydraulic fluid flow rate is less than 11 US gpm (42 Lpm). For available accessories, go to WallensteinEquipment.com. 11.2.3 Hydraulic System Relief Pressure Hydraulic system relief pressure is 3200 psi (221 bar).

  • Page 47: Bolt Torque

    WE235 Specifications Log Splitter 11.3 Bolt Torque Imperial Bolt Torque Specifications Torque IMPORTANT! If you replace hardware, use fasteners Bolt of the same grade. SAE Gr. 2 SAE Gr. 5 SAE Gr. 8 Diameter lbf•ft N•m lbf•ft N•m lbf•ft N•m...

  • Page 48: Hydraulic Fitting Torque

    WE235 Specifications Log Splitter 11.4 Hydraulic Fitting Torque Hydraulic Fitting Torque Specifications Tighten flare-type tube fittings: Hex size Tube size across Flats from finger 1. Check the flare and flare seat for defects that might flats Torque tight cause leaks.

  • Page 49: Limited Warranty

    Warranty Log Splitter 12. Warranty LIMITED WARRANTY Wallenstein products are warranted to be free of defects in materials and workmanship under normal use and service, for a period of Five Years for Consumer Use Two Years for Commercial/Rental Use from the date of purchase, when operated and maintained in accordance with the opera�ng and maintenance instruc�ons supplied with the unit.

  • Page 50: Index

    WE235 Index Log Splitter 13. Index Air filter, clean 42 Familiarization  17 Filter, change hydraulic  43 Fluid, hydraulic Add  28 Ball-mount hitch  34 Change  43 Connect to  35 Level, check  27 Disconnect from  35...
  • Page 51 WE235 Index Log Splitter Labels Safe condition  9 Information labels  6 Safety  7 Maintenance labels  6 Engine maintenance  42 Mandatory action labels  6 Engine operation 24 Product labels  6 Equipment guidelines  9...
  • Page 52 WE235 Index Log Splitter Tire Maintenance  44 Specifications 46 Torque specifications Bolts  47 Hydraulic fittings  48 Total weight  46 Training Operator, new  17 Record form  10 Safety 9 Transport  34 Prepare the machine  34...
  • Page 53 WE235 Index Log Splitter...
